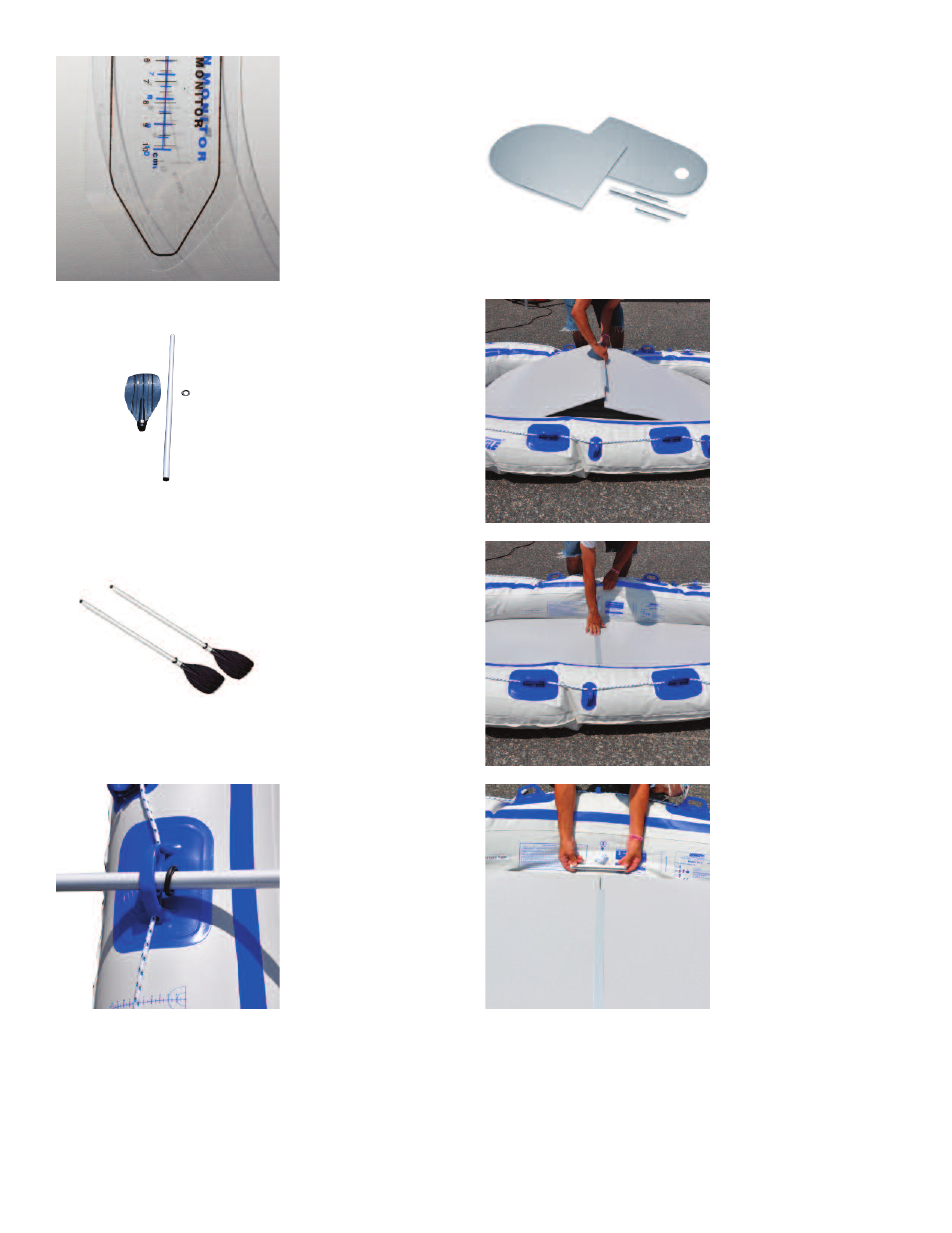

You can safely inflate
one centimeter beyond
the diagram. Once fully
inflated you should be
able to indent your
thumb into the boat
about ½ to ¾ of an
inch. If you are using
floorboards, only inflate
the main chambers 75%
full until they’re installed
and then finish inflation.
AB25-3 Oar Set
The AB25-3 Oar is 56”
long and easily rows
your Sea Eagle 8 or 9.
Each oar includes an
ABS blade, aluminum
shaft and drip ring.
Assemble the AB25-3
by sliding the drip ring
over the shaft and then
connect the shaft to the
blade. Tighten the ring
at the bottom of the
blade so that its secure
on the shaft. We always
recommend testing the
connection of the blade
and shaft on dry land
rather than in the water.
To row your boat using
the AB-253 oar set, use
the blue carry handles
as oar locks. Although
the handle is a snug fit
for the shaft of the oar,
you can keep the drip
ring on the inside of the
boat to act as a stopper
and keeping the shaft in
place.
Floorboards
(OPTIONAL)
The floorboards for our
Motormount Boats are
comprised of marine
plywood (two pieces)
and an aluminum three
piece floorboard strut
that form an “H” when
installed.
Place both the bow and
stern (identified by the
cut out hole) floorboard
pieces inside the boat
so that they overlap in
the middle. Next, lift the
floorboard pieces at the
center and insert the
middle section of the
“H” strut.
With the strut connected
to both floorboard
pieces force the boards
down into the boat until
they are secure.
Once the floorboards
are flattened, continue
to install the side struts
on each side of the
floorboards.
