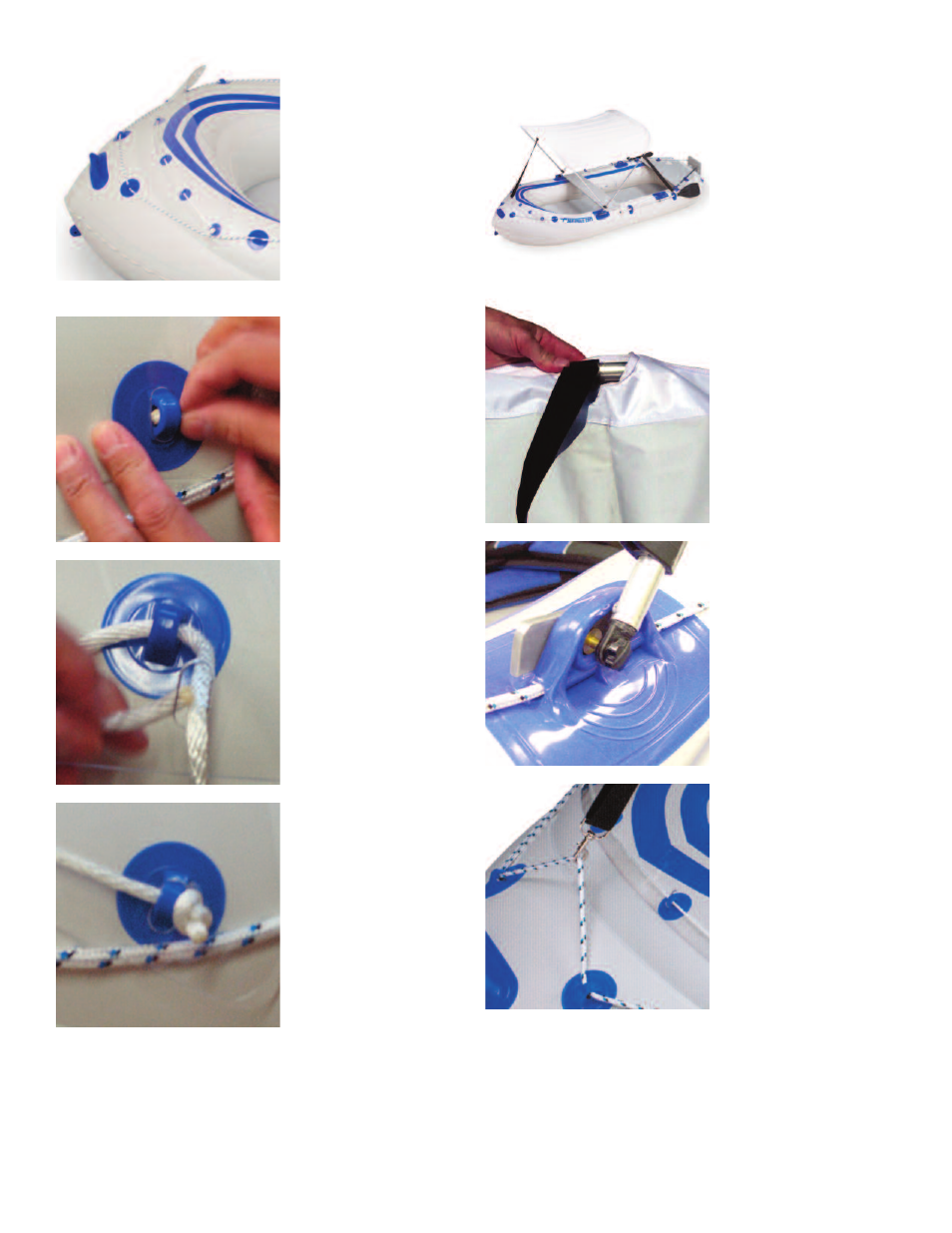

Windshield
(OPTIONAL)
A durable and flexible
Plexiglass windshield
that is great for deflect-
ing water on choppy
days. Before installing,
remove the protective
film from each side of
the windshield and tie a
knot at one end of the
included rope which is
used to secure it.
The windshield is easy
to install and does not
require the boat to be
deflated. Start at either
end in the bow of the
boat and locate six
small grommets. Place
the windshield over the
the grommet and run
the rope through it to
press the windshield
against the boat.
Next, run the rope
through the opening on
the windshield, then
through the grommet on
the boat and then back
through the opening on
the windshield. Pull the
rope and press down on
the windshield until the
opening is firmly over
the grommet.
Repeat these steps for
all remaining grommets
and then knot the other
end of the rope.
Canopy
(OPTIONAL)
Keeps you cool and
protected from the
harmful UV rays of the
sun or keeps you dry in
the rain. Easily folds
down and out of the
way.
Begin by feeding the
tubing through the
canopy canvas. When
you reach the opening
in the middle at the top
of the canvas, attach
the bow strap over the
aluminum tube. With the
strap attached, continue
to feed the tubing
through the canvas.
Connect the tubing
using the push pins and
then thread the long
screw through the plate
and then attach the
brass insert. Push the
screw through the carry
handle and into the end
of the rod on the canopy
and secure it using the
knurled nut.
Clip the two rear straps
to the rope in the back
of the boat and then pull
the front stap foward to
the rope in the bow of
the boat and clip it as
well. You can tighten the
canopy straps so that
the canopy canvas is
tightly fitted
9
