CHAPTER 3 CONTROLS
3.2 REMOTE CONTROL
The buttons on the Remote Control operate in the same manner as on a conventional DVR
remote. Some buttons have multiple functions depending on which menu is being accessed.

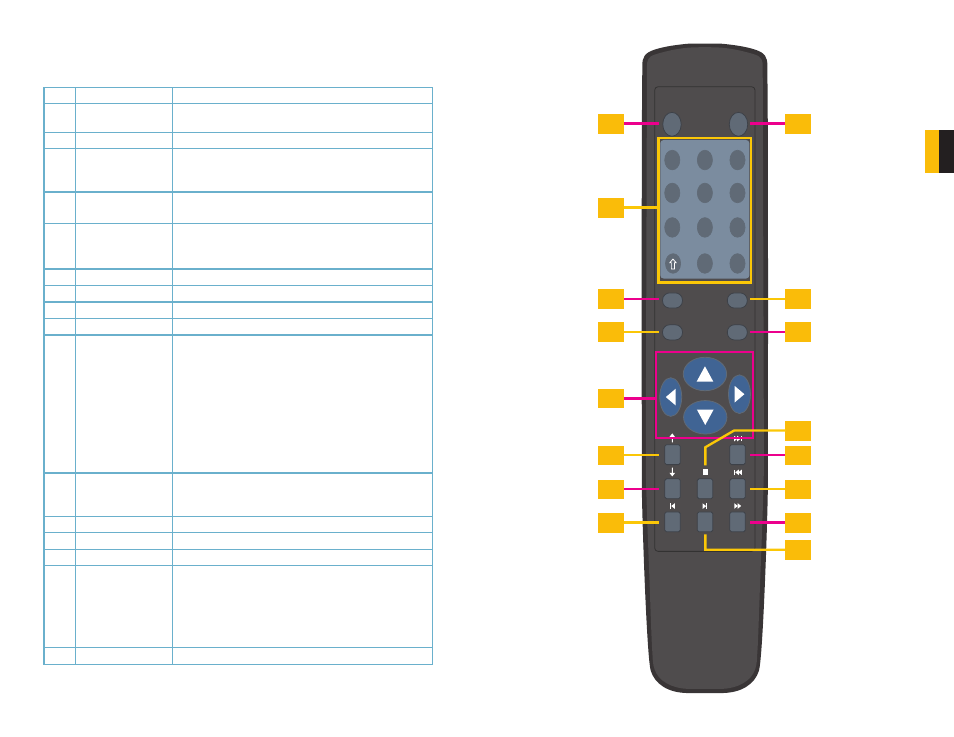

PICTURE 3-3
Num Name Function
1 Multiple-window
switch Switch between multiple-window and one-window view
2 0-9 number key Input password, channel or switch channel.
3 Record Start or stop recording manually
In record interface, working with the direction buttons to
select the channel to record
4 Enter /Menu key Go to default button
Go to the menu
5 Direction keys Switch current activated control, go to left or right.
In playback mode, it is to control the playback process bar.
Aux function(such as switch the PTZ menu)
6 Previous In playback mode, playback the previous video.
7 Next In playback mode, playback the next video.
8 Slow Play Multiple slow play speeds or normal playback.
9 Address Click to input device serial number
10 Function/Aux Key In 1-channel monitor mode: pop up assistant function: PTZ
control and Video color
Switch the PTZ control menu in PTZ control interface.
In motion detection interface, functions as a directional key
to complete setup
Backspace: Press for 1.5 seconds to clear all contents in
current text box.
In HDD information interface, used to switch between HDD
record time and other information
Special combined operation in some menus.
11 Escape/Cancel Go back to previous menu or cancel current operation
(close upper interface or control)
In playback mode, it goes to real-time monitor mode.
12 Stop In playback mode, stop current playback.
13 Forward Various forward speeds and normal speed playback.
14 Backward Various backward speeds and normal speed playback.
15 Play/Pause Reverse playback or paused mode, click this button to
realize normal playback.
In normal playback click this button to pause or resume
playback.
In real-time monitor mode, click this button to enter video
search menu.
16 Fast Forward Various fast speeds and normal playback.
