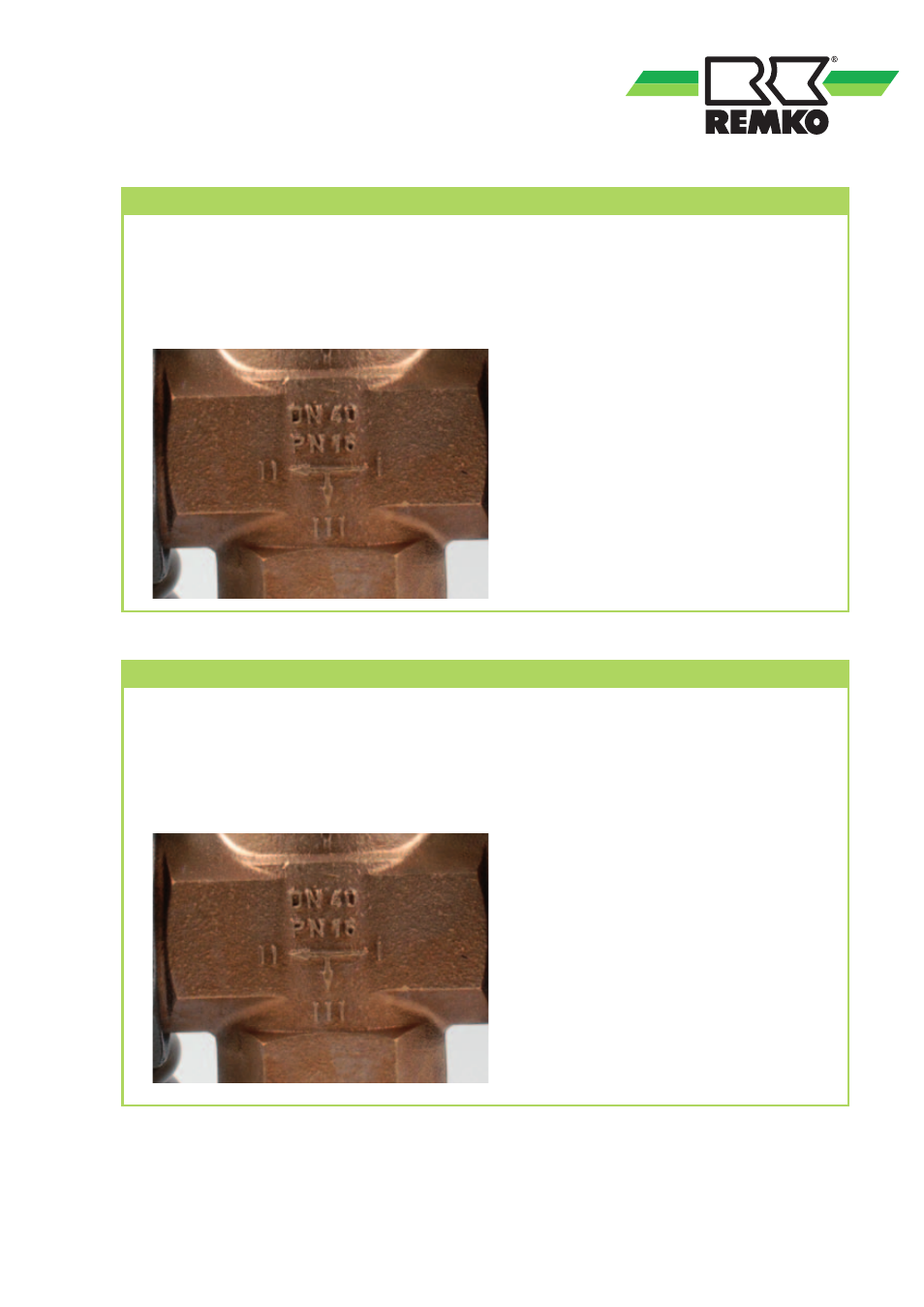

Heating mode flow direction
... after actuation: Flow direction: I<->III
Valve in position I<->III
(Heat pump in hot water or cooling mode)
Initial situation (resting position): Flow direction: I<->II
Valve in position I<->II
(Heat pump in heating mode)
Hot water charging mode or cooling mode flow direction
Legend for REMKO hydraulic diagram
Position AB = I
Position B = II
Position A = III
Legend for REMKO hydraulic diagram
Position AB = I
Position B = II
Position A = III
