18 About Your Device

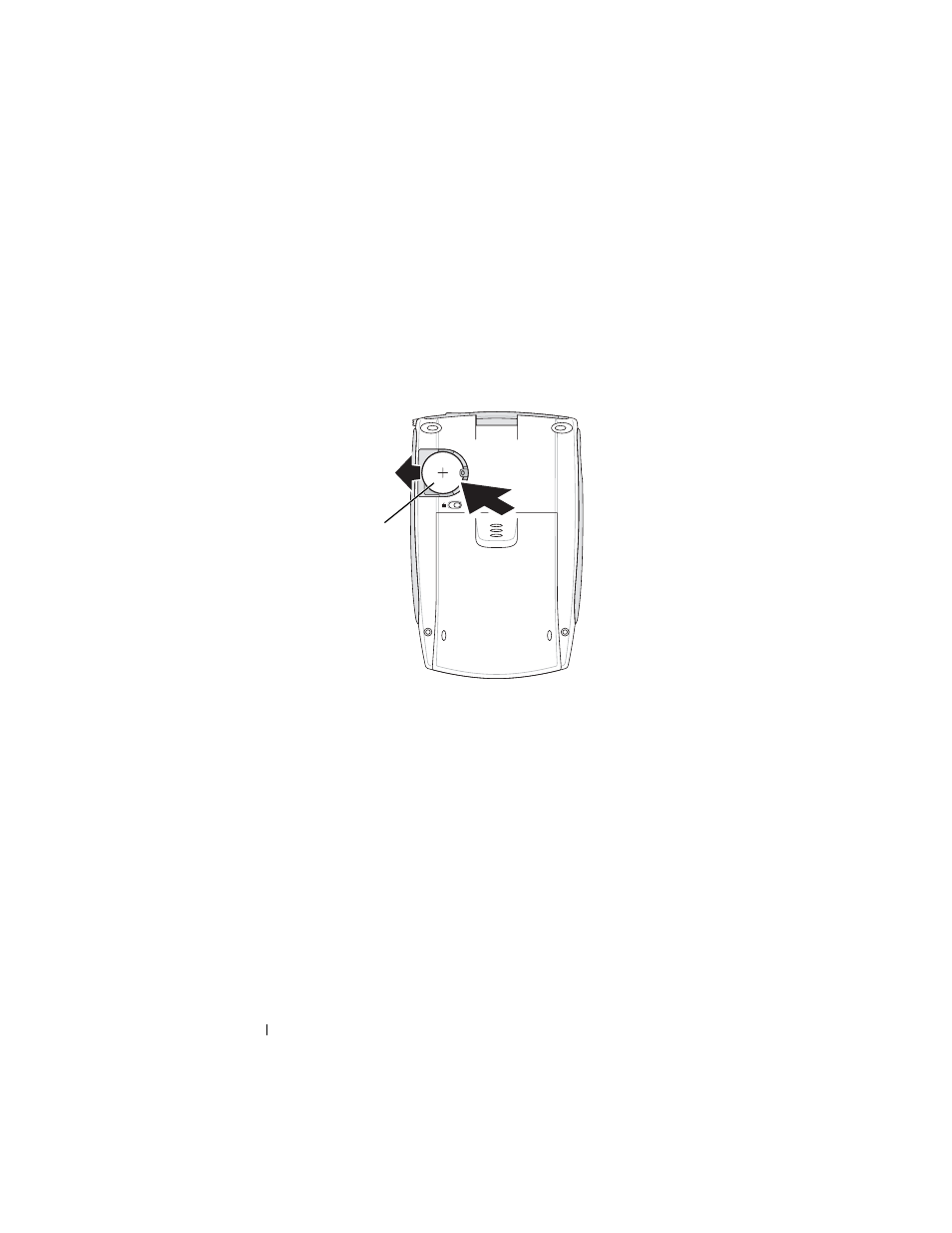

To remove the backup battery:
1 Insert the tip of the stylus into the backup battery release.
2 Slide the release to the left and remove the cover.
3 With your finger tip, gently press the right side of the battery to tilt
up the left side of the battery.
4 Remove the battery.
Charging the Main Battery
Use one of the following options to charge the main battery:
• Connect the AC adapter directly to the device and to an electrical
outlet.
• Connect the AC adapter to the cradle, and insert the device into the
cradle. See "Using the Cradle" on page 19 for more information.
backup
battery
