SPECIFICATIONS

Type of input power required

Single-Phase 220 VAC, 3 Amperes, 50/60 Hertz.

from power source.

Duty Cycle.

100%

Wire feed speed

10 to 250 IPM

Wire size range

.023 (.6mm) to 1/16 in. (1.6mm)

Dimensions

Length: 20 in. (508mm) x Width: 10 in. (254mm) x Height 11 in. (279mm)

Weight

PRO II TIG Net: 32 lbs. (14.5 Kg.)

Ship: 34 lbs. (15.4 Kg.)

WARRANTY

LIMITED WARRANTY - Subject to the terms and conditions hereof, PROFAX, Pearland, TX warrants its products to be
free from defects in workmanship and material at the time of delivery by PROFAX.

PROFAX will honor warranty claims on products as a result of failure from a defect for a time period as listed below for
the particular product line, from date of sale to the original user.

Consumable products manufactured by PROFAX — 1 year
Resale consumable products — Original Manufacturer's Warranty
Feed Pen, Mig Guns, Flux Cored Guns, Spool Guns, Arc Gouging Torches, CO Heaters — 90 days

Spool Gun Control Boxes and Wire Feeders — 3 year
Welding Machines — 3 year

Upon the return of the merchandise at user's expense, PROFAX reserves the right to either repair or replace as
necessary.

This is the only warranty either expressed or implied covering our products.

MAILING

SHIPPING

P.O. Box 898

1603 North Main

Pearland, TX 77588-0898

Pearland, TX 77581-2803

NOTE:

Read and understand the safety information in Section 1 before attempting installation.

CAUTION!

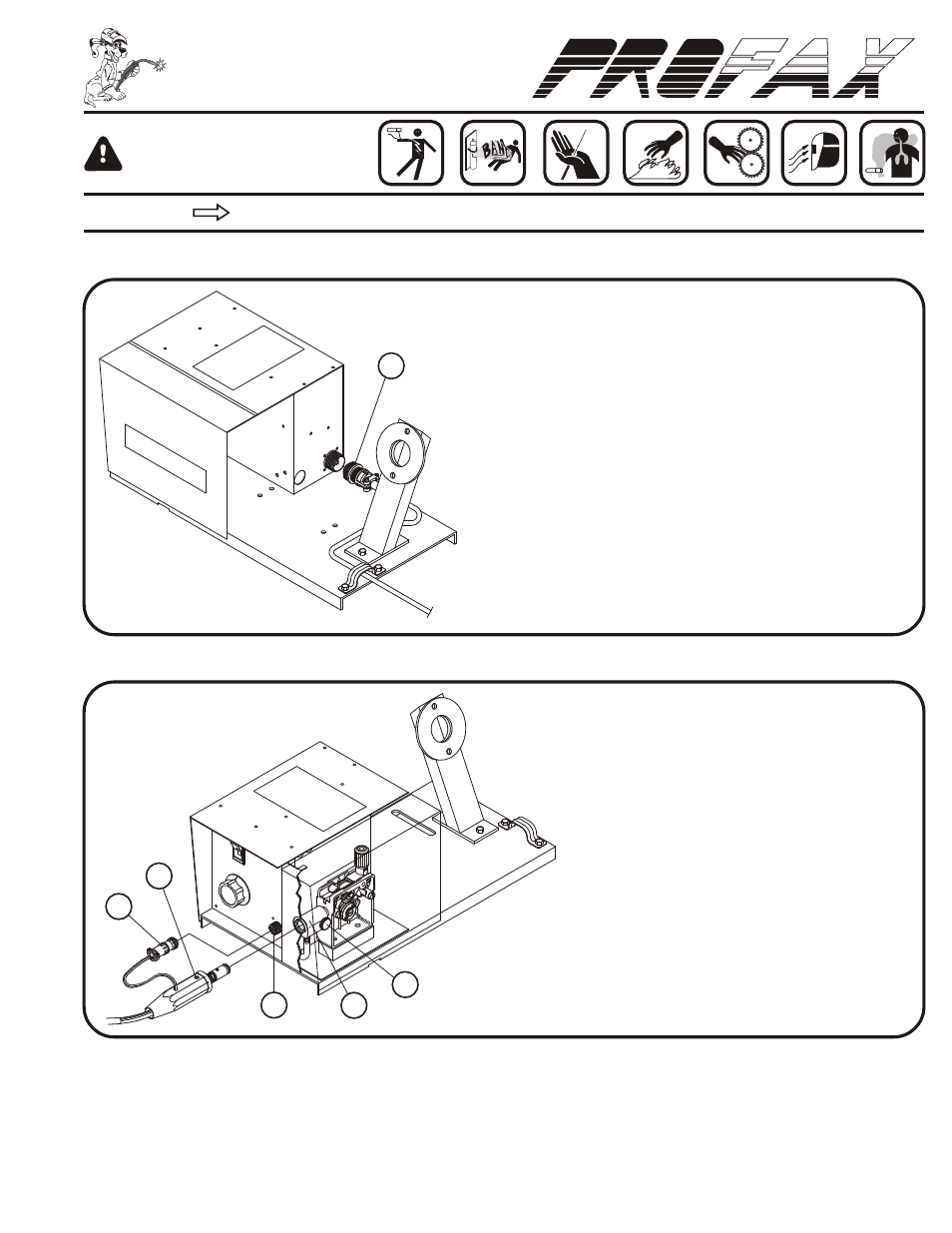

CONNECTING THE WIRE FEEDER

CONNECTING THE FEED PEN ASSEMBLY

Note: Route all cables and hoses through cable

clamp.

1. Attach the power cord to RC1 receptacle.
Then connect to a 115 VAC source.

1. Pen Securing Thumbscrew
2. Trigger Plug
3. Connector Plug
4. Adapter Block
5. Trigger Plug Receptacle

Loosen the feed pen securing thumbscrew on the side of the adapter block. Insert the feed pen connector plug fully into the
adapter block. Secure by tightening the feed pen securing thumbscrew. Connect the trigger plug to the trigger plug receptacle
by aligning the plug until it inserts into the receptacle then turning the plug collar to the right to lock in place.
