Profax PRO II TIG 220V - Manual (Page 14)

®

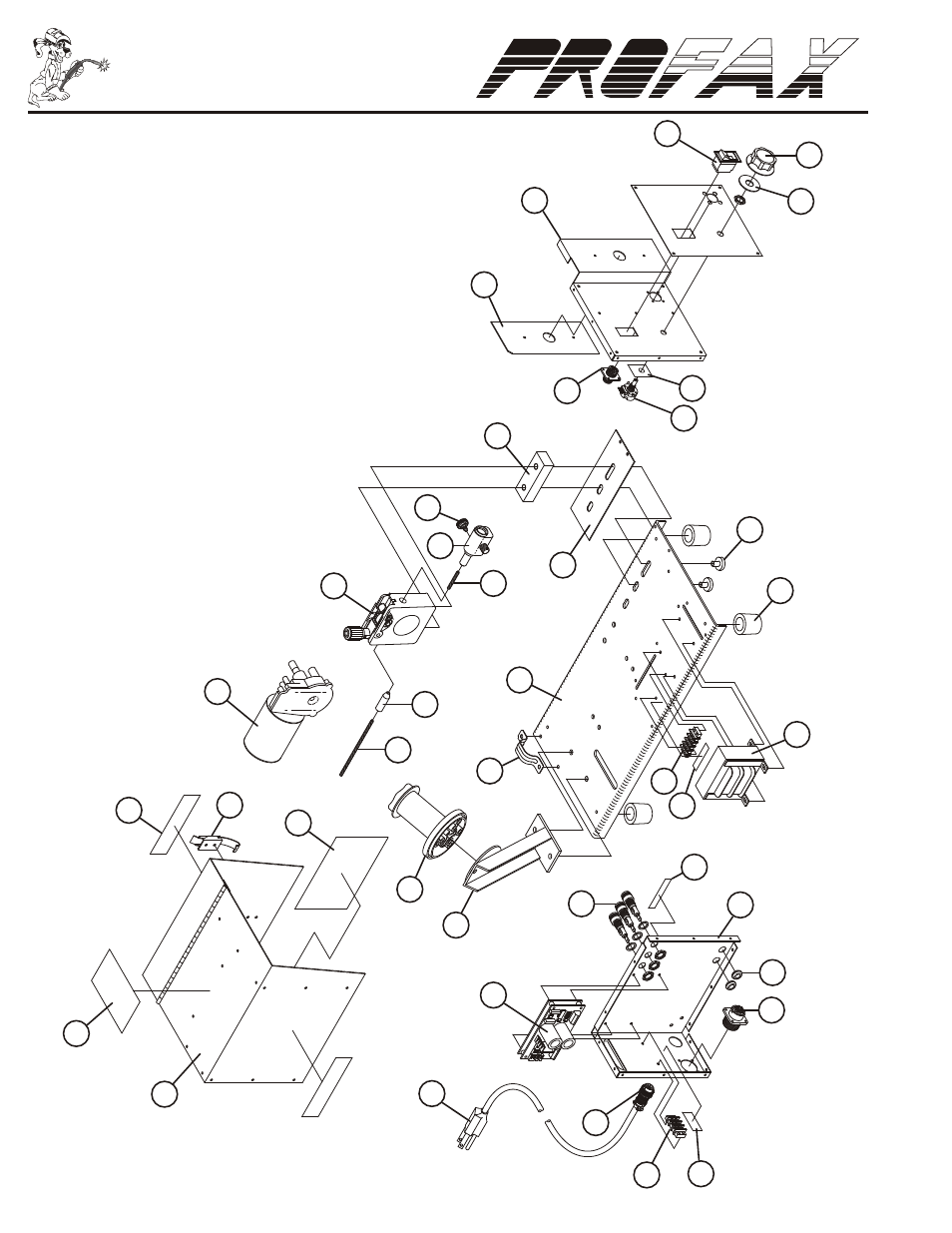

Parts
®
Parts
13 12
30
18
19
31
34
32
7
10
43
33
50
6 39
60 8
57
56
16
3
24
17
22
13
12
48
44
46
53
52
20
49
38
5
21
1
9
58
55
54
59
14
1 9185 M MOTOR, 24VDC 160 RPM 1
3 9004 WIRE DRIVE ASSY. 2 ROLL (see figure A) 1
5 9012 BASE 1
6 9014 DIVIDER PANEL 1
7 9016 FRONT PANEL 1
8 9013 HINGED COVER 1
9 9015 COVER HASP 1
10 9160 FACEPLATE 1
12 9018 SPOOL SUPPORT 1
13 9017 SPINDLE ASSY. 1
14 9162 PC BOARD 1
15 8999 TERMINAL TOOL, PC Board (Not Shown) 1
16 9007 INLET GUIDE HOLDER 1
17 INLET GUIDE LINER (see DRIVE ROLL, KIT and GUIDE chart ) 1
18 9028 R2 POTENTIOMETER, 10K, 1T, 2W 1
19 9029 INSULATOR, potentiometer 1
20 9008 DRIVE MOUNT INSULATOR 1
21 9006 ADAPTER BLOCK 1
22 LINER, adapter block (see DRIVE ROLL, KIT and GUIDE chart ) 1
24 9171 THUMB SCREW, adapter block 1
29 9022 SW1 POWER SWITCH 1
30 9030 KNOB, potentiometer 1
31 9031 BRAKE, felt 1
32 9032 OUTLET INSULATOR 1
33 7123 RC1 POWER RECEPTACLE, amphenol S12021-3 1
34 9034 RC2 TRIGGER RECEPTACLE, amp 1
35 9035 TERMINAL, trigger receptacle (Not Shown) 2
38 9024 FOOT, rubber 4
39 6100 FUSE HOLDER 3
40 9038 F1 FUSE, 7 amp, 250V fast acting (Not Shown) 1
41 9039 F2 FUSE, 7 amp, 250V Slo-Blo (Not Shown) 1
42 9040 F3 FUSE, 3 amp, 250V Slo-Blo (Not Shown) 1
43 9041 TS1 TERMINAL STRIP, 3 pole 1
44 9042 TS2 TERMINAL STRIP, 4 pole 1
45 9043 JUMPER, terminal strip (Not Shown) 3
46 9025 SCREW INSULATOR, wire drive 2
48 9009 CLAMP, cable 1
49 9023 SPACER BLOCK 1
50 9027 GROMMET, rubber 2
52 7121 T2 TRANSFORMER, 220/24VAC 100VA 1
53 9047 LABEL, TS2 1
54 9048 LABEL, TS1 1
55 9049 LABEL, fuses 1
56 9161 LABEL, schematic 1
57 9142 LABEL, PROFAX 2
58 9036 LABEL, safety 1
59 9443 5 PIN PLUG, only S12020-7 1
60 7104 5' POWER CORD, complete 1
PART ELEC. QTY.
ITEM NO. MKGS. DESCRIPTION PRO II
(S
ee
F
ig
ur
e
A
)
® ®
