ITEM PARTS LIST PRO II TIG WIRE FEED PEN ASSEMBLY P/N FP-8
NO. PART NO. DESCRIPTION QTY.
1 407839-3 Tip Tappered, .030 1
407839-6 Tip Tappered, .035
407839-9 Tip Tappered, .045
407839-12 Tip Tappered, 3/64"-1/16"
2 9486 Tip Adapter 1
3 9489 Nipple 1
4 9158 Clamp 2
5 SW1 Bulb Switch 1
6 9493 One Piece Switch Handle 1
7 EPS20-½ 2" x ½" Heat Shrink Tubing 6
8 9490 Jacket 8' 1
9 05252 Adapter Block Insulator 1
10 1R-P Plug 1
11 9492 18/2 Flat Cord 9' 1
12 079878 Trigger Plug 1
13 9487 Adapter Block 1
14 9488 Feeder Adapter 1
15 9491 Liner .052 1
®
Parts
®
Parts
15 14

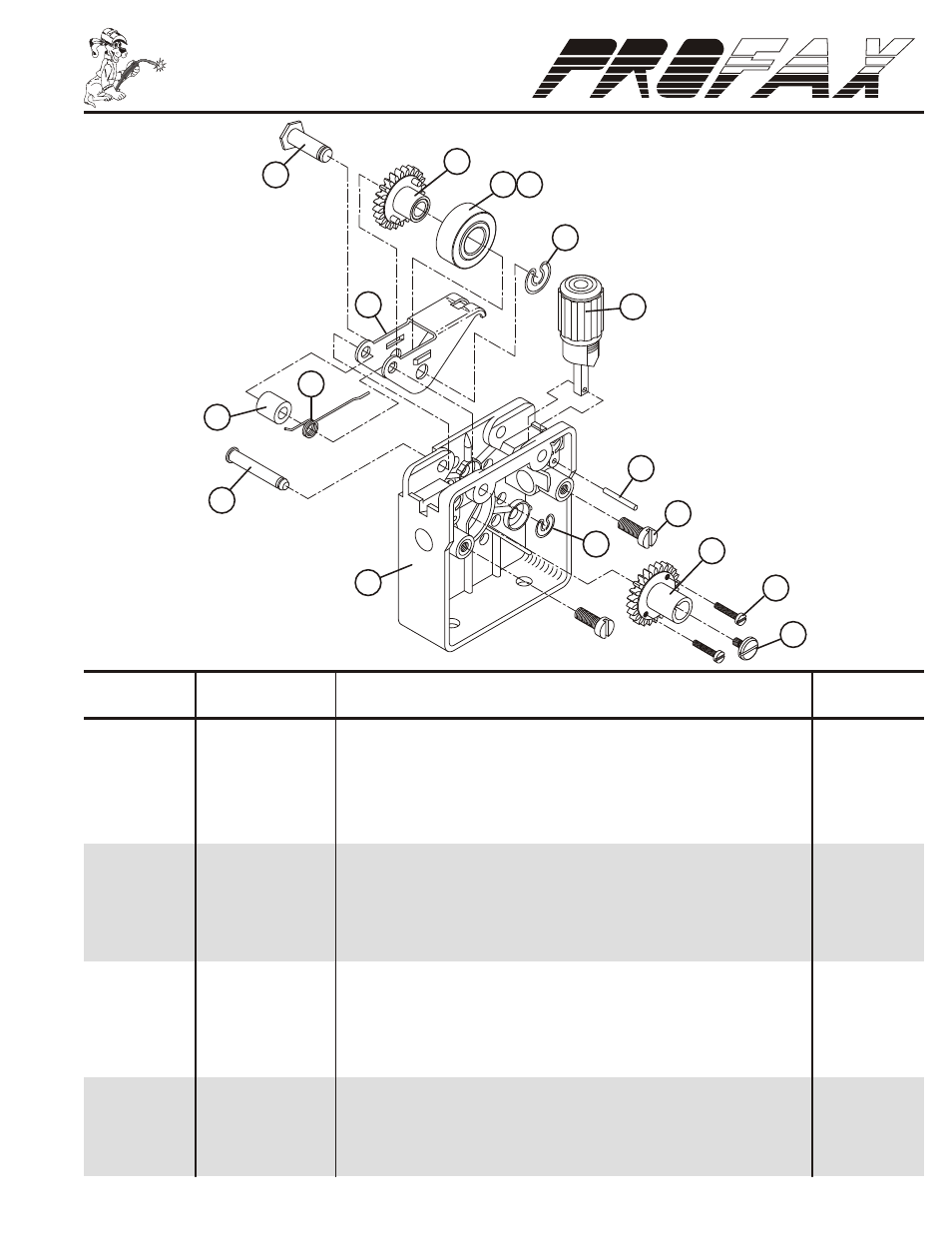

FIGURE A PARTS LIST PRO II WIRE DRIVE 2 ROLL ASSEMBLY P/N 9004
ITEM PART NO. DESCRIPTION QTY.
1 9143 WIRE DRIVE HOUSING 1
2 9144 SCREW, guide retention, and motor mounting 5
3 9145 PRESSURE ARM 1
4 9134 AXLE, pressure roll 1
5 9136 GEAR, pressure roll 1
6 9052 PRESSURE ROLL, flat smooth 1
7 9053 PRESSURE ROLL, knurled ( optional ) 1
8 9135 CIRCLE CLIP, pressure roll axle 1
9 9146 PIVOT PIN, pressure arm 1
10 9147 SPACER 1
11 9148 SPRING, lift 1
12 9149 CIRCLE CLIP, pressure arm pivot pin 1
13 9150 TENSION AJUSTER 1
14 9151 RETAINING PIN, tension adjuster 1
15 9129 GEAR, drive 1
16 9130 SCREW, drive roll retention 2
17 9126 SCREW, drive gear retention 1
18 9128 KEY, motor shaft (Not Shown) 1
19 9152 SNAP RING, motor shaft (Not Shown) 1
15
4
12
17
16
15
2
14
3
11
10
9
1
13
8
6
5
14
10
9
4
13
11
12
8
7
6
5
4
3
2
1
7
Figure A
® ®
