PARTS IDENTIFICATION
1.
Main Unit
2.
Touch panel / LCD panel
3.
Power indicator
4.
Gen 5 base stand
5.
Screw holes for optional rear top mount kit such as PD-310 or
PD-2604 or LM-2312 or LM-8035
6.
HDD cover
7.
Power switch
8.
Brightness adjust push button “+”
9.
Brightness adjust push button “-”
10.
USB ports
11.
Base stand
12.
Compression lock for base stand cover
13.
Cable exit
14.
Cable groove
15.
Cable exit
16.
Cable holder
17.
Bottom plate
18.
Cable passage in bottom plate
19.
Rubber feet with bottom plate fixing screw

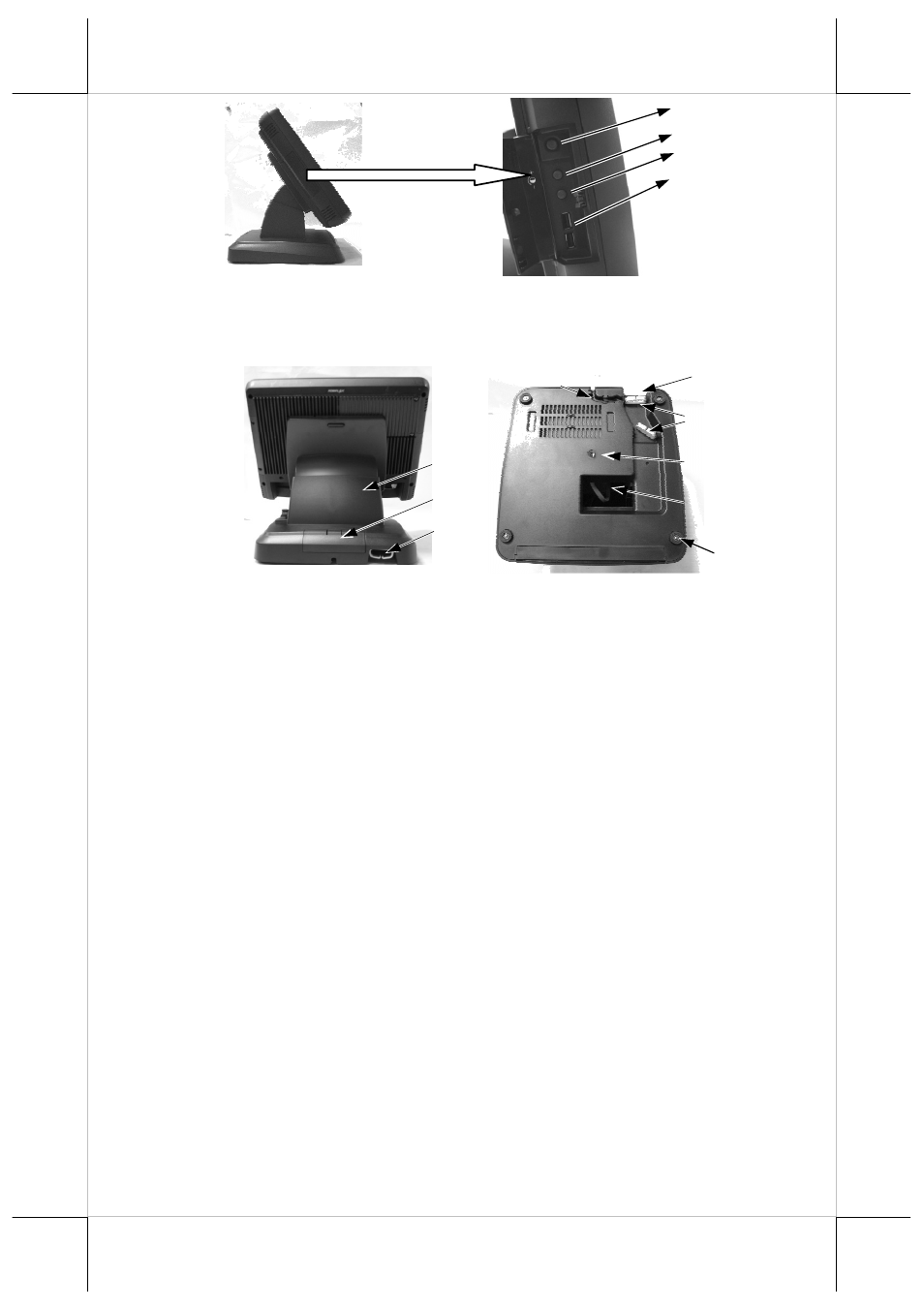

Base Stand and Bottom View
Inside touch open door
7
8
9
10
15
16
17
14
18
19
11
12
13
