☆ Basic Operation:
●

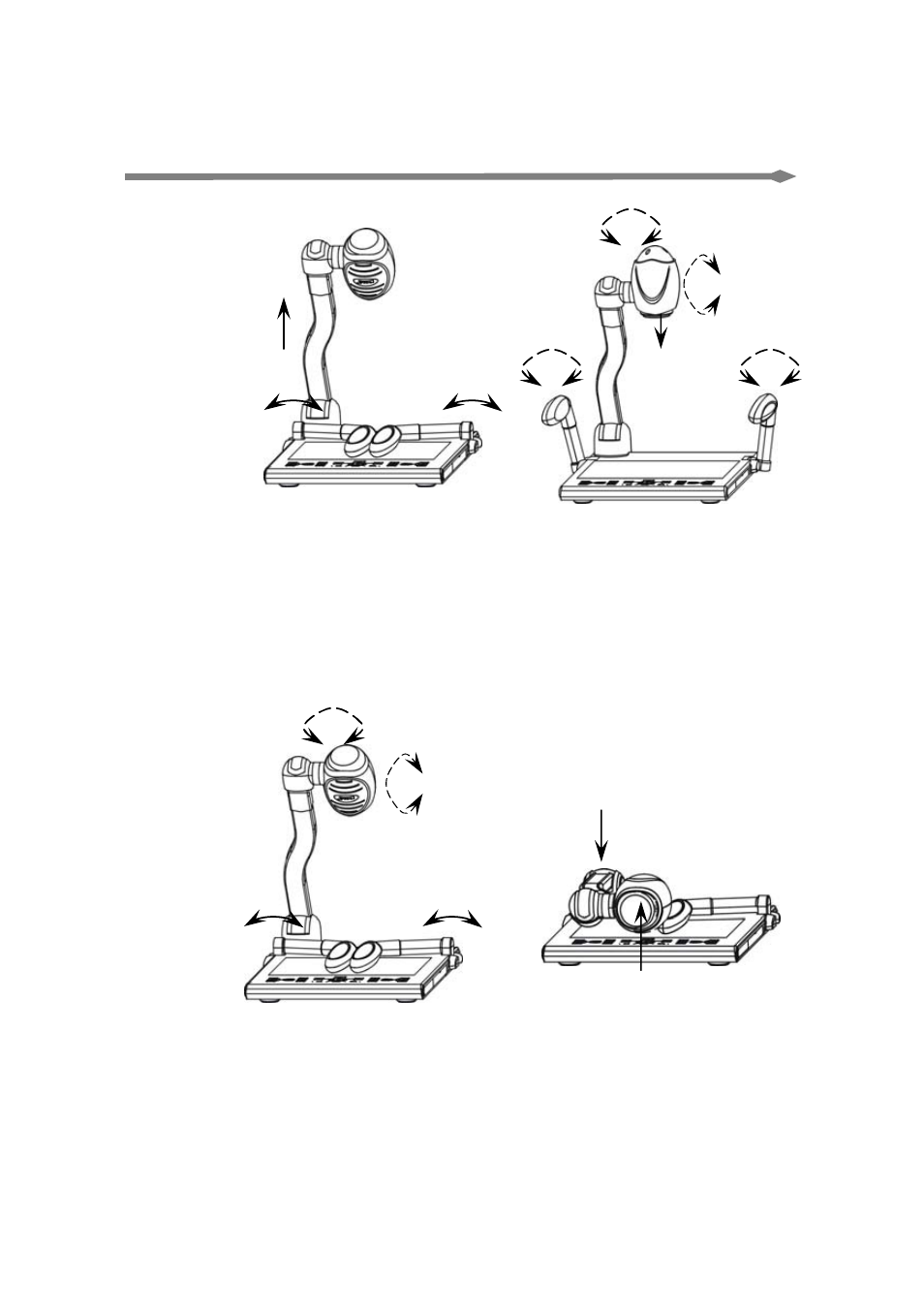

Unfold Steps:
- 8 -
1. Lift the pole; 2. Lift assitant lamp to the left; 3. Lift assistant
lamp to the right; 4. adjust CCD’s angle vertically; 5. adjust CCD’s
angle horizonally; 6. adjust assitant lamps’ angle properly; 7. take
CCD’s cover off (Note:Pls rotate it to the right, don’t pull with
eavy strength). h
●
Fold Steps:
1. Press left assitant lamp arm down; 2. press the right lamp
arm down; 3. adjust CCD outershell horizonally to parallel with the
pole; 4. adjust CCD outershell vertically to parallel with the pole; 5.
put the pole down; 6. put CCD cover on (Note: don’t rotate, cover
it directly).
1
2 3
4
5
6 6
7
1 2
4
3
5
6
