Start-up & commissioning, Technical guide mhgrvii controller 8, General – Orion System MHGRV II User Manual

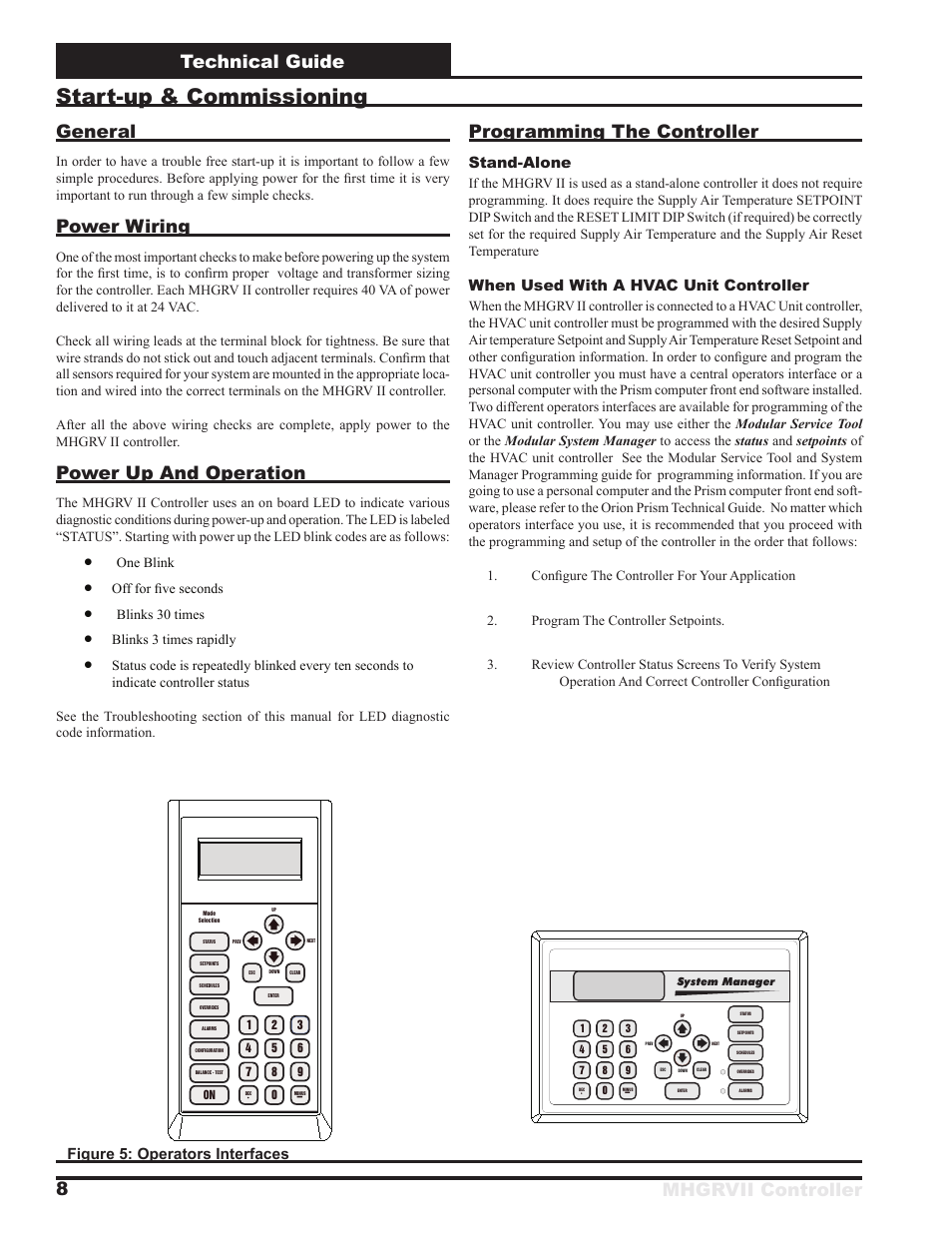

Page 8: Power wiring, Power up and operation, Programming the controller, Stand-alone, When used with a hvac unit controller, Figure 5: operators interfaces
