Connecting the system for DSD
Most owners will use the Scarlatti Clock to clock a Scarlatti stack at 44.1kHz.
• If necessary, use the
FREQUENCY button to set the Clock to 44.1kHz .
• Connect one of the Clock outputs to the Word Clock inputs of the transport and the DAC.
• Connect a 1394 cable between the DAC and the transport. Select the DAC’s
1394 input.
• The transport will automatically slave to the Clock and display
Sync .
• Use the DAC’s
SYNC button to set it to WClk .
• Connect the DAC’s
Analogue Outputs to a power amplifier or preamplifier.
• Set the DAC
Volume control to a suitable level and play a disc.
• Set the Clock’s
DITHER feature on or off as you prefer.
REF. IN WORDCLOCK OUTPUTS
1 2 3 4 5 6 7 8
1394
SUC
50/60 Hz, 30W
FUSE
T 500mA L
~
ANALOGUE OUTPUTS
LEFT RIGHT RIGHT
LEFT
AES 1 AES 2
RCA 1
RCA 2
SPDIF
DIGITAL INPUTS TOSLINK CH 1 CH 2
BNC
IN OUT
DSD/SDIF
WCLK
1394
SUC
50/60 Hz, 50W
FUSE
T 500mA L
~
Scarlatti Transport
Scarlatti Clock
Scarlatti DAC
L L R R
Balanced - or - Unbalanced
Analogue Outputs
To pre- or power amplifier inputs
DIGITAL
OUTPUTS
AES 1 RCA BNC TOSLINK
CH1 CH2 SUC
1394
IN ---- WORDCLOCK --- OUT
SDIF
AES 2

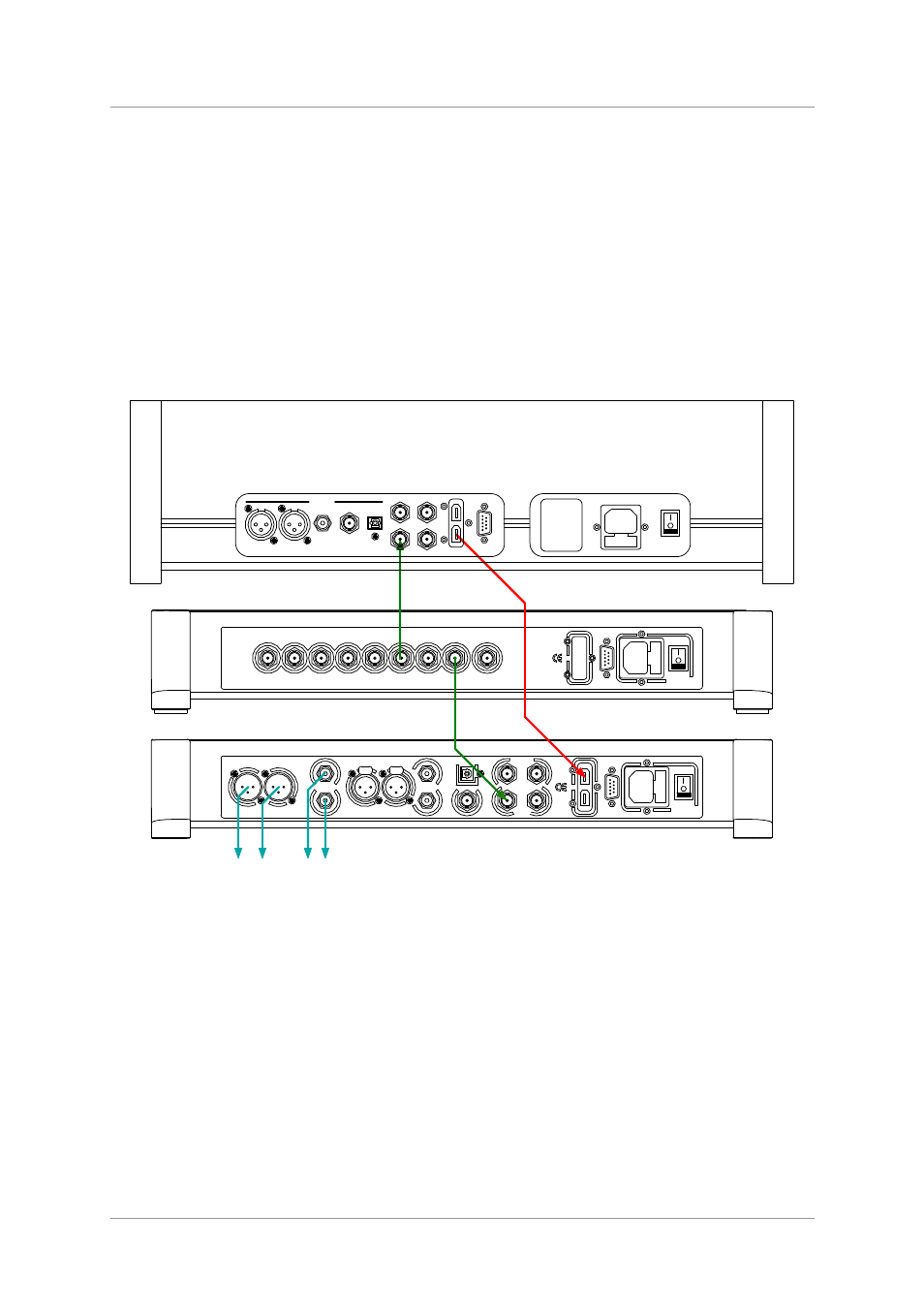

Figure 1 – Using the Scarlatti Transport, DAC and Clock together
