Electrical characteristics curves (con.) – Delta Electronics Delphi Series DNS User Manual
Page 5
DS_DNS04SIP06A_07172008
5

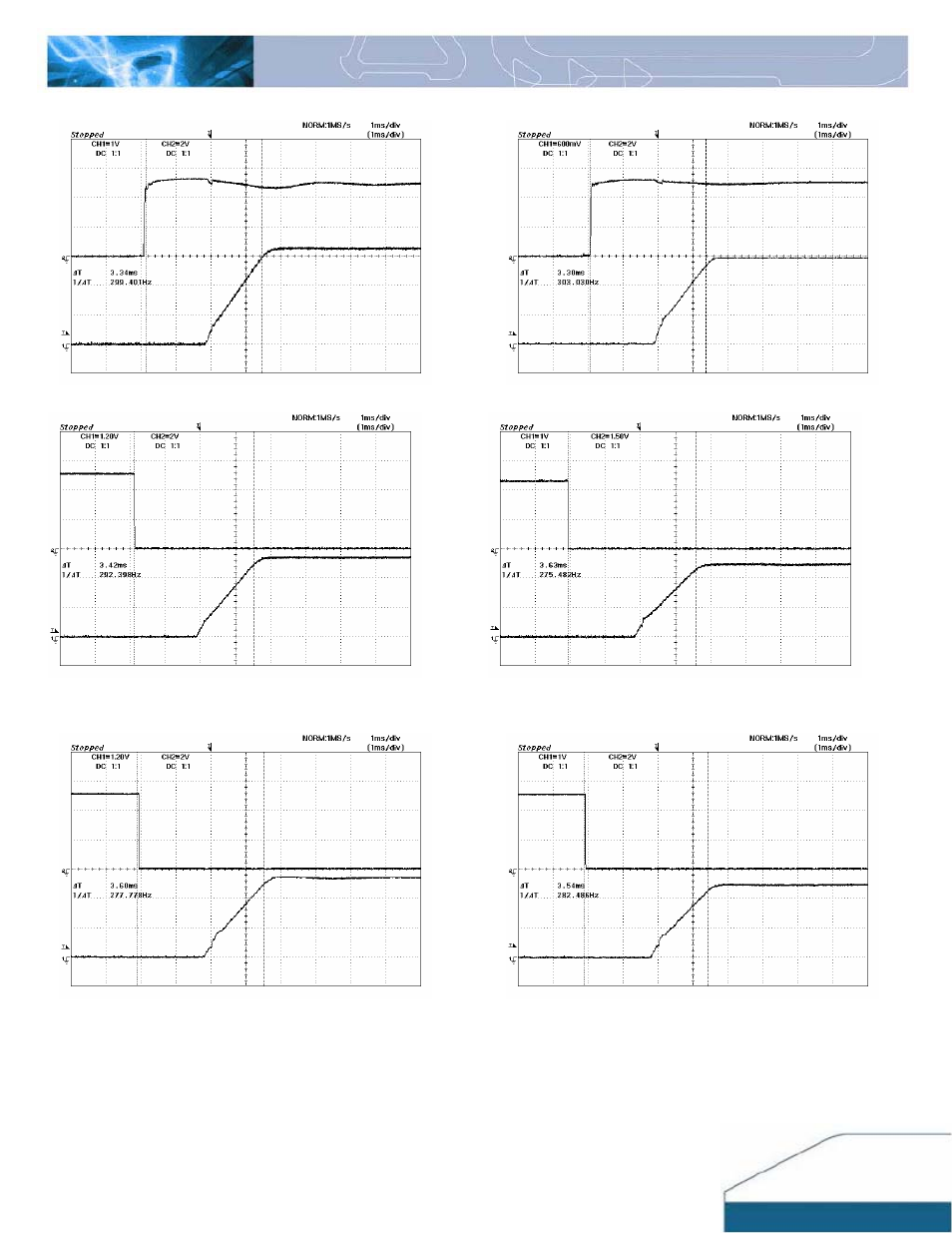

ELECTRICAL CHARACTERISTICS CURVES (CON.)
Figure 13:
Turn on delay time at 5Vin, 3.3V/6A out
Figure 14:
Turn on delay time at 5Vin, 1.8V/6A out
Figure 15:
Turn on delay time at remote turn on 5Vin, 3.3V/16A
out
Figure 16:
Turn on delay time at remote turn on 3.3Vin, 2.5V/16A
out
Figure 17:
Turn on delay time at remote turn on with external
capacitors (Co= 5000 µF) 5Vin, 3.3V/16A out
Figure 18:
Turn on delay time at remote turn on with external
capacitors (Co= 5000 µF) 3.3Vin, 2.5V/16A out
