Cobramatic
®
Owner’s Manual - page 22
005-0316

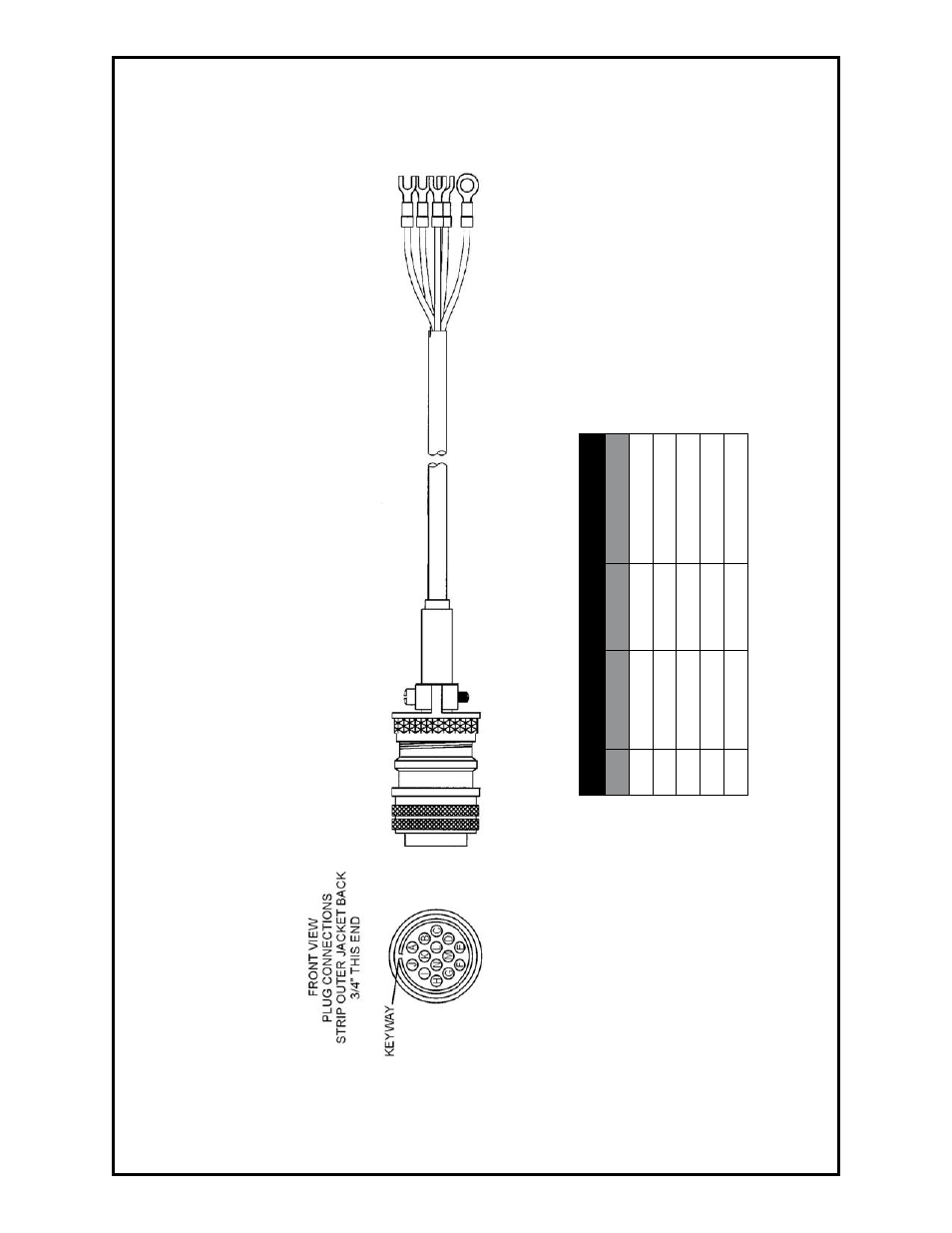

8ft., 115 VAC Miller Interface Control Cable
005-0658
25ft., 115 VAC Miller Interface Control Cable
NOTE: Posa Start lead from Cobramatic® must be attached to working (welding) ground.
W
ire List
Pin
W
ire Color
T
erminal
Function
A
Red
J6-3
Closing Contact
B
Orange
J6-4
Closing Contact
G
White
J5-1
1
15V Neutral
I
Black
J5-2
1
15V Hot
K
Green
Chassis
Ground
