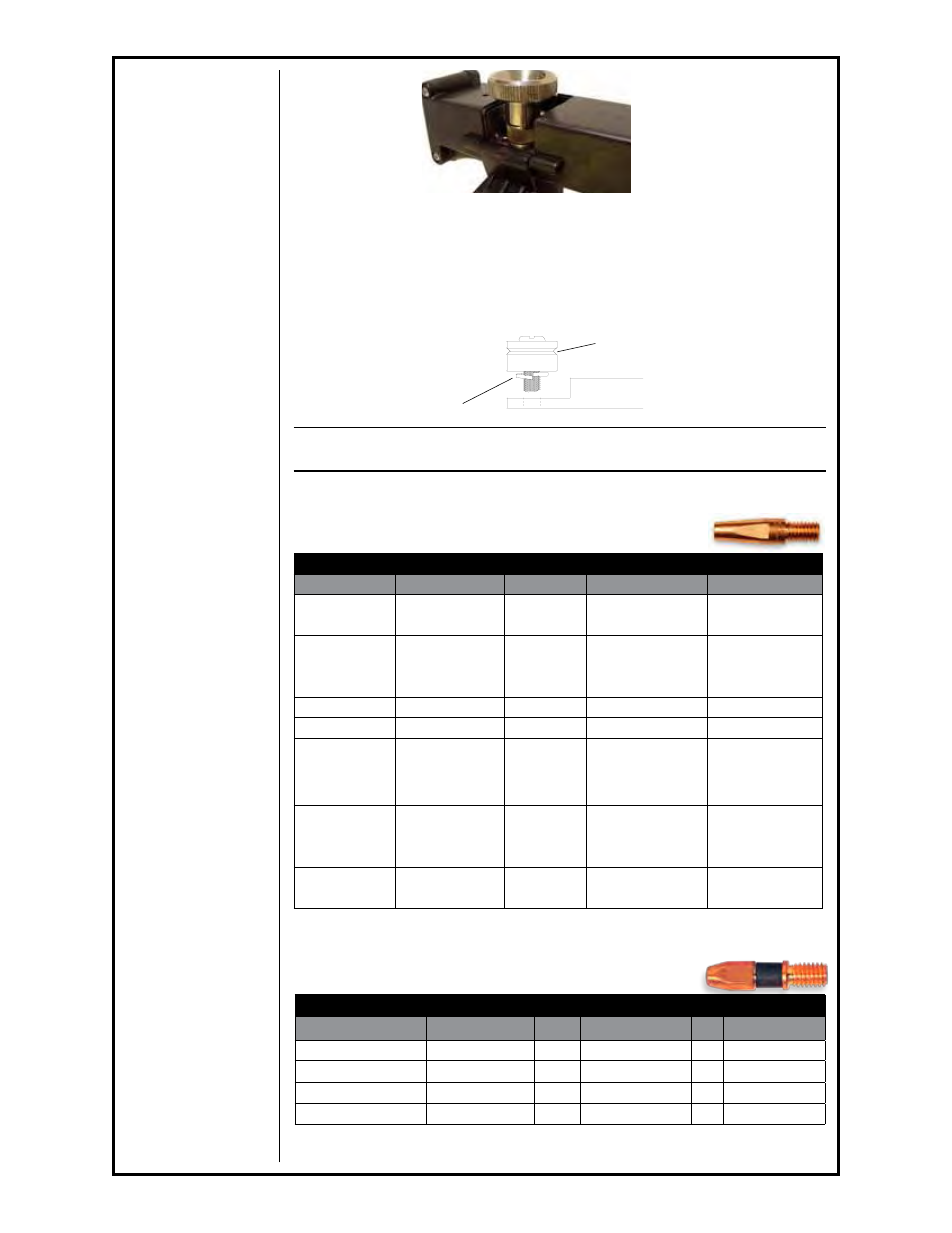

Prince ® XL Millermatic Compatible Gun Owner's Manual - Page 4
1. Using a slot type screwdriver, loosen idler screw, taking care not to
lose lock washer under idler roll.
2. Insert new idler roll and lock washer onto screw, insuring that
idler groove is toward top and lock washer is beneath.
3. Tighten.
NOTE:
Lock washer must be under idler roll or it will not turn freely.
Section C Accessories
Lock Washer
Groove Towards Top
Idler Arm
Idler Roll Installation and Removal
Contact Tips
Heavy Duty Contact Tip - 3/8" Diameter*
Wire Size Tip ID Arc Tip Length Part No.
.030” (0.8mm) .041” (1.0mm) Spray 1.57” (39.9mm) 621-0390-25
Short 1.82” (46.2mm) 621-0396-25
.035” (0.9mm) .044” (1.1mm) Spray 1.57” (39.9mm) 621-0391-25
621-0391-250
†
621-0391-500 ††
.035" (0.9mm) .044" (1.1mm) Short 1.82” (46.2mm) 621-0397-25
.045" (1.1mm) .053" (1.35mm) Short 1.82” (46.2mm) 621-0398-25
3/64” (1.2mm) .053” (1.35mm) Spray 1.57” (39.9mm) 621-0392-25
621-0392-250
†
621-0392-500 ††
3/64” (1.2mm) .060” (1.5mm) Spray 1.57” (39.9mm) 621-0393-25**
621-0393-250
†
621-0393-500 ††
1/16” (1.6mm) .074” (1.9mm) Spray 1.57” (39.9mm) 621-0394-25
.085” (2.16mm) Spray 621-0395-25
* Use of tip removal tool is recommended † Also sold in quantities of 250
**This size tip furnished with gun † † Also sold in quantities of 500
Spring Loaded Contact Tip - 3/8” Diameter
Wire Size Tip ID Arc Tip Length Qty Part Number
.030” (0.8 mm) .041” (1.0 mm) Spray 1.57” (39.9 mm) EA 621-0331
.035” (0.9 mm) .044” (1.1 mm) Spray 1.57” (39.9 mm) EA 621-0332
3/64” (1.2 mm) .060” (1.5 mm) Spray 1.57” (39.9 mm) EA 621-0334
1/16” (1.6 mm) .074” (1.9 mm) Spray 1.57” (39.9 mm) EA 621-0335
