Appendix b - wiring diagrams, Wiring diagrams, Appendix b – MicroE MTE Series User Manual

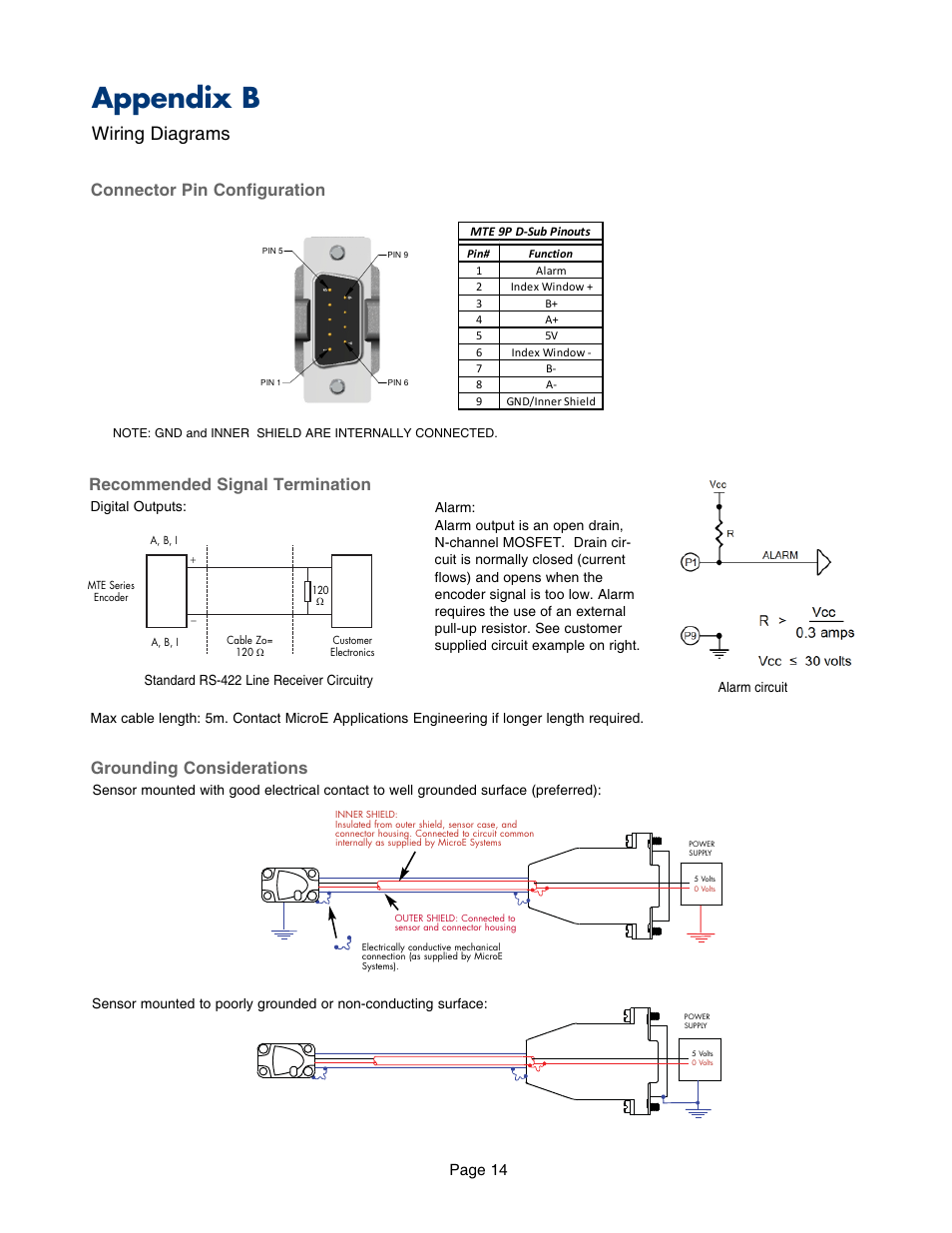

Page 14: Connector pin configuration, Grounding considerations, Recommended signal termination, Page 14

Appendix b - wiring diagrams, Wiring diagrams, Appendix b | Connector pin configuration, Grounding considerations, Recommended signal termination, Page 14 | MicroE MTE Series User Manual | Page 14 / 20 Appendix b - wiring diagrams, Wiring diagrams, Appendix b | Connector pin configuration, Grounding considerations, Recommended signal termination, Page 14 | MicroE MTE Series User Manual | Page 14 / 20
