Mechanical drawing – Delta Electronics Delphi Series V48SR User Manual
Page 13
DS_V48SR15004_06122007
13

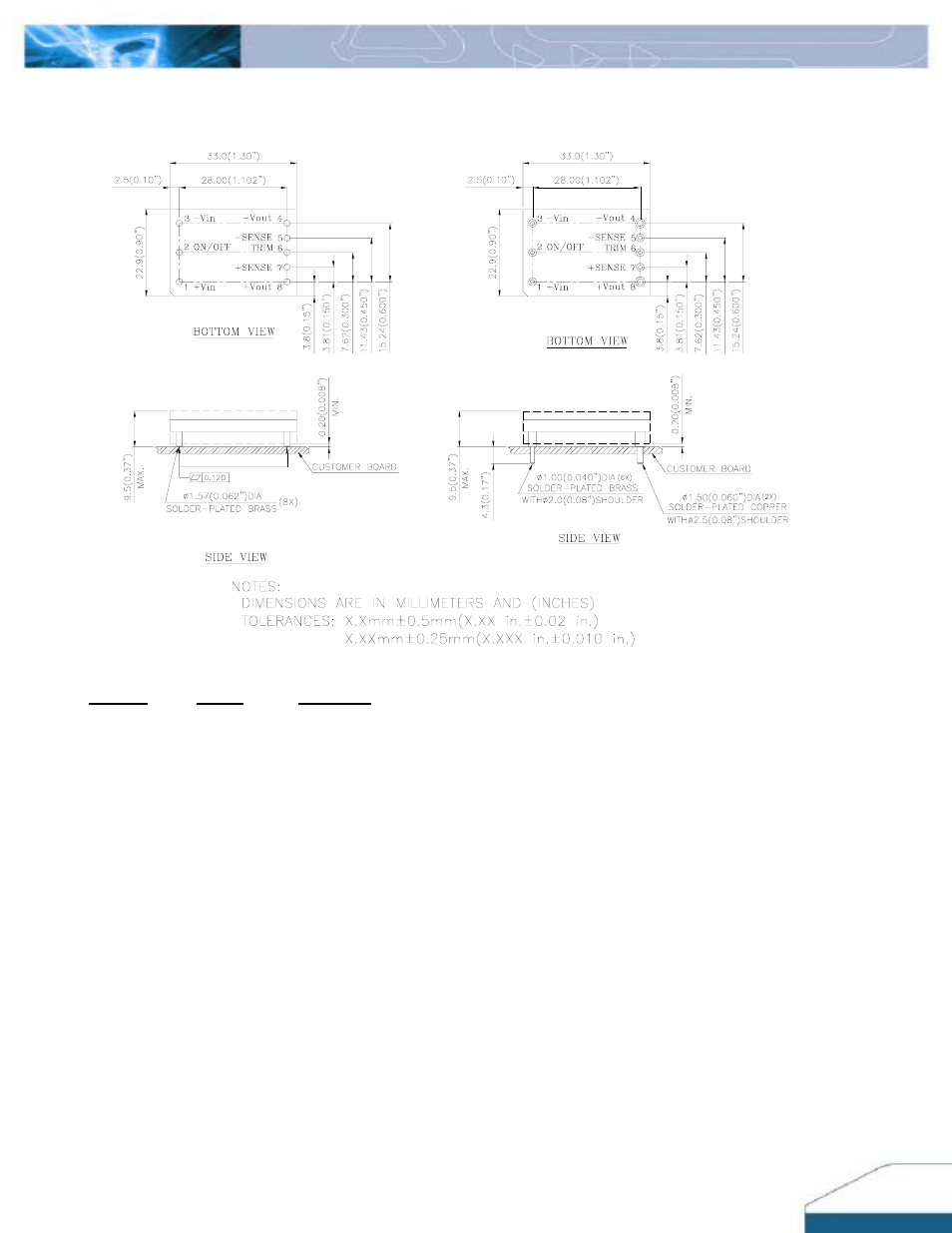

MECHANICAL DRAWING
Surface-mount module
Through-hole module
Pin No.
Name
Function
1
2
3
4
5
6
7
8
+Vin
ON/OFF
-Vin
-Vout
-SENSE
TRIM
+SENSE
+Vout
Positive input voltage
Remote ON/OFF
Negative input voltage
Negative output voltage
Negative remote sense
Output voltage trim
Positive remote sense
Positive output voltage
