Thermal considerations, Thermal curves, Thermal testing setup – Delta Electronics Delphi Series V48SR User Manual

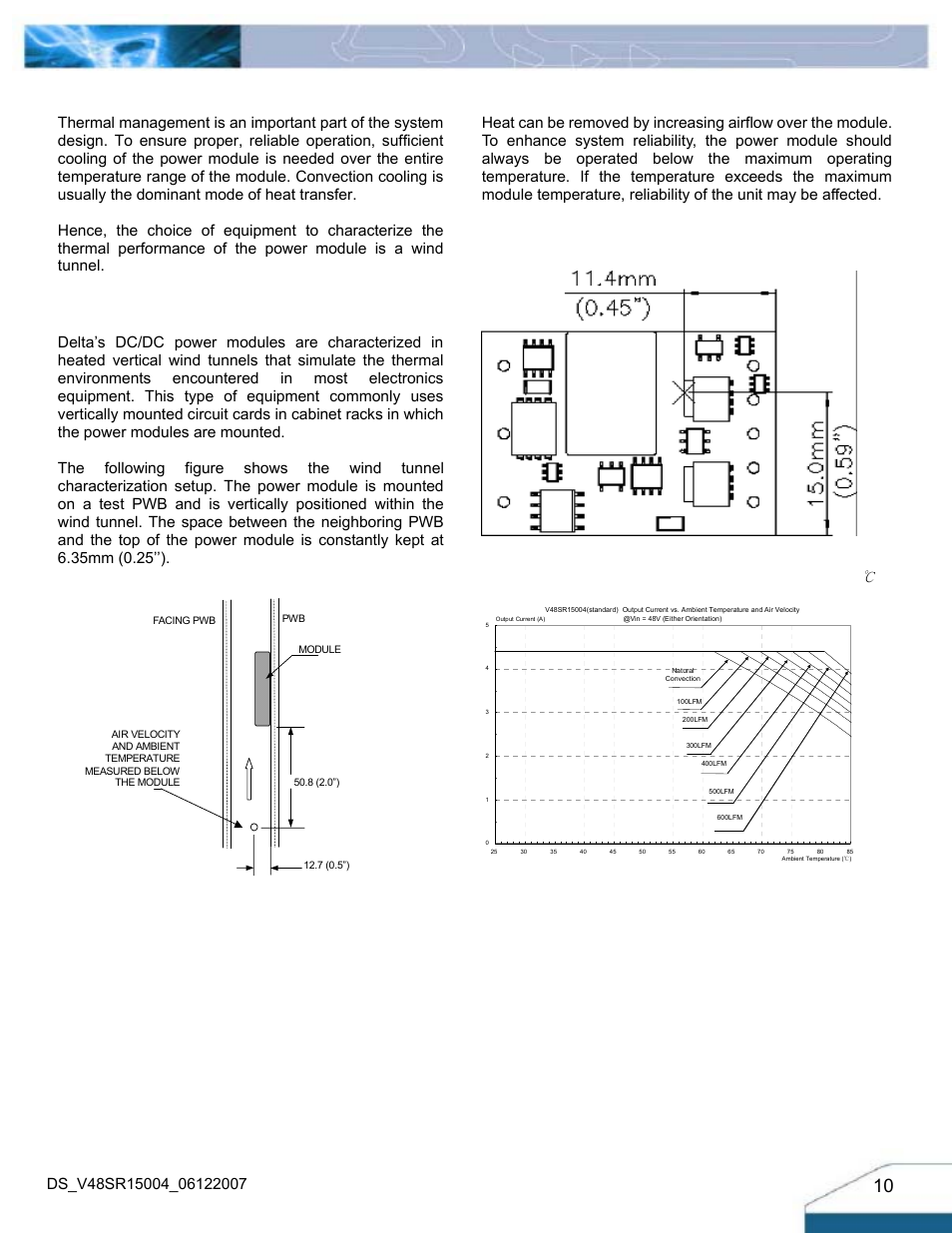

Page 10: Thermal derating, Figure 20: wind tunnel test setup
