31

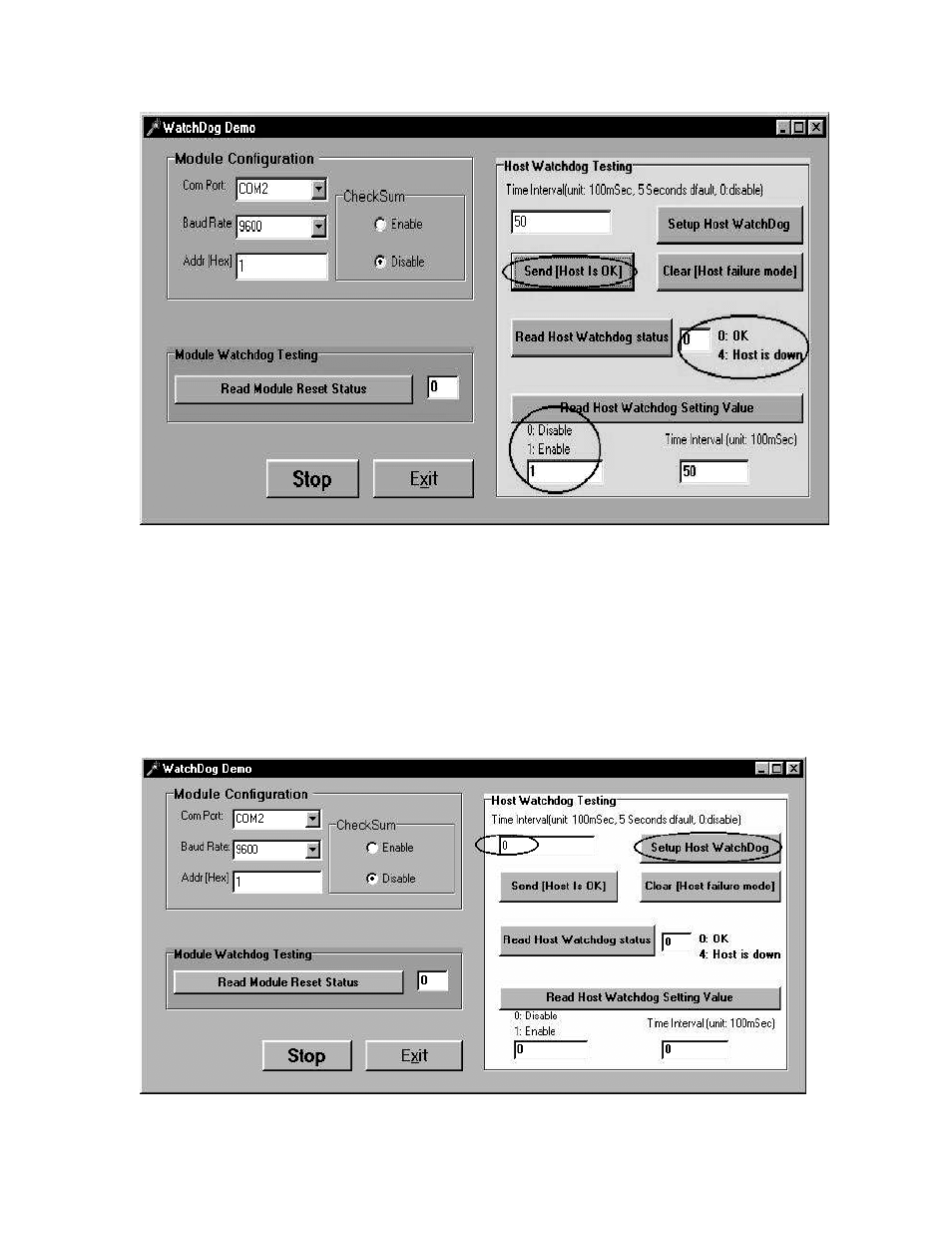

Figure 3-13. Host is OK (Status 0)
Normally, the host should send a [Host is OK] command every second.
When the module status is “0:OK” and Host Watchdog is enabled. Click on the button “Send
[Host is OK]” every 1 second. Note that after 5 seconds has past, the message box “Host is down”
is not displayed since the user sent the command ~** to the module signaling the module that the
Host is alive and well.
Type in 0 in the Host Watchdog’s time interval edits box. And click the button “Setup Host
Watchdog” to disable it (Figure 3-14).
Figure 3-14. Setup to Disable Host WatchDog
