Mechanical drawing (without heatspreader) – Delta Electronics E48SH User Manual
Page 13

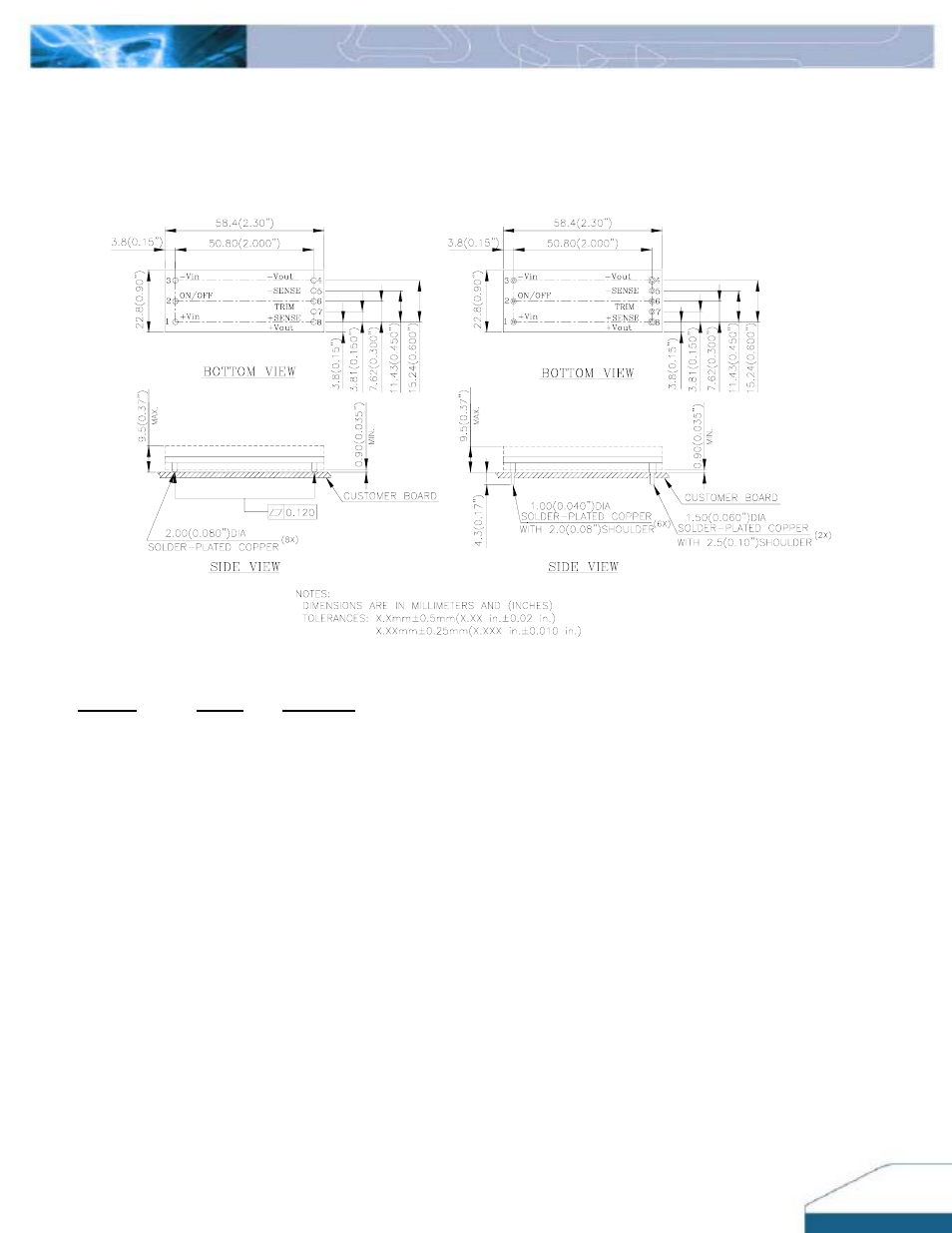

MECHANICAL DRAWING (WITHOUT HEATSPREADER)
SURFACE-MOUNT MODULE THROUGH-HOLE MODULE
Pin No.
Name
Function
1
2
3
4
5
6
7
8
+Vin
ON/OFF
-Vin
-Vout
-SENSE
TRIM
+SENSE
+Vout
Positive input voltage
Remote ON/OFF
Negative input voltage
Negative output voltage
Negative remote sense
Output voltage trim
Positive remote sense
Positive output voltage
E48SH1R540_02272007
13
