FEATURES

High efficiency: 89% @1.5V/40A

Size: 58.4mm x 22.8mm x 9.5mm

(2.30”x0.90”x0.37”)

Industry standard pin out

Fixed frequency operation

Input UVLO, Output OTP, OCP, OVP

Monotonic startup into normal and

pre-biased loads

Secondary control, very fast transient

response

2250V Isolation and basic insulation

No minimum load required

SMD and through-hole versions

No negative current during power or enable

on/off

ISO 9001, TL 9000, ISO 14001, QS 9000,

OHSAS 18001 certified manufacturing facility

UL/cUL 60950 (US & Canada) recognized,

and TUV (EN60950) certified

CE mark meets 73/23/EEC and 93/68/EEC

directive





















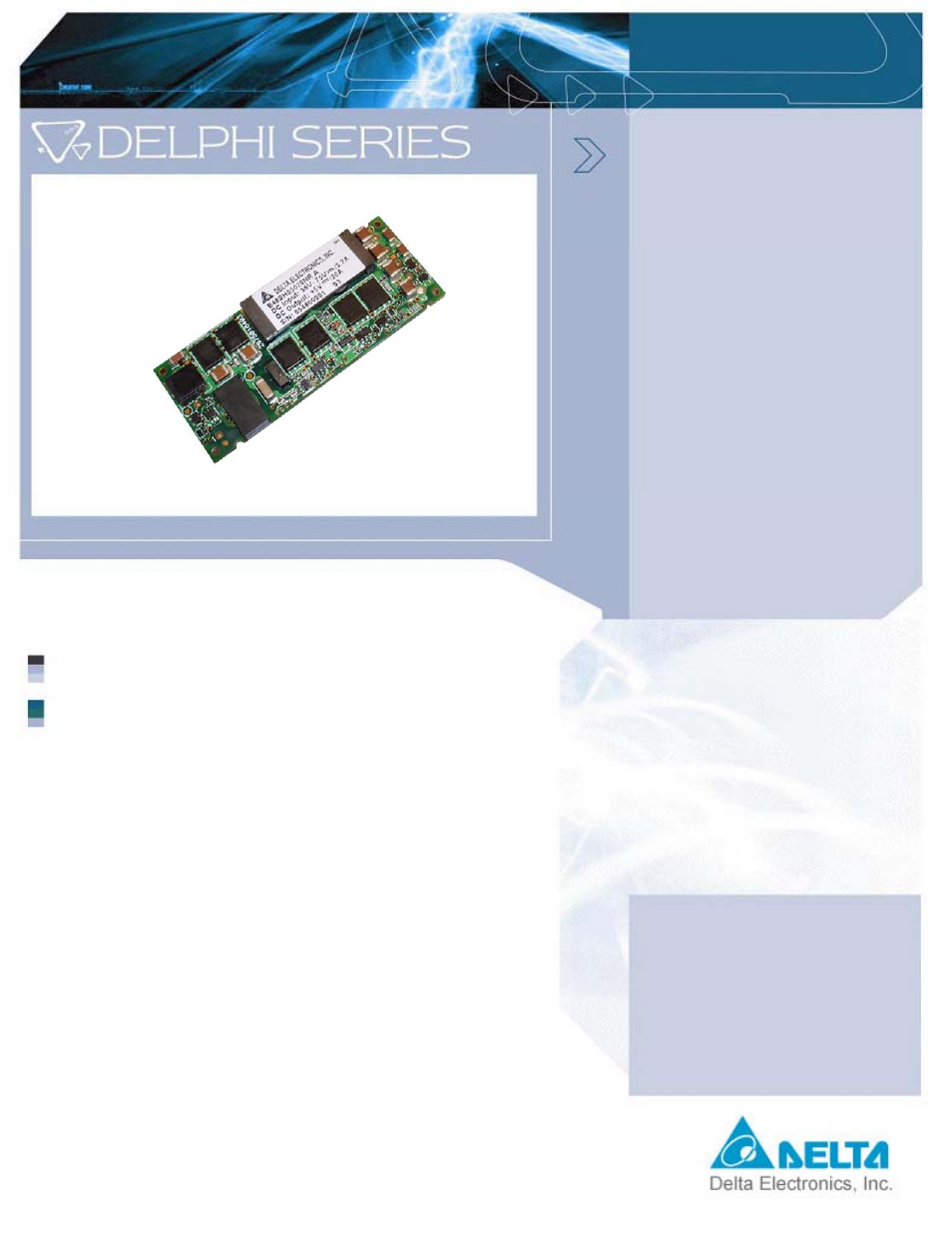

Delphi Series E48SH, 120W Eighth Brick Family
DC/DC Power Modules: 48V in, 1.5V/40A out


The Delphi Series E48SH Eighth Brick, 48V input, single output, isolated
DC/DC converters are the latest offering from a world leader in power
systems technology and manufacturing ― Delta Electronics, Inc. This
product family is available in either a through-hole or surface-mounted
package and provides up to 120 watts of power or 50A of output current
(1.2V and below) in an industry standard footprint and pinout. The E48SH
converter operates from an input voltage of 36V to 75V and is available in
output voltages from 1.0V to 15V. Efficiency is 89% for 1.5V output at 40A
full load. With creative design technology and optimization of component
placement, these converters possess outstanding electrical and thermal
performance, as well as extremely high reliability under highly stressful
operating conditions.

All models are fully protected from abnormal

input/output voltage, current, and temperature conditions. The Delphi Series
converters meet all safety requirements with basic insulation.

OPTIONS

Positive On/Off logic

Short pin lengths available

External Synchronization

Output OVP latch mode

Output OCP latch mode

Heat spreader

APPLICATIONS

Telecom/DataCom

Wireless Networks

Optical Network Equipment

Server and Data Storage

Industrial/Test Equipment



DATASHEET

DS_E48SH1R540_02272007
