19

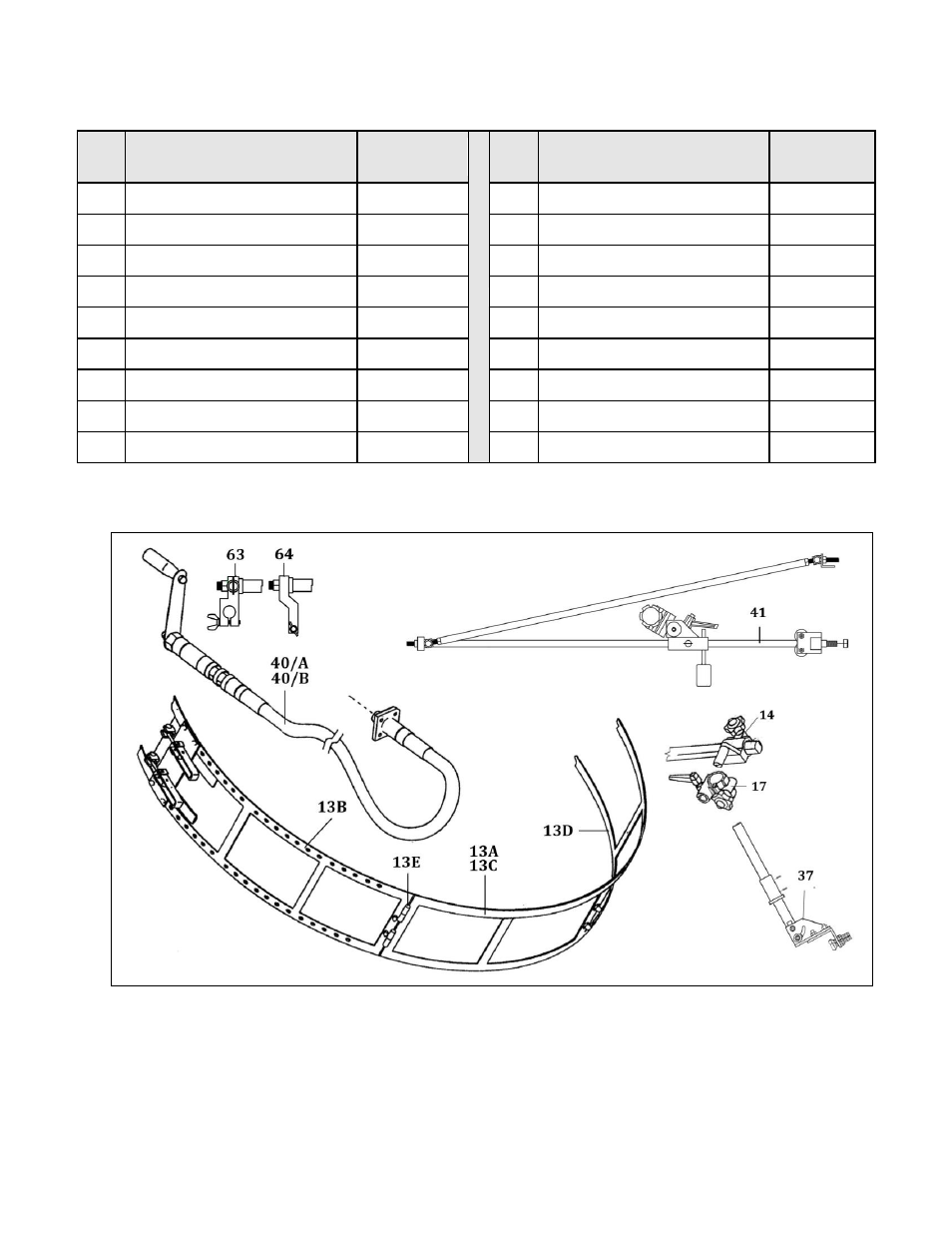

Figure 6 – Accessories
ITEM DESCRIPTION PART NUMBER ITEM DESCRIPTION PART
NUMBER
21A Chain Coupling Bolt 05-0510-071 24B Allen Head Set Screw, M6 x 8 05-0510-112C
21B Chain Coupling Nut 05-0510-062 24C Crank Arm 05-0510-124C
22 Motor Adaptor 05-0510-014 25 Hose Support 05-0510-125
22A Motor Coupling 05-0510-015 25A Bolt, M4 x 20 05-0510-125A
22B Right Angle Drive Motor 03-0201-056 25B Hex Nut, M4 05-0510-113F
22C Screw, Socket 1/4”- 20 x 1/4” lg. 19.14C0.014 26 Fuse, 3 Ampere Time Delay 05-0550-038
22D Socket Head Screw, 8-32 x 1” 11-08C0-100 27 230vac Motor Control Box 03-0203-006
24 Crank Handle Assembly, Complete 05-0510-124 28 230vac Motorizing Kit 05-0510-A07
24A Revolving Handle 05-0510-124A
Table 5 - Maxi Jolli Chain Machine Parts List
(continued)
(CONTINUED).
