Mechanical drawing (without heatspreader) – Delta Electronics Series H48SA User Manual
Page 12
DS_H48SA12025_05052008
12

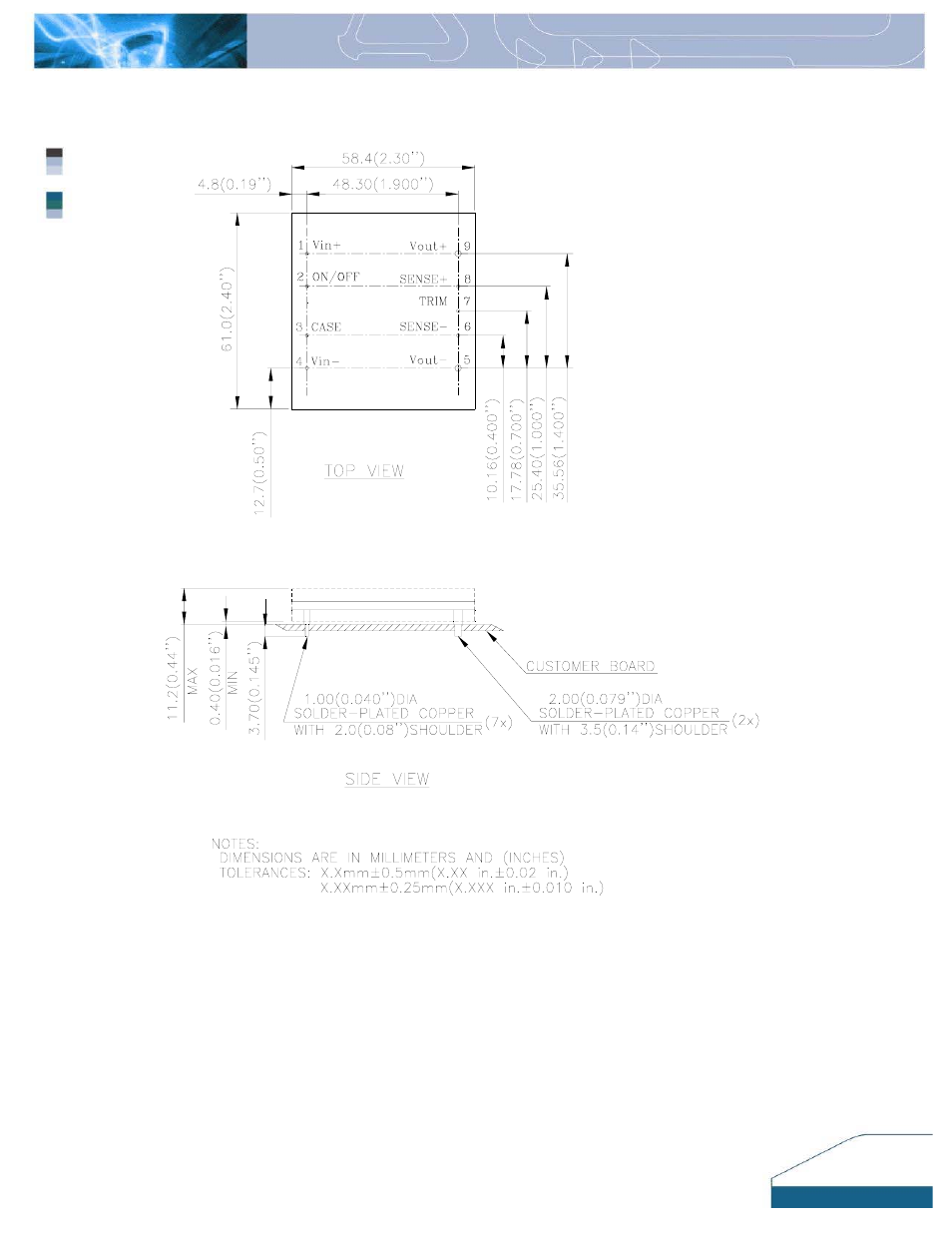

MECHANICAL DRAWING (WITHOUT HEATSPREADER)
Pin No. Name
Function
1
2
3
4
5
6
7
8
9
+Vin
ON/OFF
CASE
-Vin
-Vout
-SENSE
TRIM
+SENSE
+Vout
Positive input voltage
Remote ON/OFF
Case pin
Negative input voltage
Negative output voltage
Negative remote sense
Output voltage trim
Positive remote sense
Positive output voltage
Notes:
1
2
3
Pins 1-4, 6-8 are 1.00mm (0.040”) diameter
Pins 5 and 9 are 2.00mm (0.079”) diameter
All pins are copper with Tin plating.
