D-Link DI-713P User Manual
Page 16
16
Rear Panel

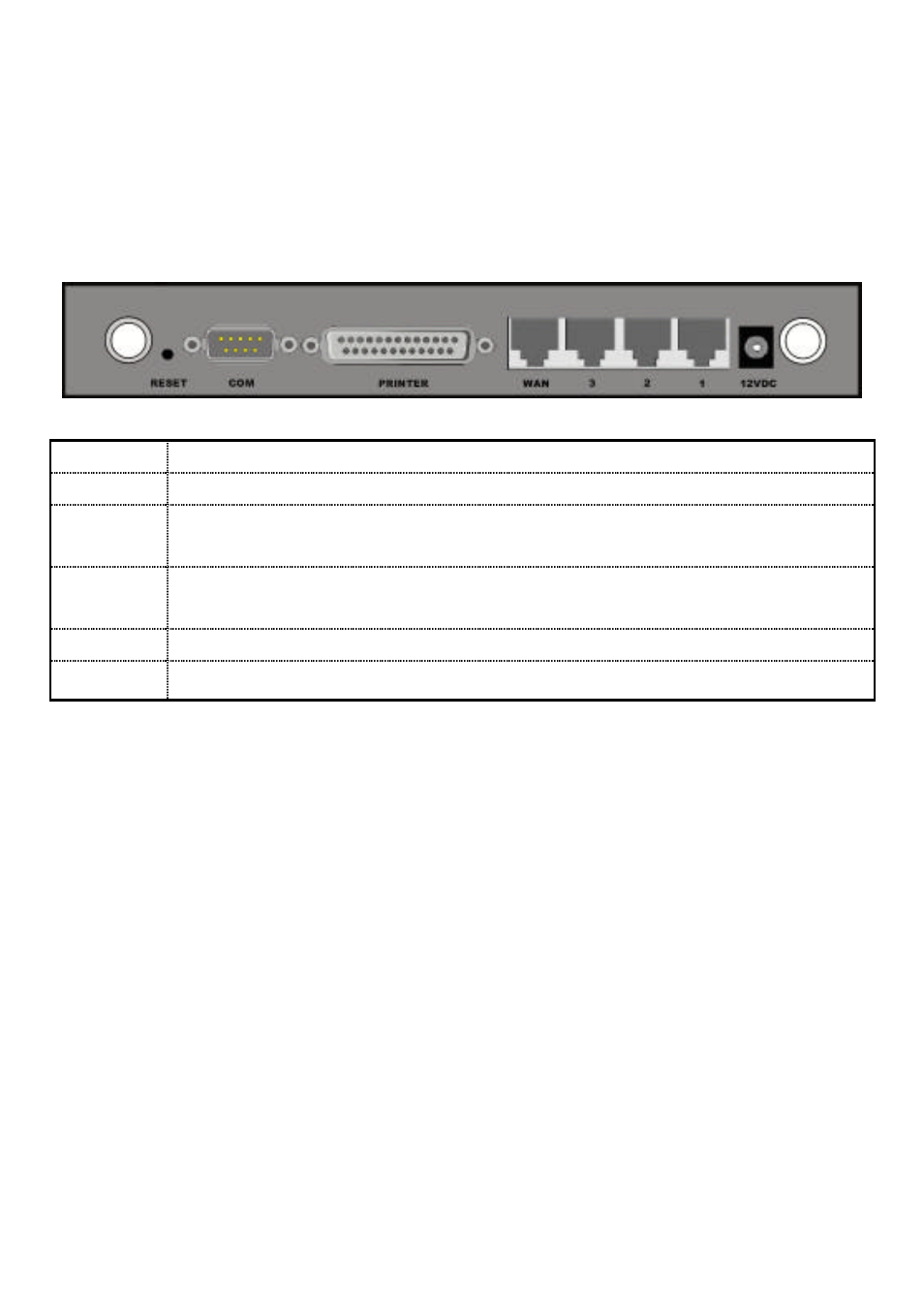

The rear panel features a LAN port, WAN port, Serial port and
Factory Reset button. Refer to the following table for the meaning of each
feature.
Serial
Port used to connect an external analog backup modem.
LPT
Port used to connect a printer
LAN
1-3
The RJ-45 Ethernet ports used to connect computers with
network adapters directly to the DI-713P.
WAN
The RJ-45 Ethernet port labeled WAN is used to connect your
DI-713P to your DSL or Cable modem.
Reset
Resets the configuration to default settings.
12VDC Power inlet: DC 12V, 1.2A (minimum)
