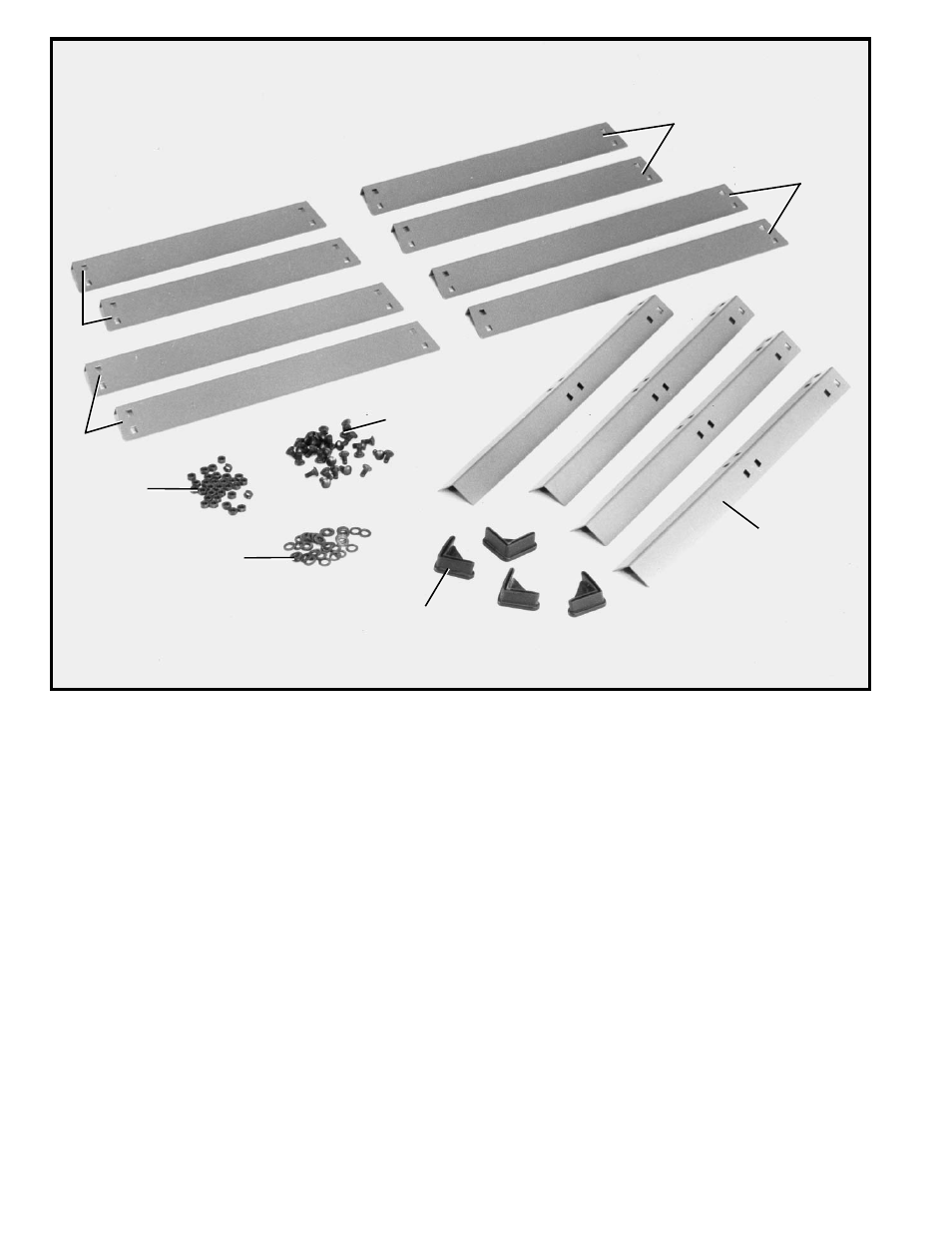

Fig. 3

For Saw Stand

1 - Top Front and Rear Braces - 19

″ in length (2)

2 - Bottom Front and Rear Braces - 22-1/2

″ in length (2)

3 - Stand Legs (4)

4 - Plastic Feet (4)

5 - 3/8

″ Flat Washer (32)

6 - M8 x 16MM Carriage Head Screw (32)

7 - M8 Hex Nut (32)

8 - Bottom Side Braces - 20

″ in length (2)

9 - Top Side Braces - 16-1/2

″ in length (2)
