Rear View

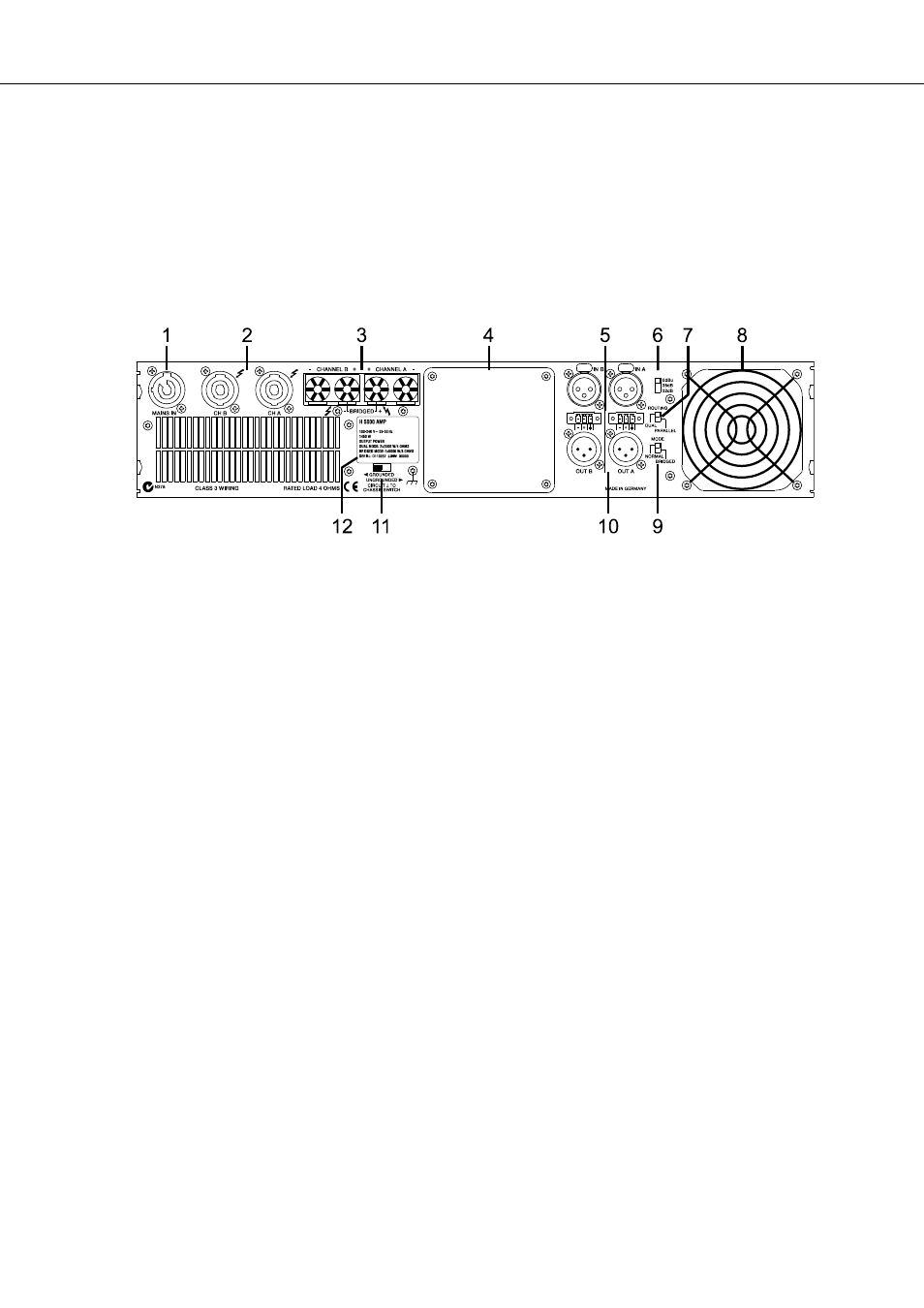

Illustration 2.2: H2500/H5000 rear view
1 PowerCon® Mains Input (MAINS IN)
2 Speakon™ Female-Type Power Amp Outputs (CH A, CH B)
3 Power Amp Output Terminals (CHANNEL A, CHANNEL B, BRIDGED)
4 Expansion Slot
5 XLR and Phoenix-Type Audio Inputs (IN A, IN B)
6 Input Sensitivity/Gain Switch
7 Audio Inputs Routing Switch (ROUTING)
8 Fan
9 Power Amp Outputs Mode Switch (MODE)
10 XLR-Type Audio Outputs (OUT A, OUT B)
11 Ground Lift Switch (CIRCUIT ⊥ TO CHASSIS SWITCH)
