PowerH SERIES
Owner’s Manual 7
2 Installation
2.1 Controls, Indicators and Connections
Front View

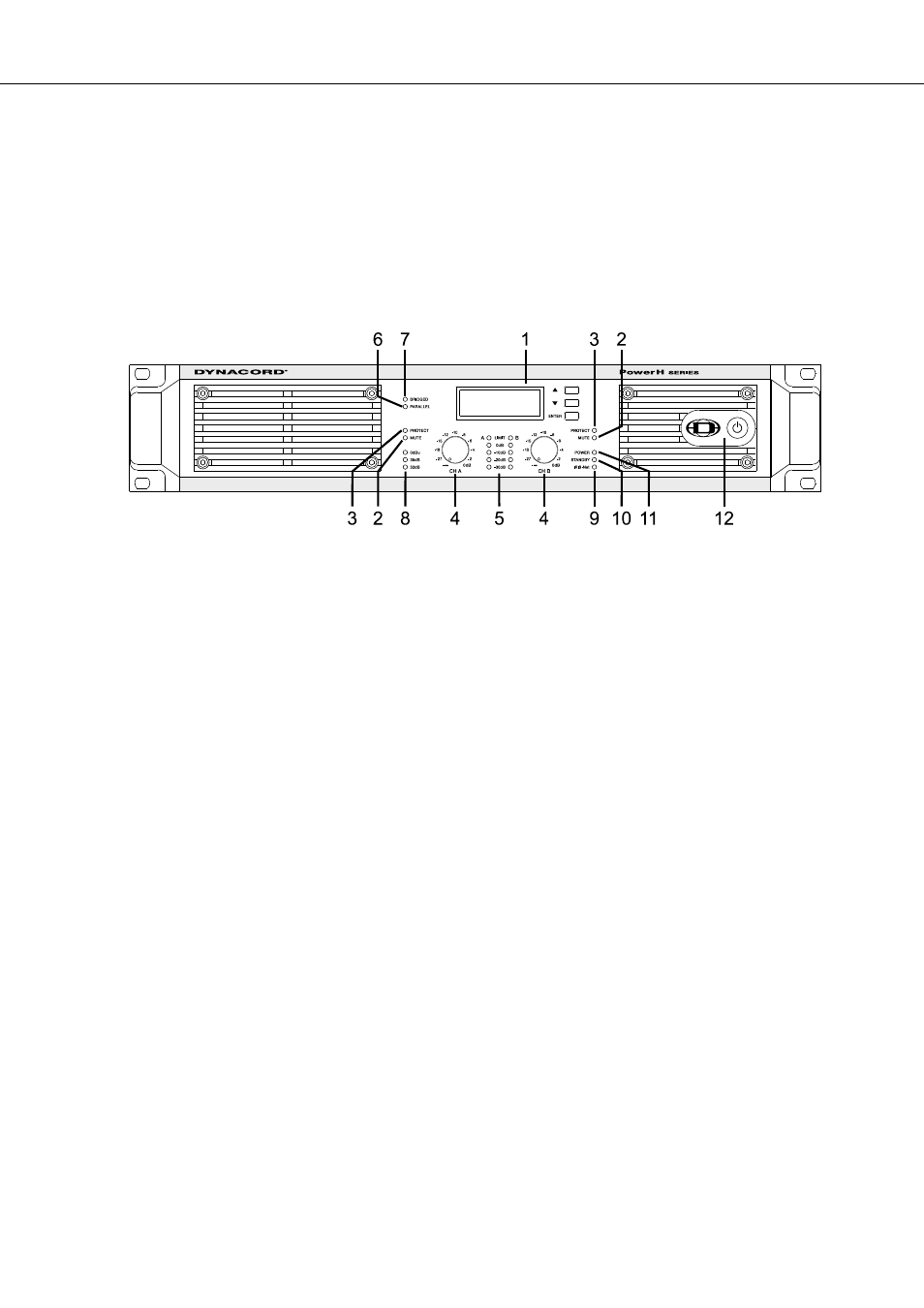

Illustration 2.1: H2500/H5000 front view
1 LC-Display (with controls)
2 Muting Indicator (MUTE) for channels A and B
3 Protections Indicator (PROTECT) for channels A and B
4 Input Level Control (CH A, CH B) for channels A and B
5 Level Indicators for channels A and B
6 Audio Input Mode Indicator (PARALLEL)
7 Power Amplifier Mode Indicator (BRIDGED)
8 Input Sensitivity/Gain Indicator (0dBu, 35dB, 32dB)
9 Remote Amplifier Indicator (IRIS-Net)
10 Standby Indicator (STANDBY)
11 Power On/Off Indicator (POWER)
12 Mains Switch
