Power Amplifier Menu Navigation
Start screen and type designation appear after switching the power amplifier on. The power amp’s status
display appears after a few seconds. The top line always shows the name of the power amplifier. An
overview of the power amp’s actual condition is provided in lines two and three. Additional information is
shown if, for example, a RCM-26 has been installed in the power amplifier.
Using the Up/Down buttons lets you scroll through the bottom line. The following table lists the information,
which is displayed in consecutive order.

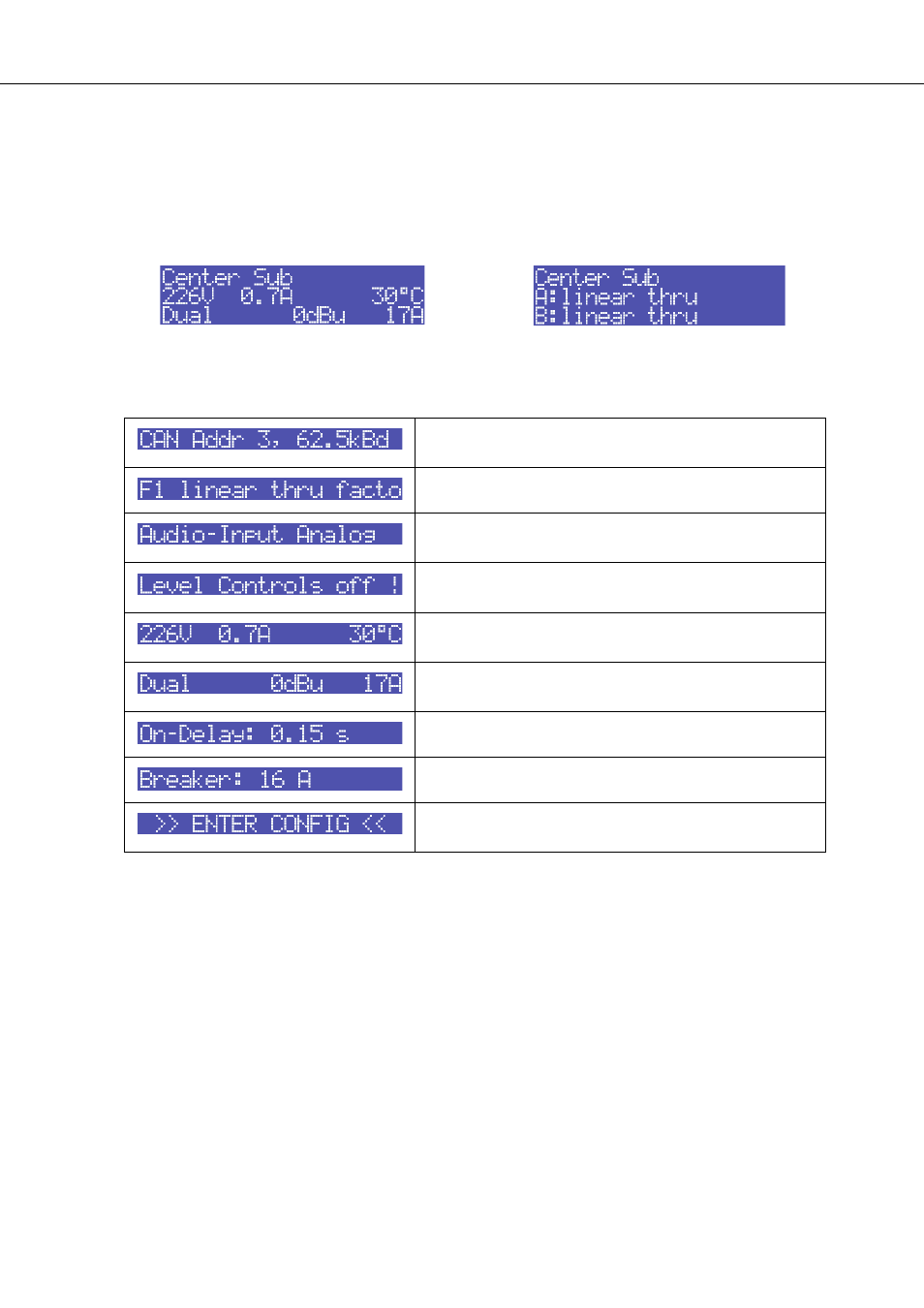

Illustration 3.3: Status display of the power amplifier without / with RCM-26 installed (example)
Set CAN address and CAN baud rate (only with RCM-26
installed)
Name of the actual preset (only with RCM-26 installed)
Currently used audio input of the power amp (only with
RCM-26 installed)
Status of the input level controls on the power amp’s front
panel (only with RCM-26 installed)
Mains voltage, mains current consumption (RMS) and
amp temperature.
Currently active parameters for the mode of operation,
sensitivity and Mains Circuit Breaker Protection
Power-on delay of the power amp
Actual parameter for the Mains Circuit Breaker Protection
Pressing the ENTER button branches to the CONFIG
configuration menu.
Table 3.1: Overview status display
