2.4 Mounting
Front Mounting of the Power Amplifier
PowerH amplifiers have been designed for installation in a conventional 19-inch rack case. Attach the
power amp with its frontal rack mount ears using 4 screws and washers as shown in illustration 2.4.
Rear Mounting
Additionally securing the amplifier at the rear becomes necessary, if the rack case in which the power
amplifier has been installed will be transported. Failure to do so may result in damage to the power
amplifier as well as to the rack case. Brackets for securing the power amplifier are supplied. Attach the
power amp as shown in illustration 2.5 using the supplied 4 case nuts and screws.

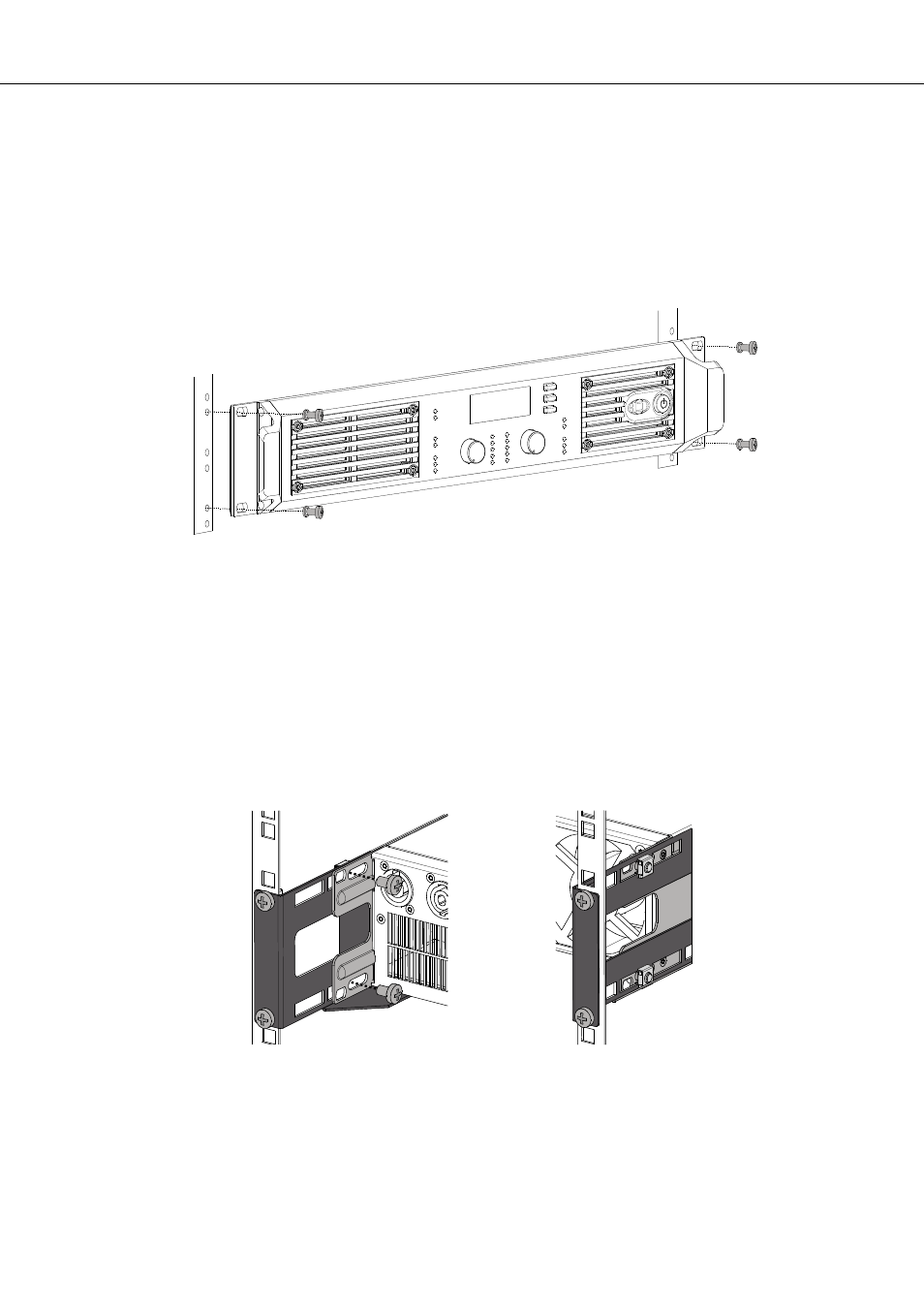

Illustration 2.4: Front mounting when installing the power amplifier in a rack case
Illustration 2.5: Rear mounting when installing the power amplifier in a rack case
