Connection to 5.1-channel Surround Sound system
HOOK UPS
Optical cable (not supplied)
• Optical cable (not supplied) may be damaged when bent at sharp angles. Ensure cables are coiled in loops with a diame-
ter of 15 cm or more when storing them.
• Use a cable which is 3m or shorter.
• Insert cable plugs firmly into the connectors when making connections.
• If a plug has minor scratches or is dirty, clean it with a soft cloth before inserting it into a connector.
Analog 5.1-channel audio signals can be output from the DVD player.
The multichannel audio signals recorded in packed PCM can be played when an AV amplifier equipped with
analog 5.1-channel audio inputs is connected.
AUDIO
DVD
To 5.1ch Audio IN
Jacks
AV amplifier
with
5.1-channel input terminals

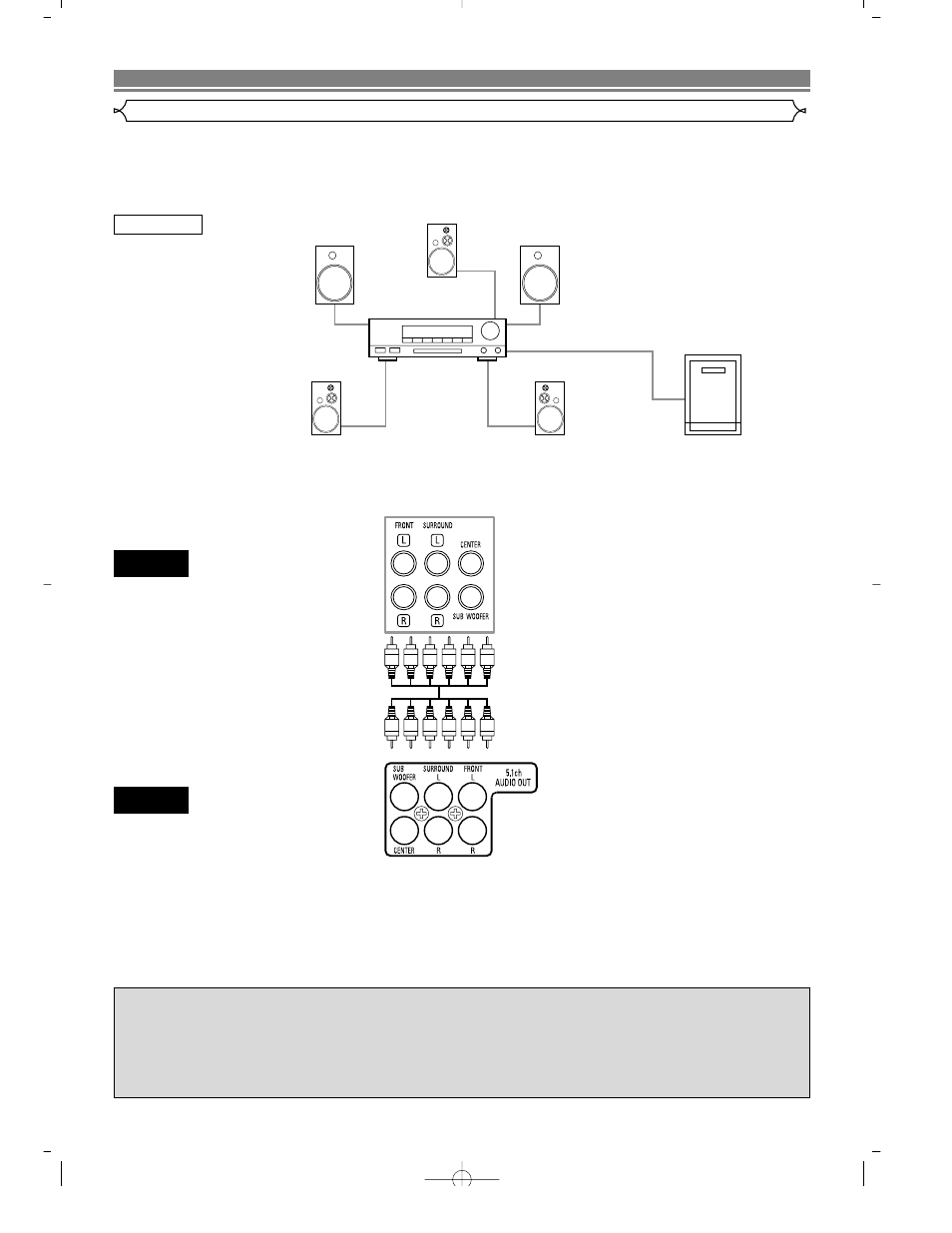

Method 1
5.1ch Audio OUT
Front speaker
(left)
Surround
speaker
(left)
Center speaker
Subwoofer
Surround
speaker
(right)
Front speaker
(right)
