D-Link DSL-500T - Manual (Page 59)

DSL-500T ADSL Router User’s Guide
47
Dynamic Routing
The Router supports RIP v1 and RIP v2 used to share routing tables with other Layer 3 routing devices. It also
supports use of password protection, which requires password verification for RIP requests. Use the Dynamic
Routing menu to enable RIP and if desired to configure password protection.

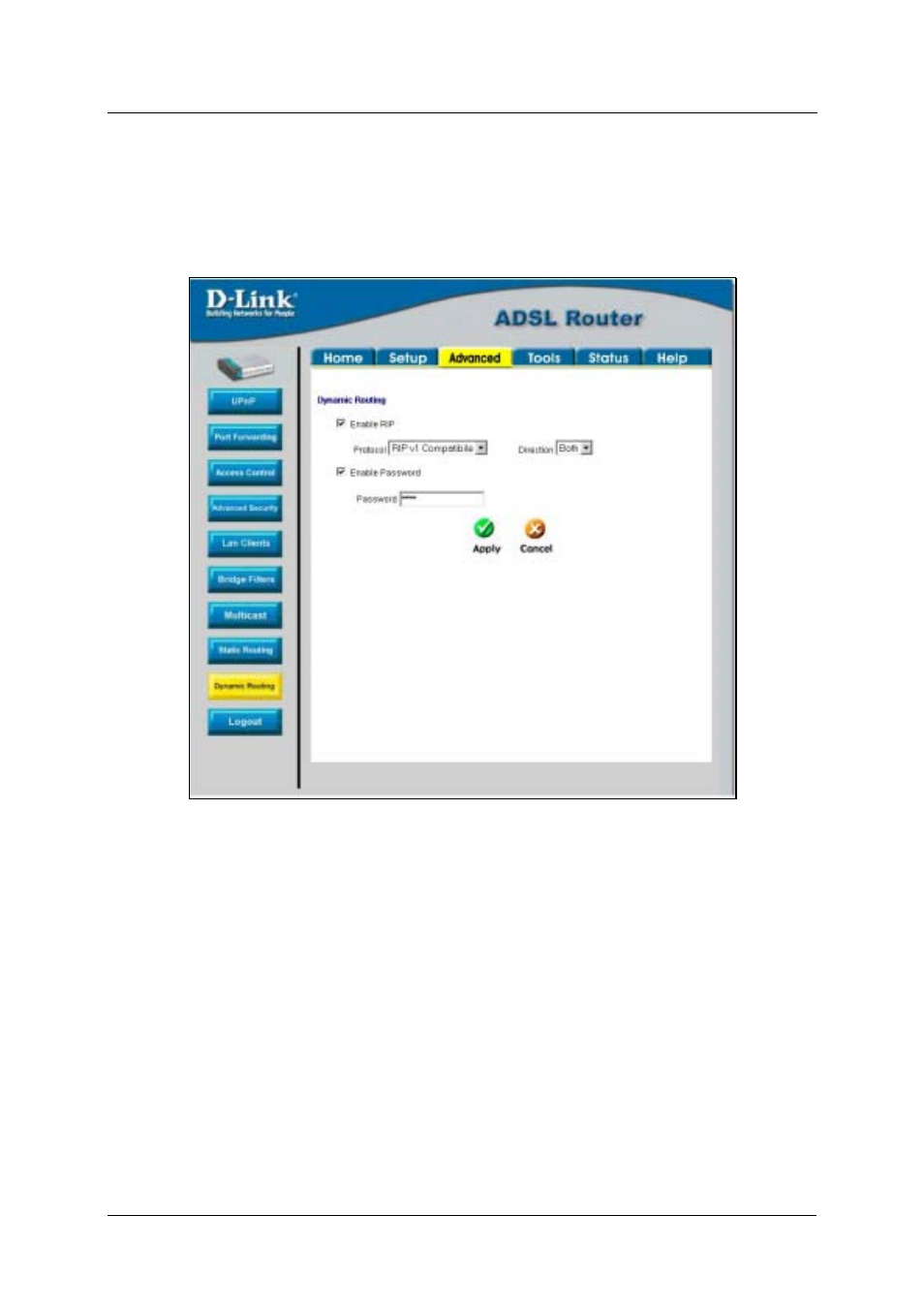

Figure 4-12. Dynamic Routing (RIP) menu
To enable RIP v1, check Enable RIP, select RIP v1 Protocol, select the Direction (In, Out, or Both), and click
Apply. To enable RIP v2 or RIP v1 Compatible, select the appropriate Protocol and Direction and click Apply.
To use password protection for RIP v2 or RIP v1 Compatible protocols, check Enable Password, enter a
Password, and click Apply.
