SPECIFICATIONS
GENERAL SPECIFICATIONS OUTPUT SPECIFICATIONS
Input Voltage 10.2V~13.8V Output Voltages Programmable 0.9V~5.0V
Operating Temperature Typical, at component 0°C ~ + 125°C Voltage Accuracy Typical ±2.5% of Vo
NC30A, @ component -40°C ~ + 125°C Output Current Maximum 30A, 40A
MTBF Telcordia SR-332 1.69Mhours Ripple & Noise 50 mVp-p
Size (Vertical Version) (2.4”Ч1.25”Ч0.52”) 61.0x31.8x13.2mm Switching Frequency Typical 300KHz
Size (Horizontal Version) (2.4”Ч1.25”Ч0.48”) 61.0x31.8x12.3mm Weight 36g
PART NUMBERING SYSTEM
NC 12 S 0A0 H 30 P N F A
Product
Series
Input
Voltage
Number
of outputs
Output
Voltage
Mounting
Output
Current
ON/OFF
Logic
Pin
Length
Option Code
NC-
Non-isolated
Converter
12-
10.2~13.8V
S- Single
Output
0A0-
Programmable
H- Horizontal
V- Vertical
30 - 30A
40 - 40A
P- Positive
N- Negative
N- 0.14”
R- 0.118”
F- RoHS 6/6
(Lead Free)
A- Standard
Functions
MODEL LIST
Model Name Packaging Input Voltage Output Voltage Output Current Efficiency, 12Vin, full load
NC12S0A0H30PNFA Horizontal 10.2 ~ 13.8Vdc 0.9V~5.0V 30A 93% (5V)
NC12S0A0V30PNFA Vertical 10.2 ~ 13.8Vdc 0.9V~5.0V 30A 93% (5V)
NC12S0A0H40PNFA Horizontal 10.2 ~ 13.8Vdc 0.9V~5.0V 40A 92% (5V)
NC12S0A0V40PNFA Vertical 10.2 ~ 13.8Vdc 0.9V~5.0V 40A 92% (5V)

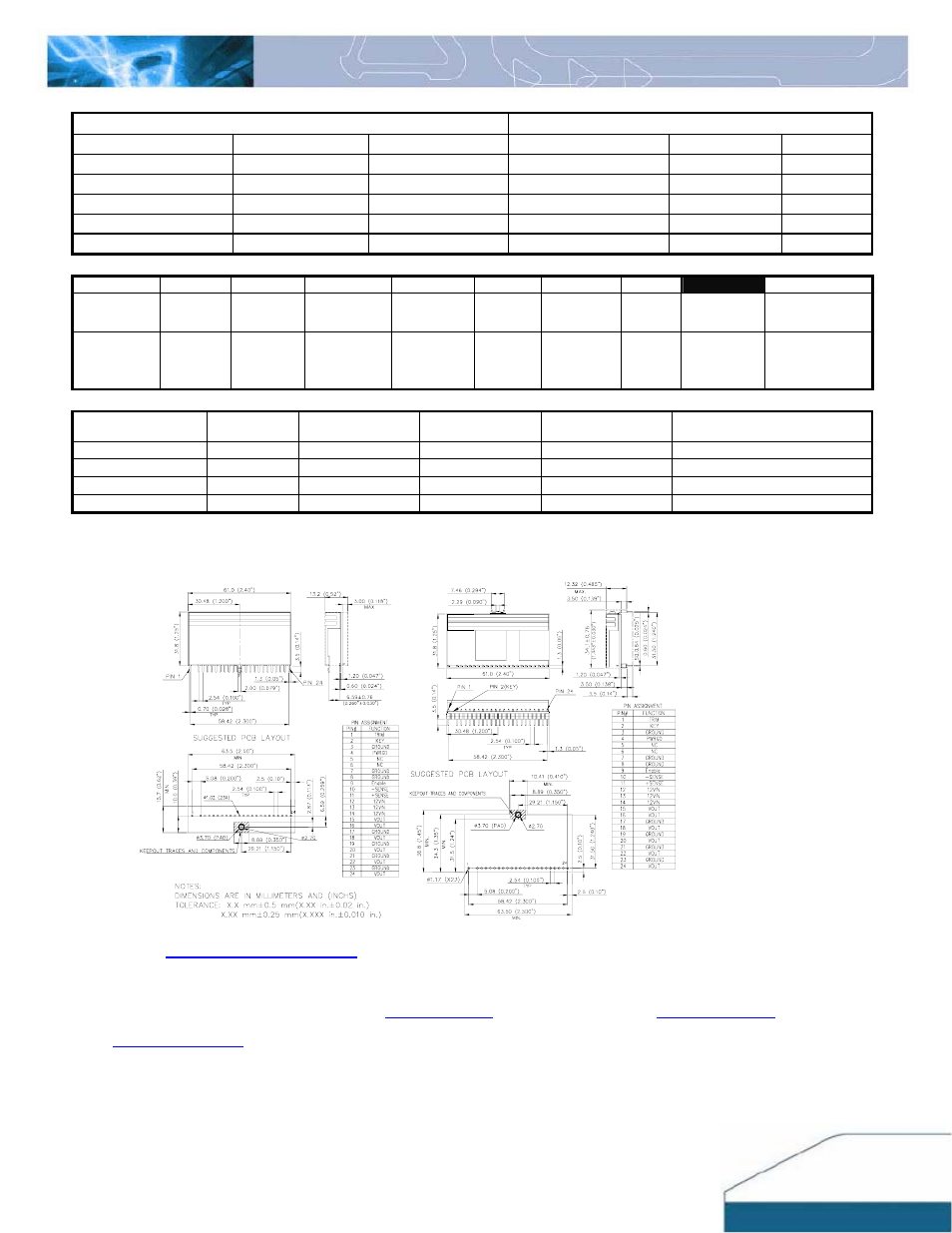

MECHANICAL DRAWING
CONTACT: www.delta.com.tw/dcdc
USA:
Telephone:
East Coast: (888) 335 8201
West Coast: (888) 335 8208
Fax: (978) 656 3964
Email:
[email protected]
Europe:
Telephone: +41 31 998 53 11
Fax: +41 31 998 53 53
Email:
[email protected]
Asia & the rest of world:
Telephone: +886 3 4526107 ext. 6220
Fax: +886 3 4513485
Email:
[email protected]
WARRANTY
Delta offers a two (2) year limited warranty. Complete warranty information is listed on our web site or is available upon request from Delta.
Information furnished by Delta is believed to be accurate and reliable. However, no responsibility is assumed by Delta for its use, nor for any infringements of patents or
other rights of third parties, which may result from its use. No license is granted by implication or otherwise under any patent or patent rights of Delta. Delta reserves the
right to revise these specifications at any time, without notice.
VERTICAL HORIZONTAL
