13

ENGLISH

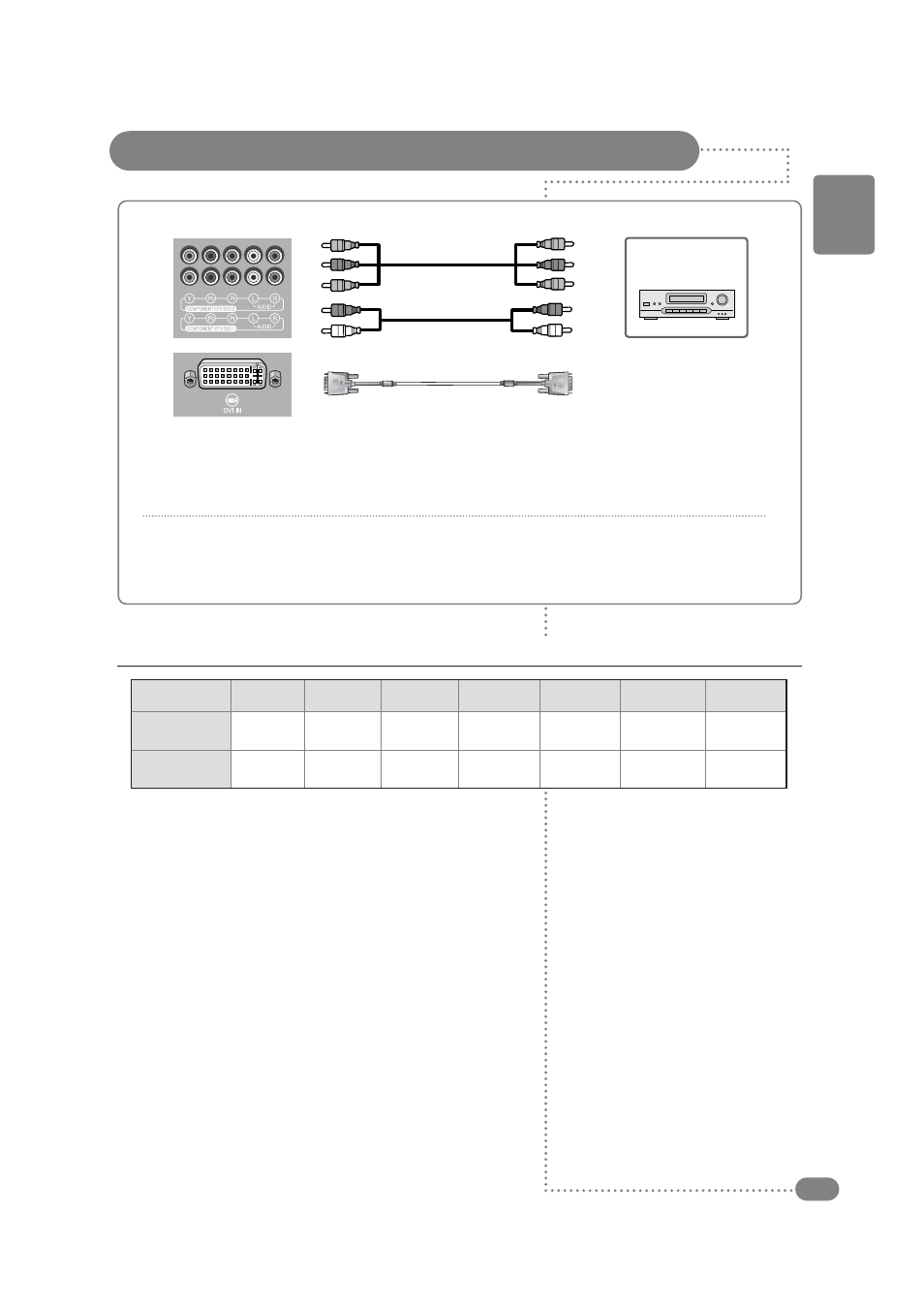

Connecting to a DVD or DTV Set-Top Box INPUT (RCA or DVI)

1. Connect the video cables to the Y, Pb, Pr input jacks (COMPONENT1 or 2) on the TV and the

Y, Pb, Pr output jacks on the DVD or DTV Set-Top Box.

2. Connect the audio cables to the Audio L/R input jacks (COMPONENT1 or 2) on the TV and the

Audio output jacks on the DVD or DTV Set-Top Box.

1. Connect the DVI cables to the DVI input jacks (DVI) on the TV and the DVI output jacks on the

DVD or PC.

2. Connect the audio cables to the Audio L/R input jacks on the TV and the Audio output jacks on

the DVD or PC.

Rear of the TV

DVD/DTV STB

Video Cable

Audio Cable

DVI Cable

OR

COMPONENT 1

COMPONENT 2

480i / 60Hz 480p/ 60Hz 576i / 50Hz 576p / 50Hz 720p / 50Hz 720p / 60Hz 1080i / 60Hz

O

O

O

O

O

O

O

O

O

O

O

O

O

O

Supported Signal for Component Ports
