12

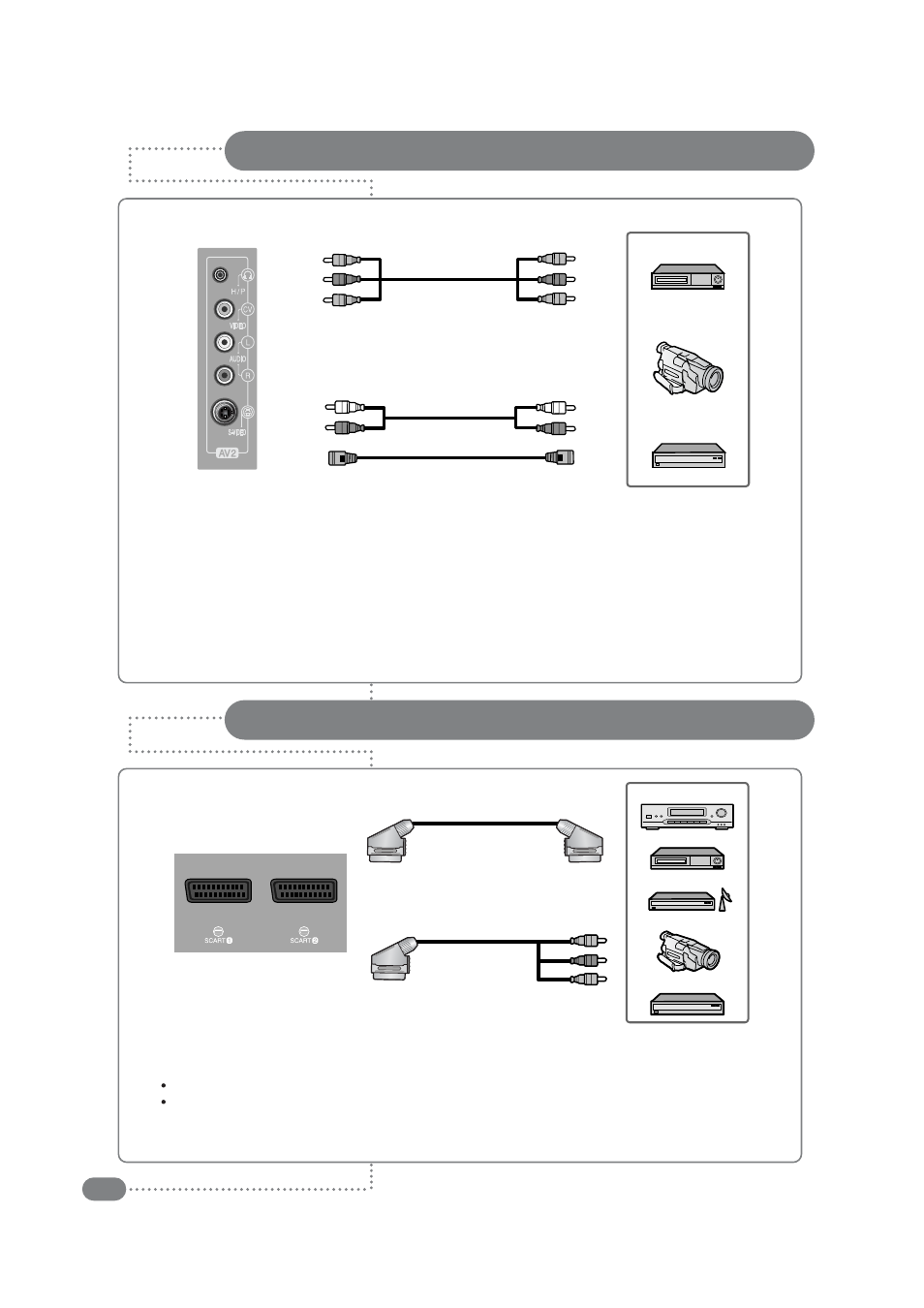

Connecting to the RCA or S-Video Input ( Side AV2 )

Connecting to the SCART Input

(A) For RCA Input

1. Connect the RCA cable to the input jacks (video+ audio L/R of side AV2) on the TV and output

jacks on the external equipment such as a VCR, camcorder and some video game devices.

(B) For S-Video Input

1. Connect the S-Video/RCA (audio L/R of side AV2) cable to the input jacks on the TV and output

jacks on the external equipment such as a VCR, camcorder and some video game devices.

2. If the external equipment has mono audio output, connect it only to left jack of the Audio Input/Output.

Right Side of the TV

VCR

Camcorder

Video game device

(A) For RCA Input

(B) For S-Video Input

Rear of the TV

DVD/DTV STB

VCR

Satellite Receiver

Camcorder

Video game device

(A) SCART to SCART connector

(B) SCART to RCA connectors

(Video + Audio L/R)

The SCART1 or SCART2 connector is used for external equipment with RGB output, such as a VCR,

satellite receiver, camcorder, or video game devices.

SCART1 : Full SCART (CVBS & RGB input/output)
SCART2 : Half SCART (CVBS only input/output)

You can select and set one between the two types of cables (A, B) appropriate for the output jack of

external device.
