6 DO-IT-YOURSELF MAINTENANCE
25
G290B03E-AAT
Adjustment After Headlight Assembly
Replacement

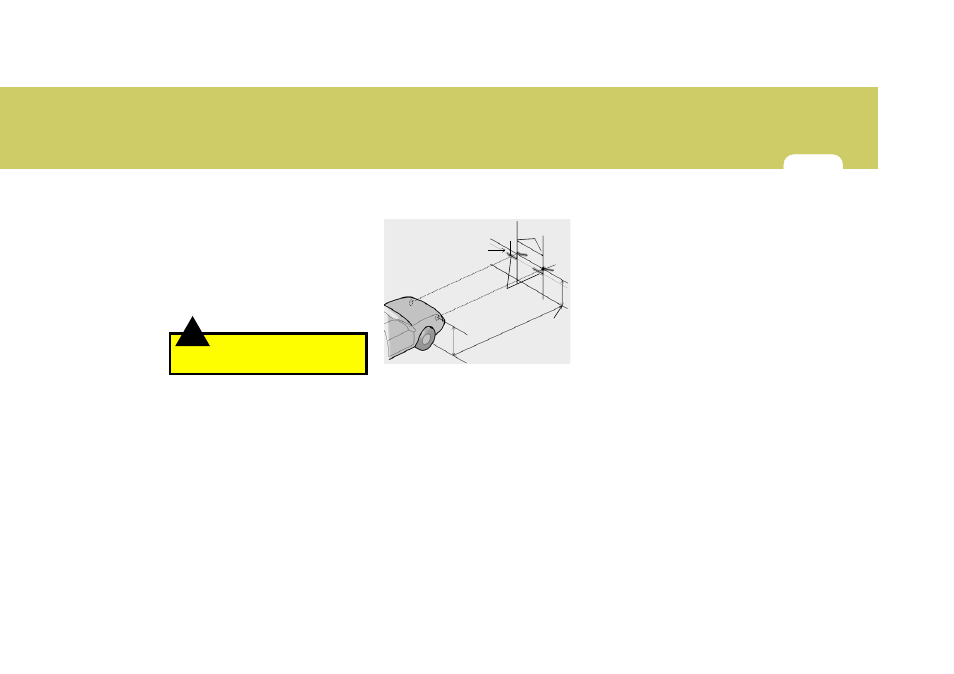

If the vehicle has had front body repair and the
headlight assembly has been replaced, the
headlight aiming should be checked using an
aiming screen as shown in the illustration. Turn
on the headlight switch. (Low Beam Position)
1. Adjust headlights so that main axis of light is
parallel to the center line of the body and is
aligned with point "P" shown in the illustration.
2. Dotted lines in the illustration show the center
of the headlights.
G290B01A-1
L
W
H
H
Cut-off line
"P"
1.18 in. (30mm) Vertical line
Horizontal line
Ground
line
!
5. Open the hood.
6. Draw a vertical line (through the center of
each headlight beam pattern) and a horizon-
tal line (through the center of each headlight
beam pattern) on the aiming screen.
And then, draw the horizontal parallel line at
0.8 in. (21 mm) under the horizontal line.
7. Adjust each cut-off line of the low beam to the
parallel line with a phillips screwdriver
- VERTICAL AIMING
WARNING:
Horizontal aiming should be adjusted by an
authorized Hyundai Dealer.
Specification:
"H"
Horizontal center line of headlights from
ground.
Low beam : 25.2 in. (639 mm)
High beam : 23.3 in. (619 mm)
"W"
Distance between each headlight center.
Low beam : 44.2 in. (1124 mm)
High beam : 33.0 in. (840 mm)
"L"
Distance between the headlights and the
wall that the lights are tested against.
: 118 in. (3,000 mm).
