6 DO-IT-YOURSELF MAINTENANCE
17

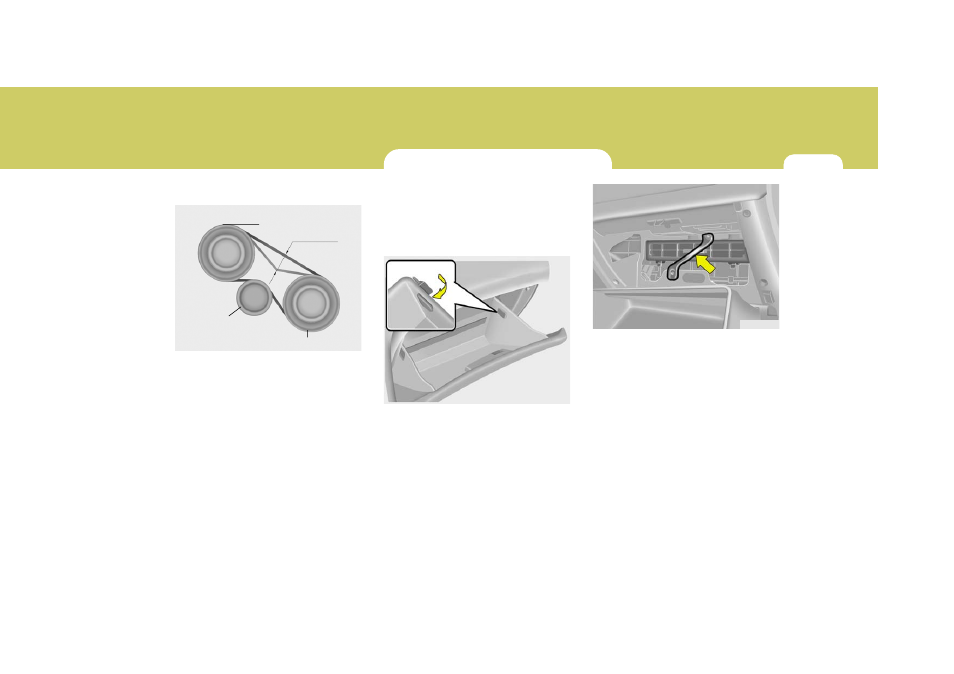

CRANK PULLEY
G140D01A
A/C
TENSION PULLEY
When the air conditioning is being used regu-
larly, the compressor drive belt tension should
be checked at least once a month with the
engine turned off.
To check the drive belt tension, press down on
the belt halfway between the engine crankshaft
and compressor pulleys. Pressing with your
finger, you should not be able to deflect this belt
anymore than 1/3 of an inch. If you have the
instruments to check it, with a force of 22 lb.
(98N), the deflection should be 0.315 inches
(approx 8.0 mm). If the belt is too loose, have it
adjusted by your Hyundai dealer.
G140D01A-AAT
Checking the Compressor Drive Belt
0.315 in. (8 mm)
CHANGING THE CLIMATE CONTROL AIR
FILTER
HXD2096
B140E02E-AAT
(For Evaporator and Blower Unit)
The climate control air filter is located in front of
the evaporator unit behind the glove box.
It helps to decrease pollutants from entering the
car.
2. Remove the protective padding from the
mounting bracket.
3. Remove the mounting bolts with the socket
wrench, and then detach the mounting bracket.
1. Open the glove box and remove the adjust-
ing pins on both sides of the glove box.
HXD2097
