Inspect consumables – Hypertherm RT60 Retrofit Torch User Manual
Page 44
MAINTENANCE AND PARTS
RT60 / RT60M
Operator Manual
5-3
0

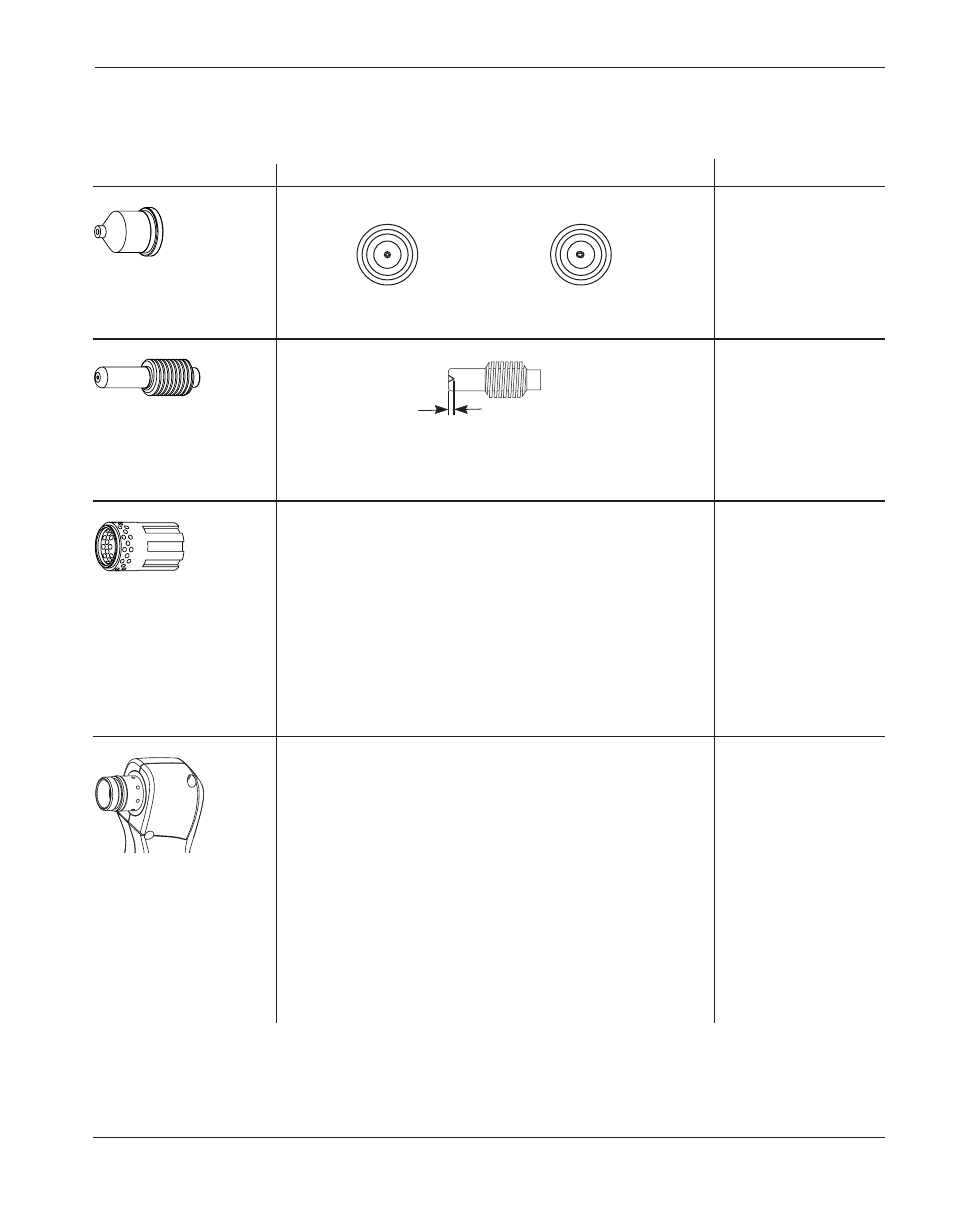

Inspect Consumables
Nozzle
Center hole
Good
Worn
Replace
Roundness of through hole
Center surface
Maximum pit depth
Replace
1/32 inch (0.8 mm)
Electrode
Part
Check For
Action
External surfaces
Damage or debris
Replace
Central bore (I.D.)
Does electrode slide easily?
Replace
Gas holes
Blocked holes
Replace
Swirl Ring
External surfaces
Damage or wear
Replace
Dry surface
Apply a thin film
of Hypertherm
grease (Part No.
027055)
Torch O-ring
Max.
1/32 inch
(
0.8 mm)
