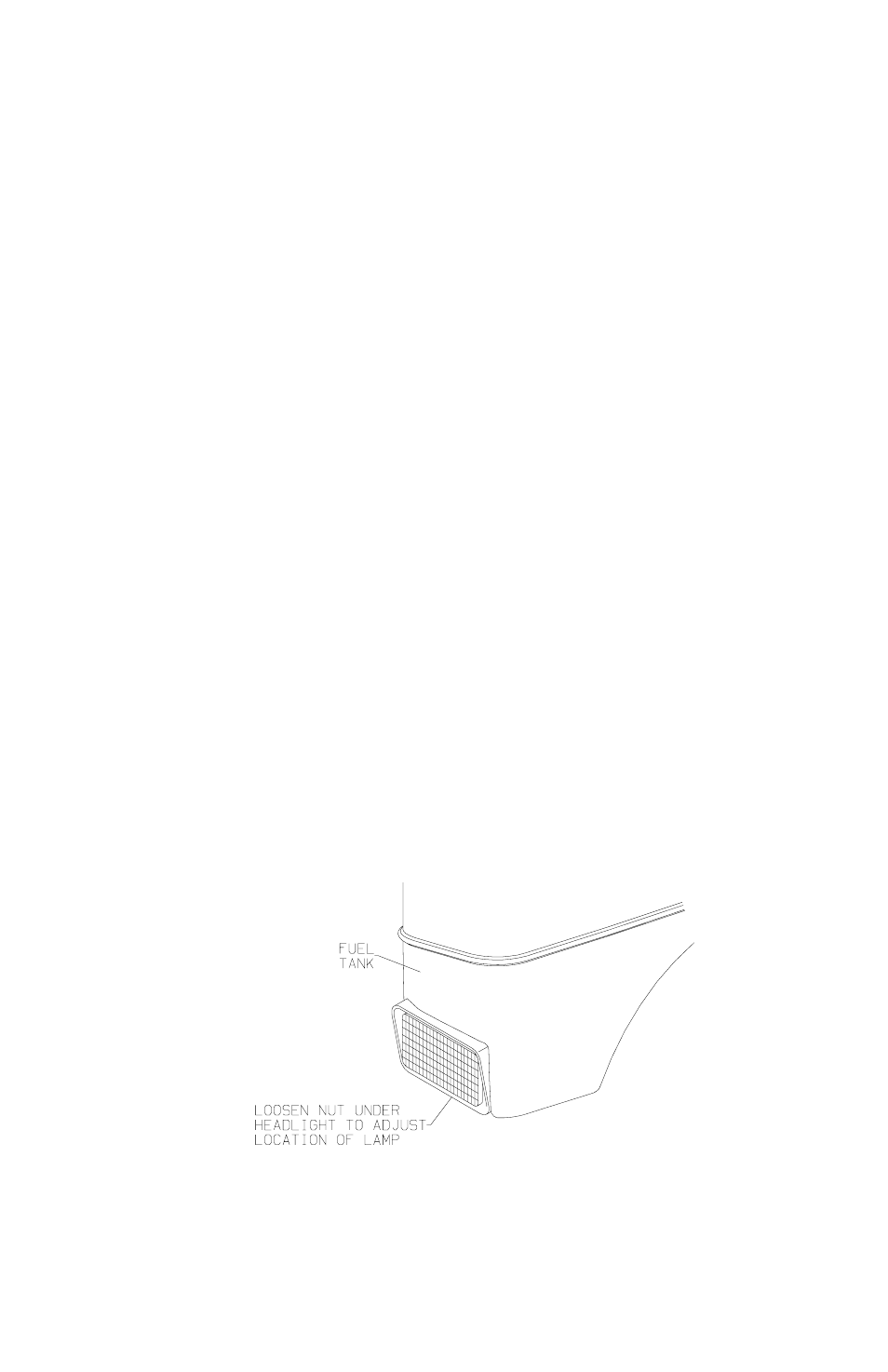

HEADLIGHT ADJUSTMENT:
1.
Loosen the 1/2” retaining nut underneath the
headlight and slide the headlight forward out of
the fuel tank.
2.
Loosen the 1/2” nut on the “U” shaped
holding bracket and swivel the headlight vertically
to adjust the height of the beam. Tighten the
bracket nut.
3.
Replace headlight in fuel tank.
4.
Swivel the headlight horizontally to illuminate the
desired area and tighten the headlight retaining
nut.
