When installing the knobs, align the “D-shaped” opening on the
back of the knob with the end of the valve shaft. Carefully push
the knob on until it stops.
Put the remaining knobs on the left valve shafts.
•
•
Setting Up Your Range
Grates

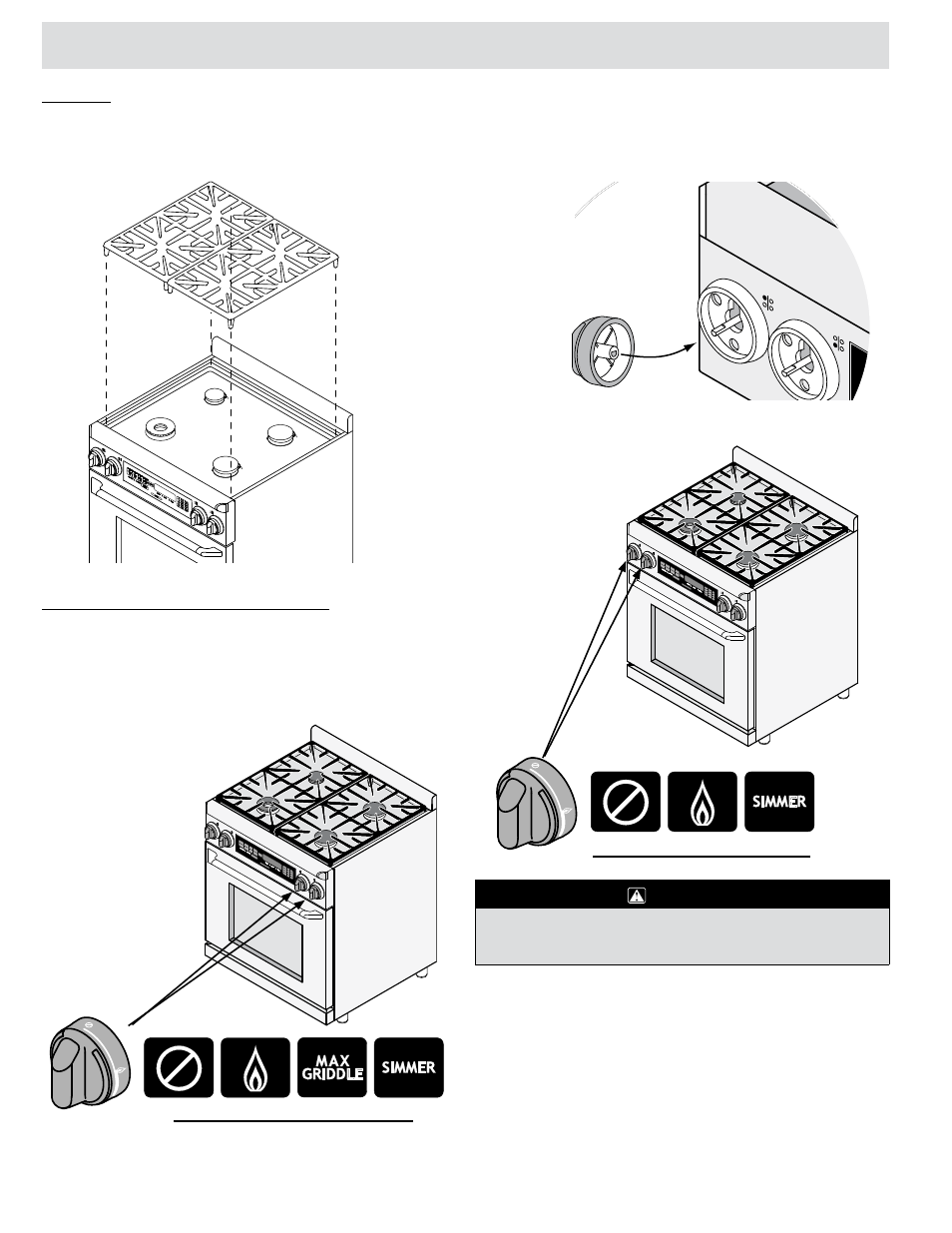

Gently set the grates on top of the spill tray. Put the legs of each
grate into the corresponding dimples.
Installing the Burner Knobs
There are two different types of knobs for the range. The knobs
for the right burners have the words “MAX GRIDDLE” on them.
Put the knobs with “MAX GRIDDLE” written on them onto the
right valve shafts. •
Icons on Right Burner Knobs
CAUTION
Installing the range knobs in the wrong position may result in
damage to the griddle included with the range. The knobs for
the right burners are marked with the maximum griddle settings.
Icons on Left Burner Knob
