PLANNING
GUIDE
Web: http://www.Dacor.com
Corporate Phone: 800-793-0093
Specifications are subject to change without notice.
See installation instructions for additional details.
5.1
30” Wide,
Epicure™ Range
EGR30
1/2
27" (686mm)
26" (660mm)
28 1/2" (724mm)
35 3/4"
(908mm)
to
37”
(940mm)
Finished Side Panel
24 3/8" (619mm) Rear of Control Panel/Oven Door
Face of Control Panel/Oven Door
Front Edge of Bullnose
Handle
6” (152mm) Backguard
When Backguard and
Side Panels are
removed, the overall
depth decreases
by 1" (25mm)
Accessory 3” (76mm) Side Panels
(Dacor Model No. AESP03)
1 9/16"
(40mm)
EGR30

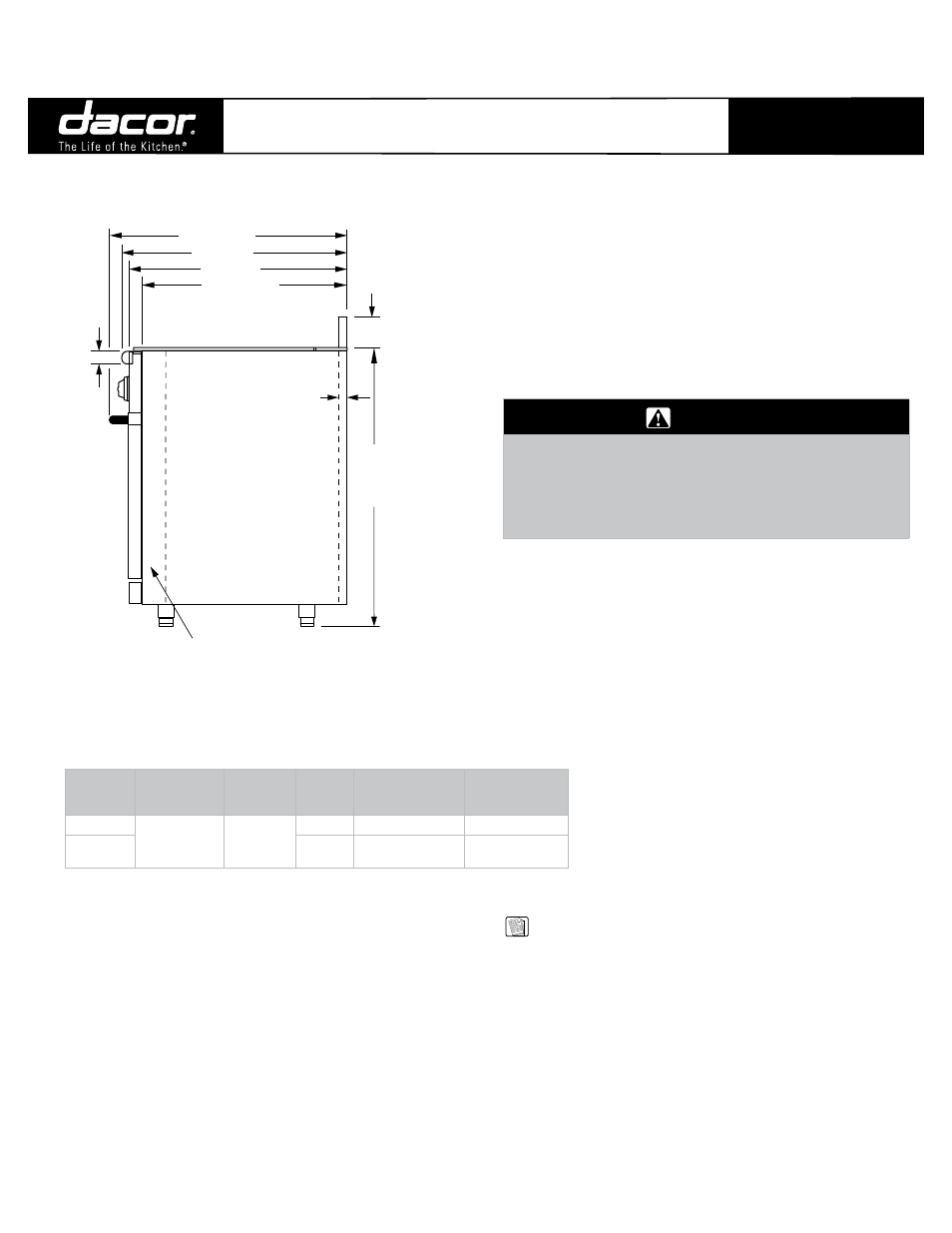

OvERALL DImENsIONs
sIDE vIEW
NOTES:
1. Utilities may be located in the lower left corner of
the adjacent right cabinet. (Recommended)
2. Contact your local building department to verify
compliance with local code interpretation.
3. Dacor rear top trim (part #26793; shipped with unit)
must be used if backguard and side panels are
removed.
4. See the Combination Installation (CI) section if
installing with a downdraft.
Revised
07/30/08
Dacor
®
Model No.
Electrical
Circuit
Required
Total
Connected
Load
Gas
Type
Manifold
Pressure
Min. Gas Supply
Pressure
EGR30 120 Vac,
60 Hz,
15 Amp
0.75 kW
(6Amp)
Natural 5” Water Column 6” Water Column
EGR30LP Liquid
Propane
10” Water Column 11” Water Column
waRNING
Observe all governing codes and ordinances during ◊
planning and installation. Contact your local building
department for further information.
This appliance must be installed in accordance with the
◊
accompanying installation instructions.
All tolerances +1/16” -0 (+1.6 mm, 0) unless otherwise noted.
