Groth 1400 - Manual (Page 9)

8

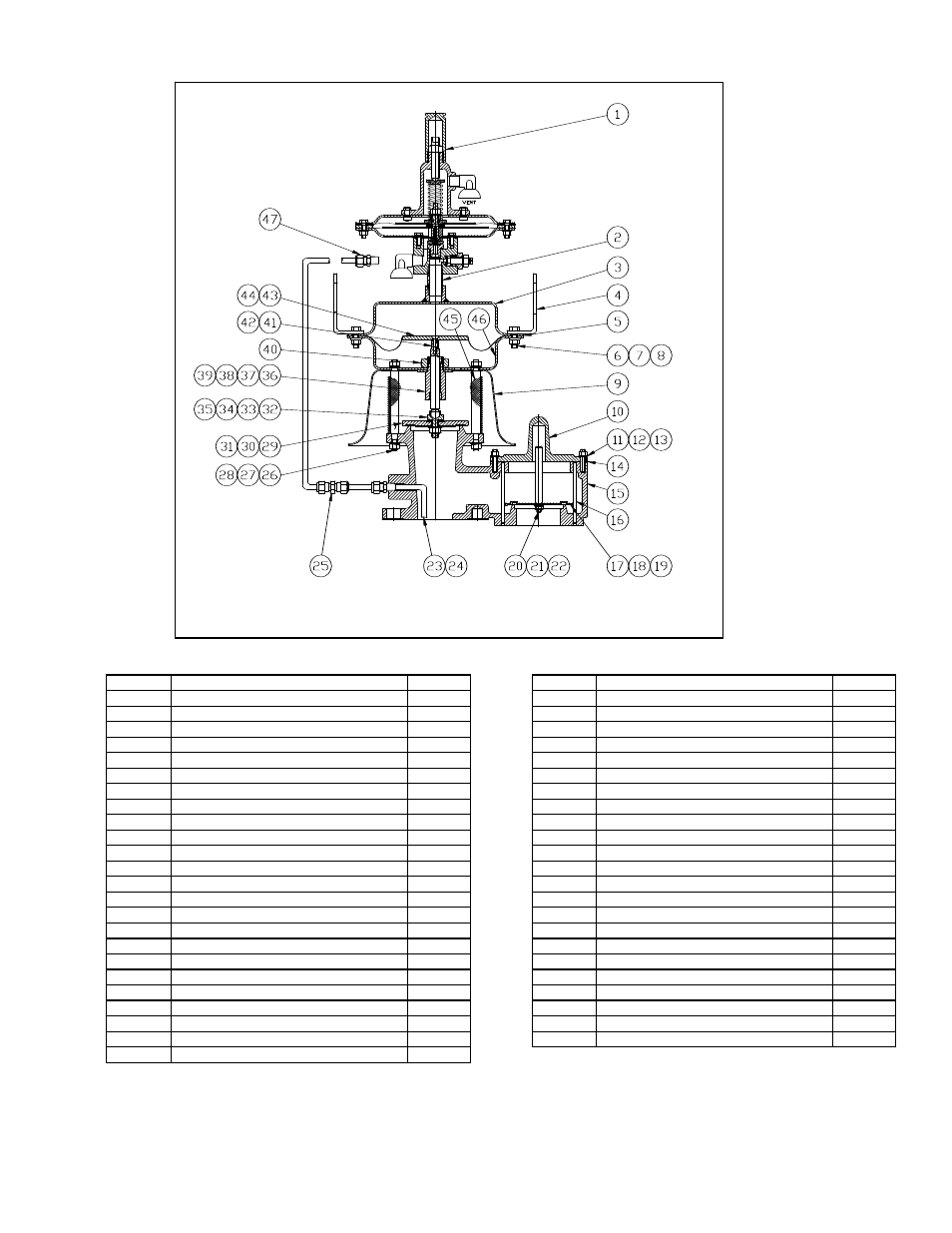

ITEM DESCRIPTION NOTE
1 Pilot Valve Assembly
2 Pipe Nipple
3 Upper Diaphragm Case
4 Lifting Eye
5 Gasket – Actuator 4
6 Hex Bolt
7 Hex Nut
8 Lock Washer
9 Weatherhood
10 Cover – Vacuum
11 Lock Washer
12 Hex Nut
13 Stud
14 Gasket – Cover 2
15 Body
16 Guide Rod – Vacuum
17 Pallet – Vacuum
18 Retainer Plate – Vacuum
19 Diaphragm – Vacuum 1
20 Stem – Vacuum
21 Hex Nut
22 Lock Washer
23 Tubing
24 Male Connector
ITEM DESCRIPTION NOTE
25 Connector
26 Weatherhood Post
27 Lock Washer
28 Hex Nut
29 Pallet – Pressure
30 Diaphragm, Pressure Pallet 1
31 Retainer Plate – Pressure
32 Swivel Fitting
33 Belleville Washer
34 Hex Nut
35 Seal - Guides 1
36 Stem Guide
37 Washer – Stem Guide
38 Hex Jam Nut
39 Bushing 3
40 Set Screw
41 Stem – Pressure
42 Screw
43 Support Plate
