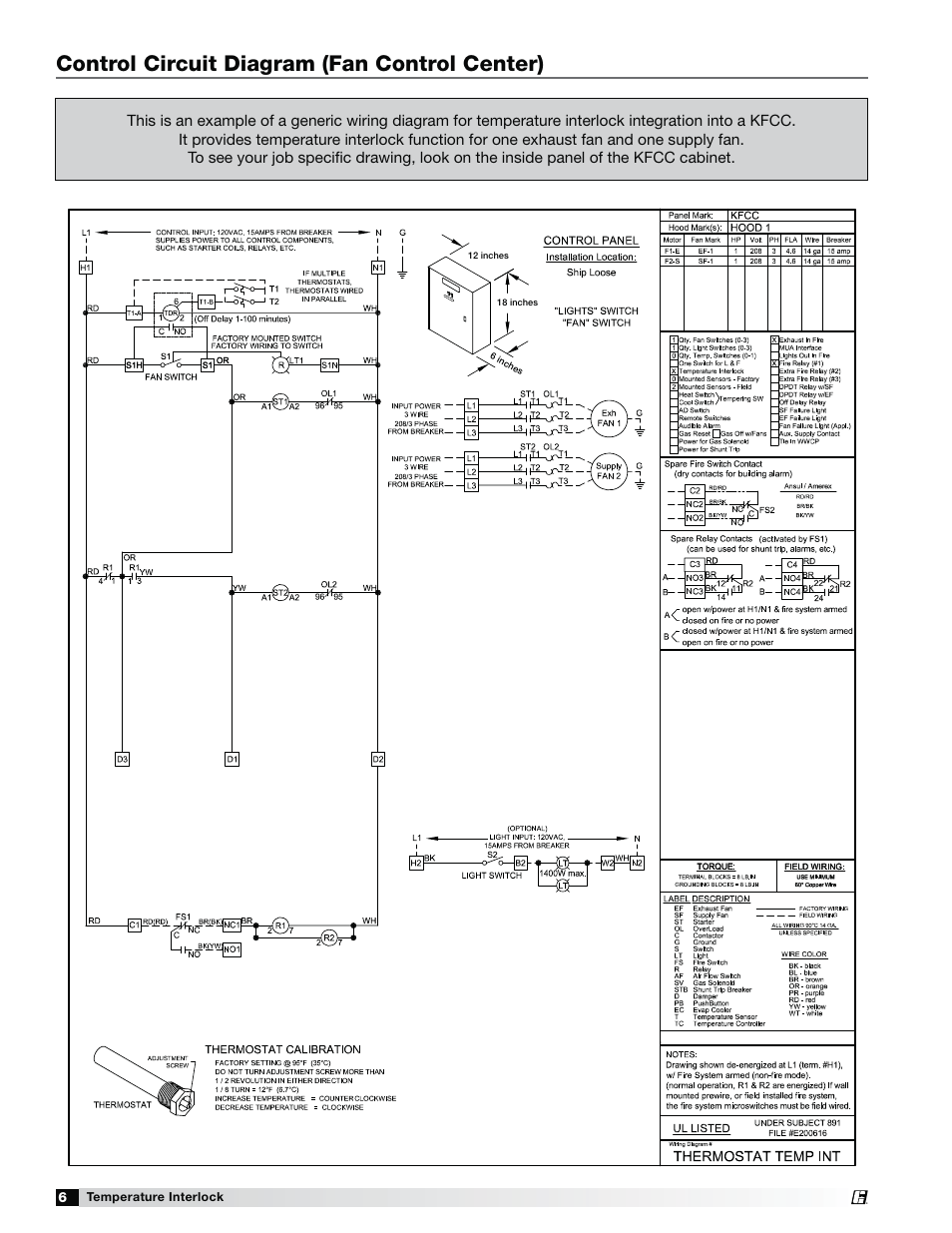

Control circuit diagram (fan control center) – Greenheck Temperature Interlock (471738) User Manual
Page 6
