Sidewall Propeller Fans 7
1. Fan Panel
2. Propeller
3. Drive Frame Channel (2)
4. Motor / Bearing Plate
5. Motor
6. Motor Pulley
7. Shaft Pulley
8. Fan Shaft
9. Bearings (2)
10. Belt
1
2
3
4
5 6 7
8 9
10
Exhaust
Airflow Airflow
Supply
1
2
3
4
5
6
7
8
9
10
11
Exhaust
Airflow Airflow
Supply
1. Fan Panel
2. Propeller
3. Drive Frame Channel (2)
4. Motor Plate
5. Motor
6. Motor Pulley
7. Shaft Pulley
8. Fan Shaft
9. Bearings (2)
10. Belt
11. Bearing Plate

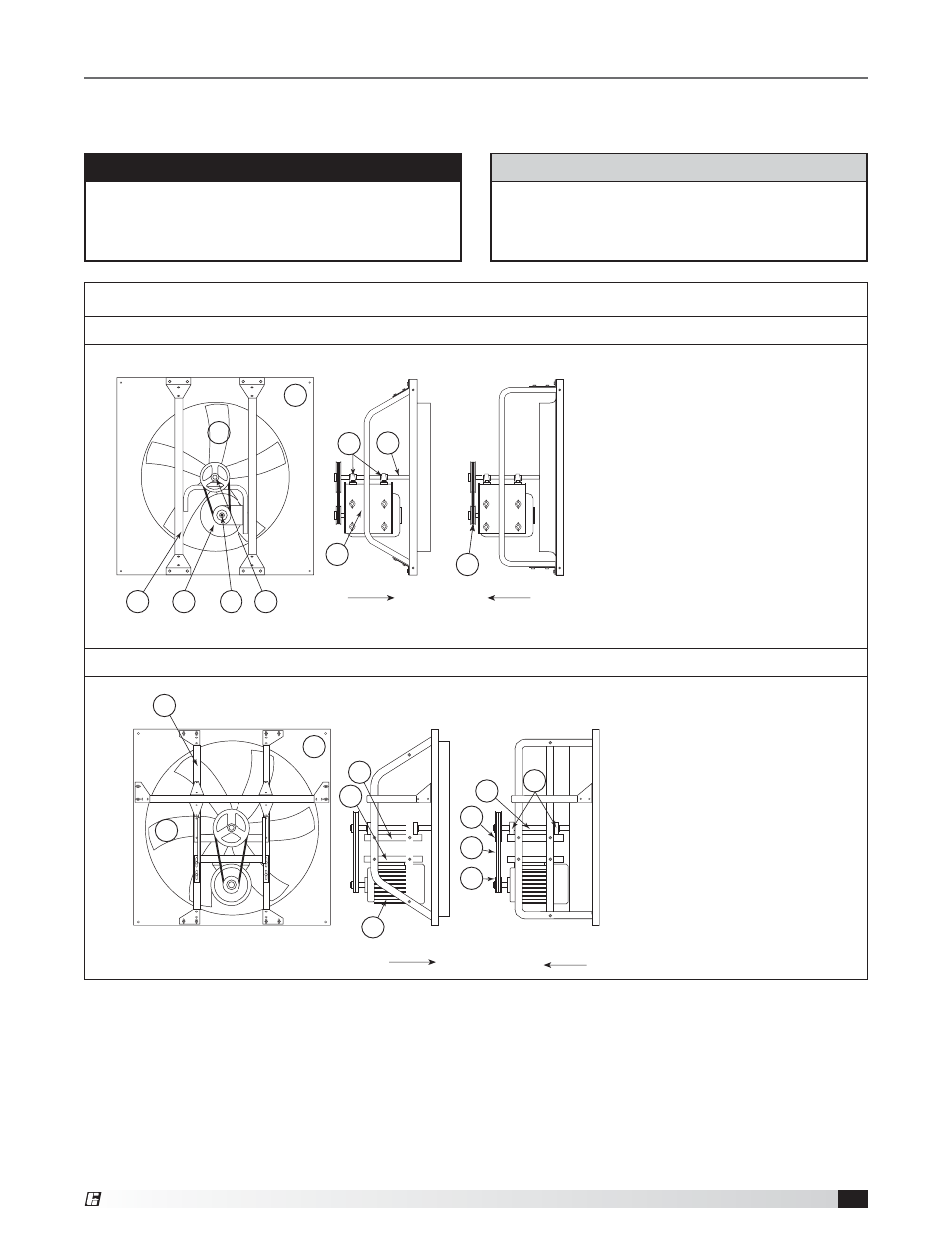

Parts List - Belt Drive
SBE-1, SBS-1, SBE-2 and SBS-2 (L and H propellers)
SBE-3, SBS-3, SBCE, SBCS, and SBCR (L and H propellers)
Parts List
CAUTION
A fan manufactured with an explosion resistant
motor does not certify the entire unit to be explosion
proof. Refer to UL Listing Mark for the fans
approved usage.
CAUTION
La présence d’un moteur antidéflagrant sur un
ventilateur ne garantit pas que tout l’appareil est
antidéflagrant. Pour connaître les emplois autorisés
de l’appareil, voir son marquage de conformité UL.
Each fan bears a manufacturer’s nameplate with model number and serial number embossed. This information
will assist the local Greenheck representative and the factory in providing service and replacement parts. Before
taking any corrective action, make certain unit is not capable of operation during repairs.
®
