Mounting
The ERM is shipped with a mounting kit containing
four hanging brackets. These brackets will support
the ERM in either the vertical or horizontal position for
design flexibility.
To hang the ERM:
1. To remove the cassette from the cabinet, remove
the access panel and unplug the wheel drive
motor at the electrical receptacle in the cabinet.
2. Replace the access panel before mounting to
ensure squareness.
3. Use the brackets as shown in Figure 1 to secure
the ERM. These brackets are designed for 3/8 in.
threaded hanging rods.
4. To reinstall the cassette in the mounted ERM
cabinet, align the cassette sliders with the
channels in the cabinet and slide the cassette in
place. Replace access panel when finished.
IMPORTANT
ERM must be installed such that the energy wheel
cassette slides in and out of the cabinet parallel to
the floor.
NOTE
To reduce unit weight for handling purposes, the
cassette may be removed from the cabinet.
DANGER
Electric shock hazard. Can cause injury or death.
Before attempting to perform any service or
maintenance, turn the electrical power to unit to
OFF.
CAUTION
Use caution when removing access panels or other
unit components, especially while standing on a
ladder or other potentially unsteady base. Access
panels and unit components can be heavy and
serious injury may occur.
WARNING
Do not operate Energy Recovery Module without
duct filters or screens installed. The filters and
screens prevent the entry of foreign objects such as
leaves, birds, etc.

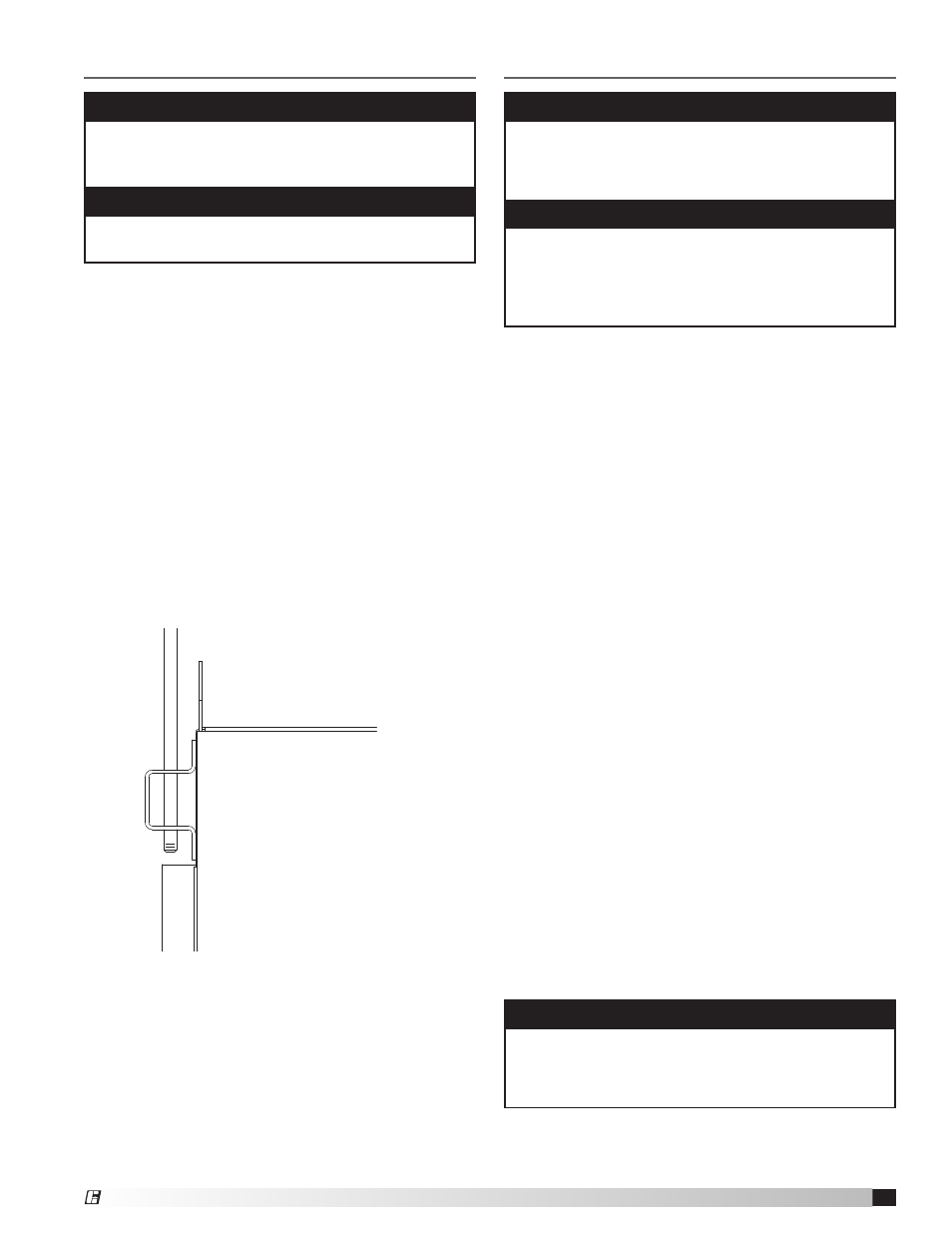

Figure 1
Start-Up
Every installation requires a comprehensive start-
up to ensure proper operation of the unit. As part
of that process, the following information must be
recorded. Should an issue arise which requires factory
assistance, this important information will allow unit
experts to provide quicker resolve. Qualified personnel
should perform start-up to ensure safe and proper
practices are followed.
Unit Model Number _________________________
(e.g. ERM-36H-15)
Unit Serial Number _________________________
(e.g. 04C99999 or 10111000)
Energy Wheel Date Code _________________________
(e.g. 0450)
Start-up date _________________________
(MM/DD/YYYY)
Start-up Personnel Name _________________________
Start-up Company _________________________
Phone Number _________________________
The ERM models contain a total energy recovery
wheel. The wheels are inspected for proper
mechanical operation at the factory. However, during
shipping and handling, shifting can occur that may
affect wheel operation. The wheel is accessible
through the cassette access panel.
Turn the energy recovery wheel by hand to verify
free operation. The wheel should rotate smoothly at
approximately 50-60 rpm and should not wobble. If
the wheel does not rotate when power is applied, it
may be necessary to adjust excessively tight diameter
air seals.
3 Energy Recovery Modules
®
