To connect the VERSAstream ™ VS1610 kit Multi-link Series aggregator/regenerator,
refer to Figure 26 and follow these steps:
1. Two power supplies are provided. Use of the second power supply is strongly
recommended to assure uninterrupted monitoring. Connect both power supply
barrel connectors into the power 1 and 2 ports, respectively, of the VERSA-
stream
™ . Plug the power supplies into the external power source, furthermore,
connecting the second power supply to a different external power source circuit
than the first power supply eliminates power as a single point of failure. The
POWER 1 and 2 LEDs illuminate indicating POWER 1 and 2, respectively, are
on. Either LED not illuminated indicates a defective power source and immediate
replacement is required to insure redundant power integrity.
2. Connect network cables to the VERSAstream ™ NETWORK RJ45 ports. The NETWORK
RJ45 Link LED is solid green indicating link has been established between the
respective NETWORK port and network device. The LED Display Code table deci-
phers the RJ45 jacks with integrated LEDs that display line status and line speed
of each port. The LED is flashing green when data is passed from the respective
network device to the network port.
3. Connect analysis devices to the VERSAstream ™ MONITOR ports. Two DRL494–2m
cables are provided to connect analysis SC ports to the MONITOR duplex-LC ports.
The LED associated with each duplex-LC jack indicates when light signal has
been detected on the respective Rx MONITOR port. The MONITOR RJ45 ports with
integrated LEDs display line status and line speed of each port as deciphered in
the The LED Display Code table. The LED is flashing green when data is passed
from the respective MONITOR device to the MONITOR port.
4. Two DRL366-1 cables are provided, connect one DRL366-1 cable from the
DAISY OUT port of one VERSAstream ™ unit to the DAISY IN port of the second
VERSAstream ™ unit. Connect the other DRL366-1 cable from the DAISY IN port
of the first unit to the DAISY OUT port of the second unit.
1,000 Mbs
100 Mbs
10 Mbs
Green
Orange
OFF

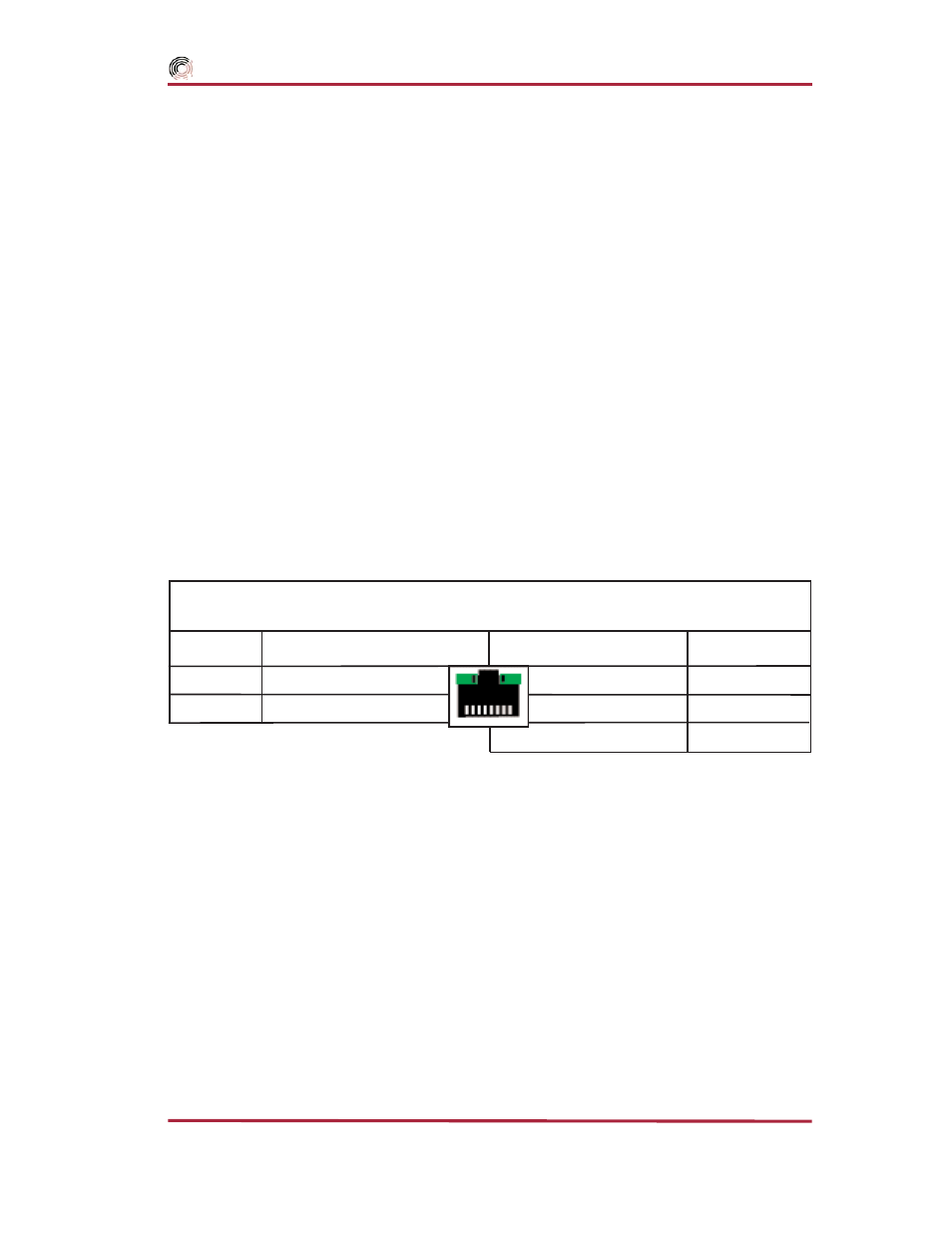

LED Display Code
Link
Data
Code Left LED
Solid Green
Flashing Green
Code
WITH LINK OR DATA
Right LED
