SPAN and Multi-Link Aggregators/Regenerators • USERguide
34
VS-1028 with Taps Application —
shown in Figure 24, focuses
on a typical VERSAstream ™ VS-1028 Multi-Link Aggregator application deployed
with Datacom Taps to combine traffic from different network segments and output
the aggregated data to either a single network tool or two connected monitoring
devices. This VS-1028 is similiar to other VERSAstream
™ Multi-link series installations:

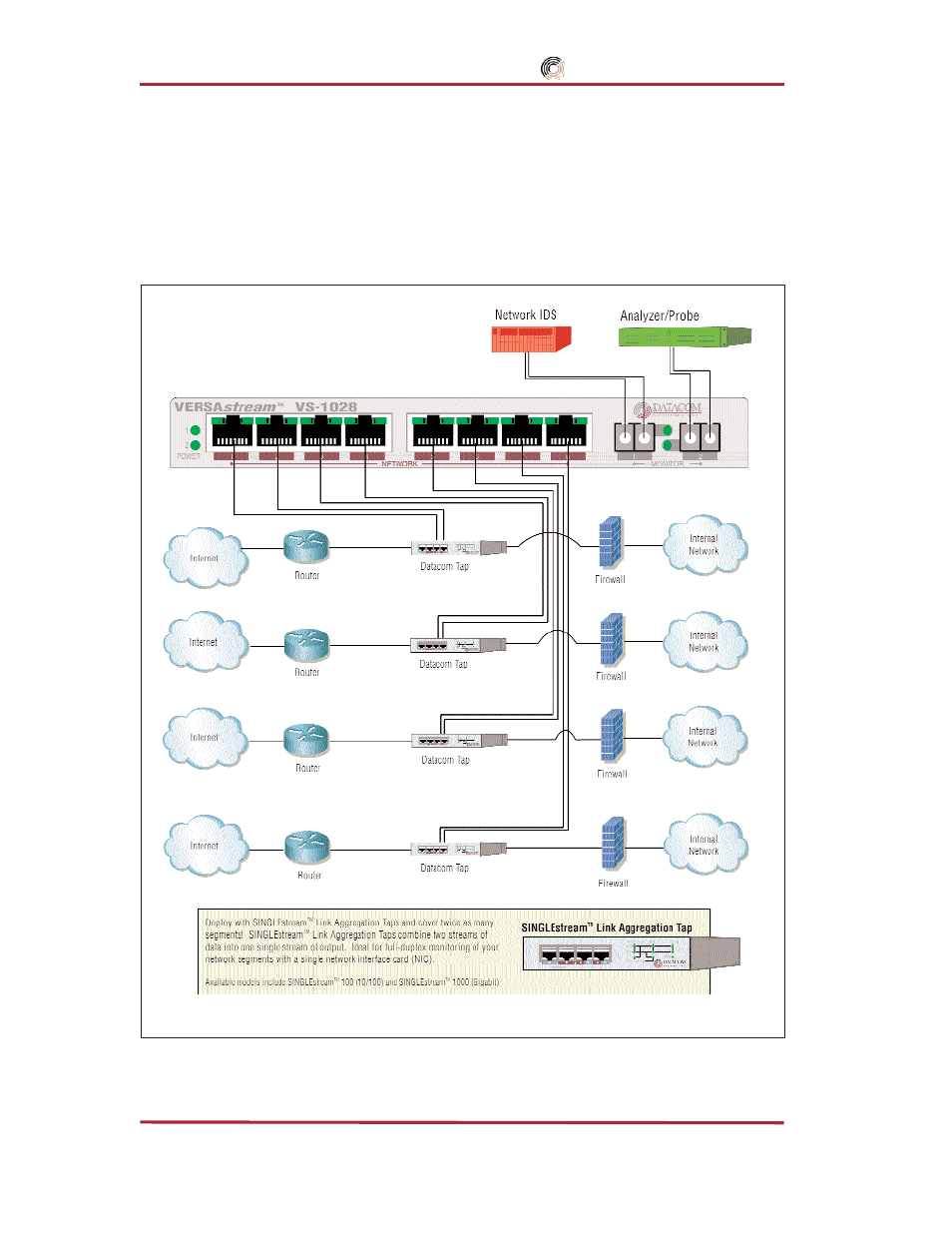

Figure 24 - VS-1028 with Taps Application
