RAID User’s Guide
3
3. BIOS Configuration
A. Enter the BIOS setup program by pressing the key during the POST
(Power-On Self Test ).
B. Setting ICH7R RAID item in BIOS
1) Select the OnChip IDE Device item form Integrated Peripherals menu.
2) Switch the SATA Mode option to [RAID].
C. Setting Sil3132 RAID item in BIOS
1) Select the Onboard Device item form Integrated Peripherals menu.
2) Switch the Sil3132 SATA Controller option to [RAID Mode].
D. Setting RAIDm1 item in BIOS
1) Select the Onboard Device item form Integrated Peripherals menu.
2) Switch the PATA RAID VSC6110 option to [Enabled].
E. Save the BIOS setting and exit the BIOS setup program.
4. RAID Configuration Utility
1) Intel Matrix Storage Manager Option ROM Utility
A. Setting RAID 0
a. When the system powers on, the following information will appear on screen:
Press the to enter Configuration Utility.

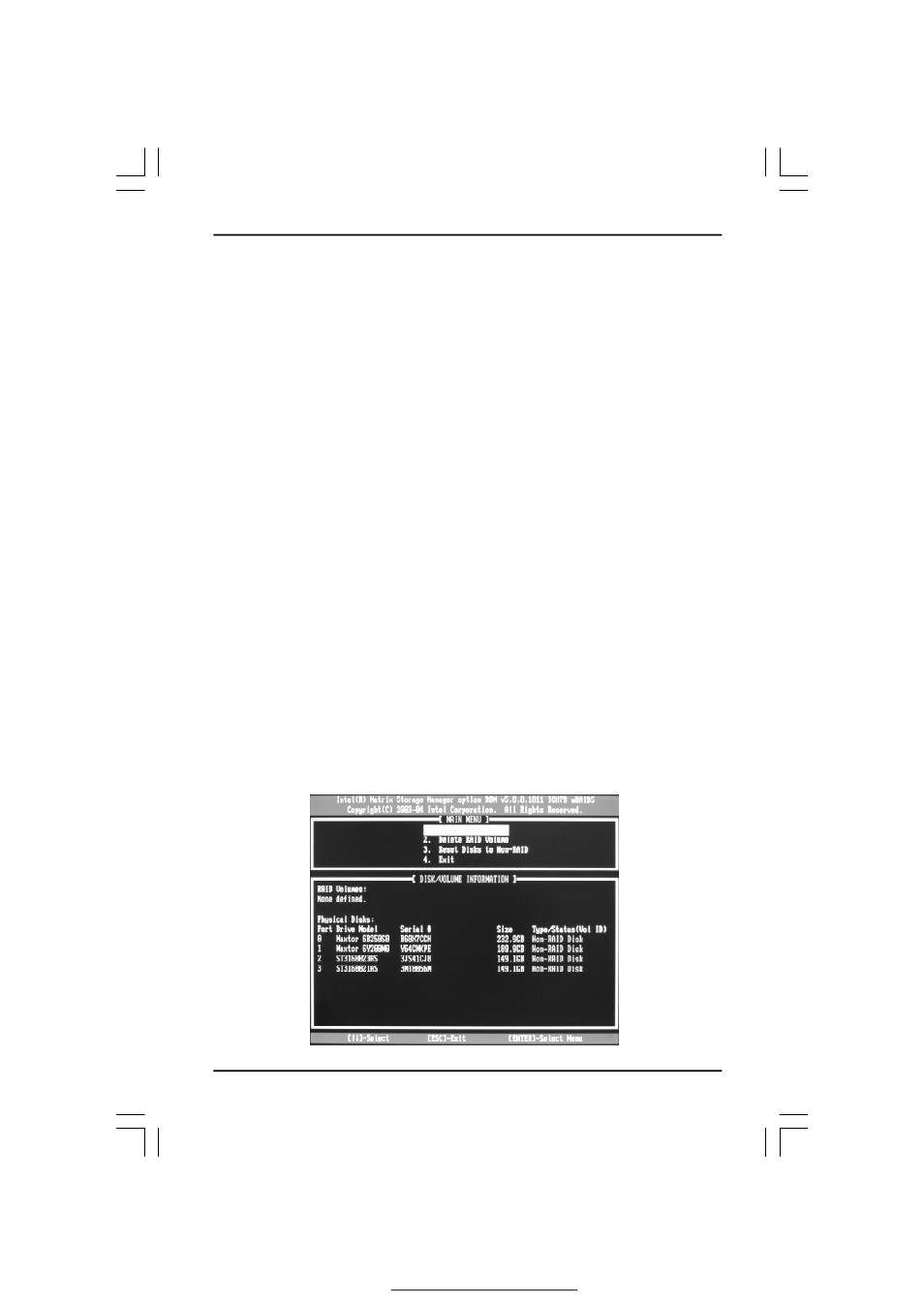

At this moment, press + to enter Main Menu:
