Foxconn 975X7AA-8EKRS2H-RAID - Manual (Page 11)

RAID User’s Guide
9
D. Setting RAID 10(RAID0+1)
a. To utilize RAID 10 function, four SATA hard disks should be installed.

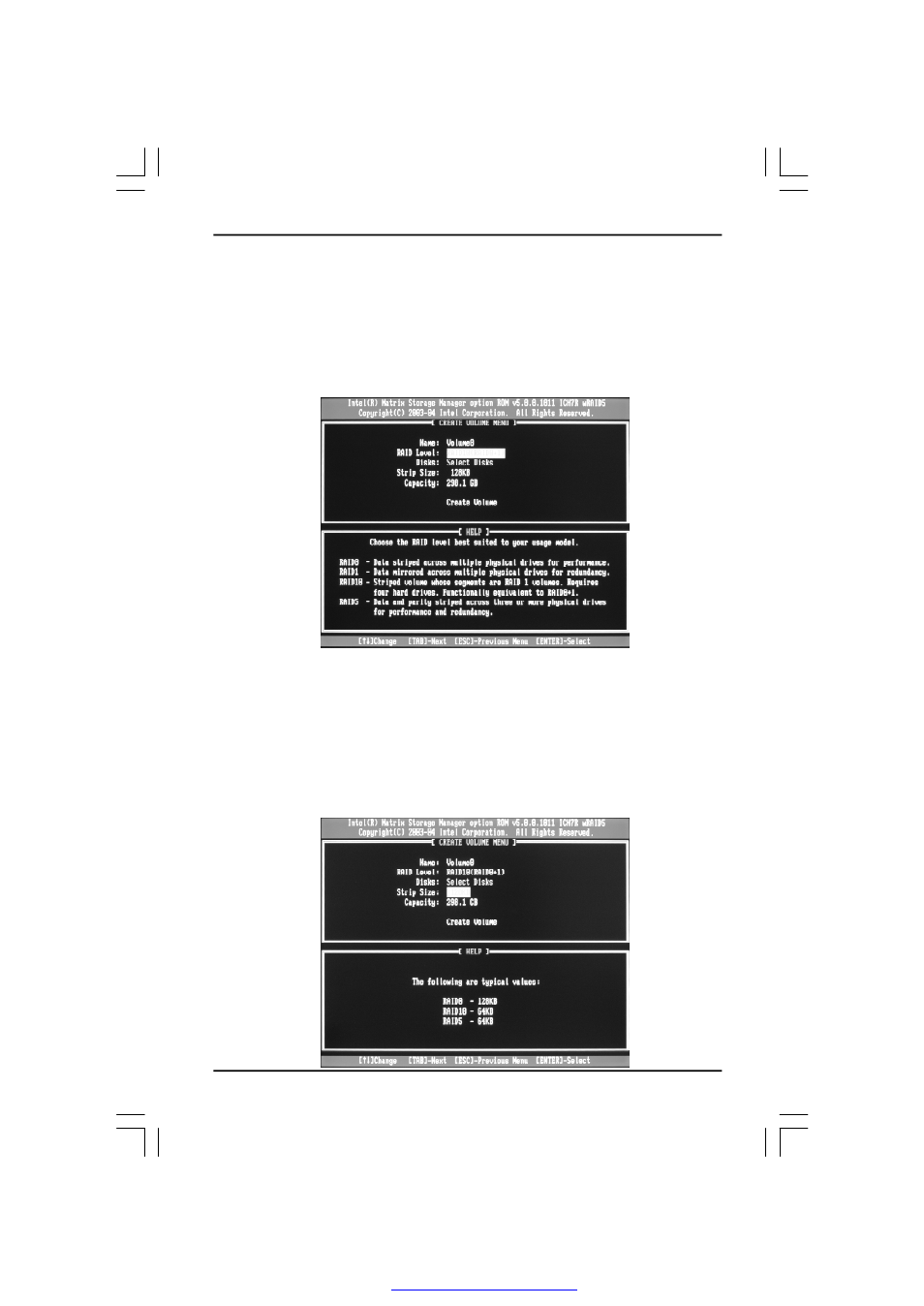

b. Choose Create RAID Volume and press to enter. Press to
switch to RAID Level item, and then use Up and Down arrow keys to select
RAID10(RAID0+1), pressing confirms.
c. Use Up and Down arrow keys to select desired strip size when enter Strip
Size menu. The available values range from 4KB to 128KB. The strip value
should be based on the planned drive usage. Some suggested selections
are listed below. The default selection is 128KB.
16K_Best for sequential transfer
64K_Good general purpose strip size
128K_Best performance for most desktops and workstations
