4 install other internal connectors, Power connectors, Pin atx power connector : pwr1 – Foxconn M7PMX Series User Manual

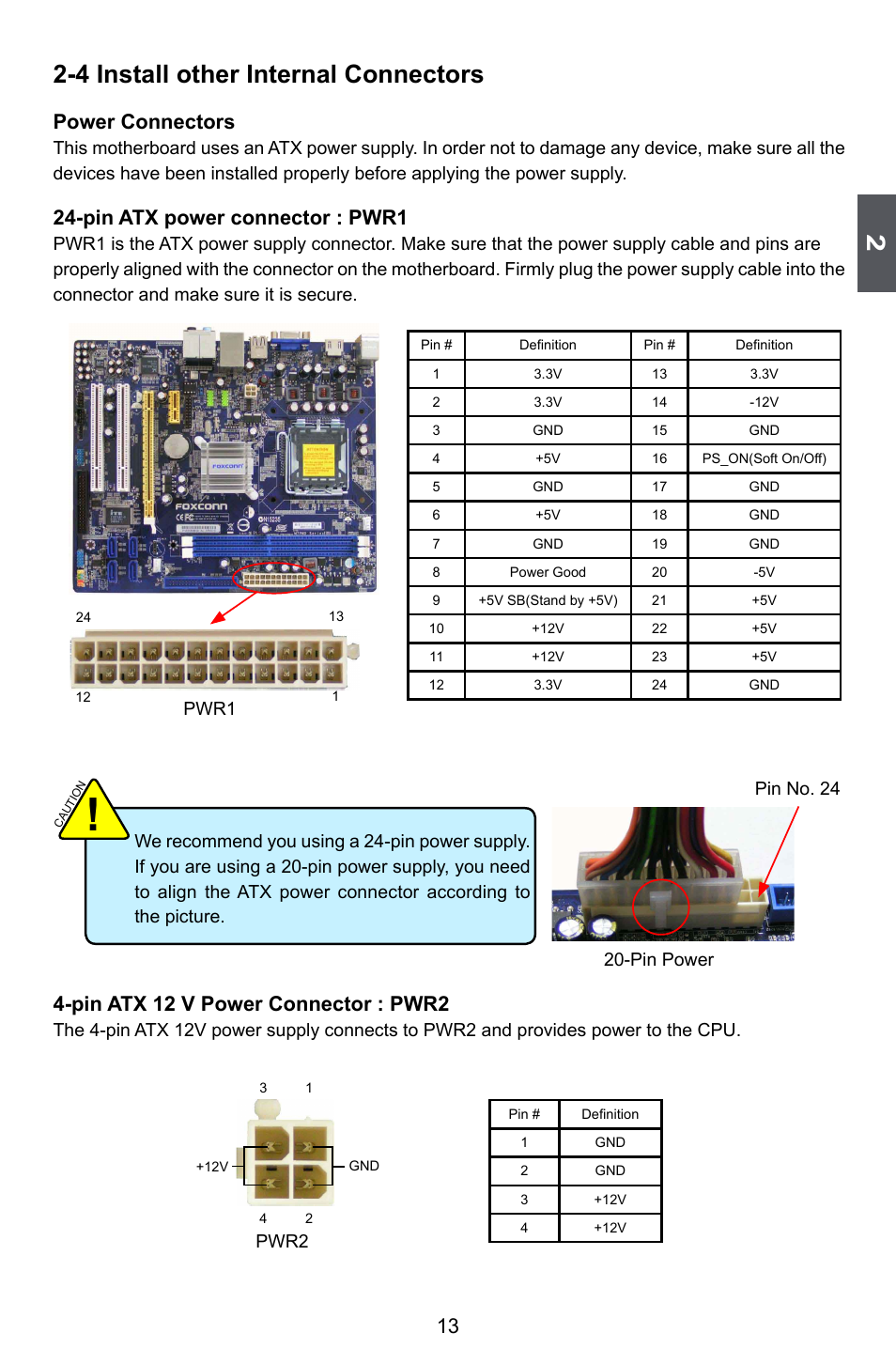

Page 20: Pin atx 12 v power connector : pwr2, Pwr1, Pin power pin no. 24
