Chapter 2 Installation Instructions

10

Memory

This motherboard includes two or four 184-pin slots with 2.6 V for DDR. These

slots support 256 Mb, 512 Mb and 1 Gb DDR technologies for x8 and x16 devices,

and support maximum memory bandwidth of 3.2 GB/s in Single-Channel or Dual-

Channel asymmetric mode, or 6.4 GB/s in Dual-Channel interleaved mode, as-

suming DDR 333/400. You must install at least one memory bank to ensure

normal operation.

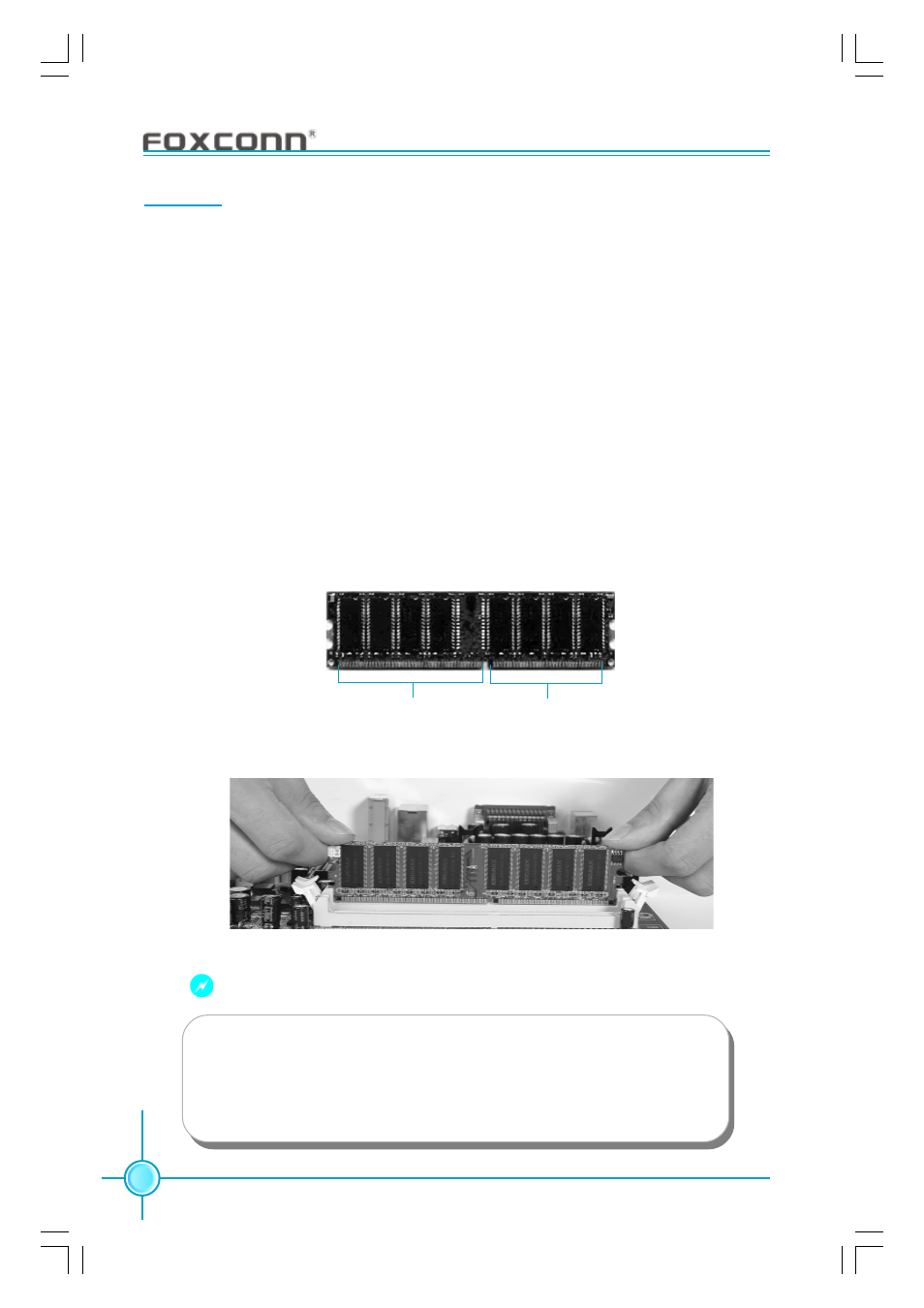

Installation of DDR Memory

1. There is only one gap near the center of the DIMM slot, and the memory

module can be fixed in one direction only. Unlock a DIMM slot by pressing the

module clips outward.

2. Align the memory module to the DIMM slot, and insert the module vertically

into the DIMM slot.

3. The plastic clips at both sides of the DIMM slot will lock automatically.

Warning :

104 Pins

80 Pins

Be sure to unplug the AC power supply before adding or removing

expansion cards or other system peripherals, especially the

memory devices, otherwise your motherboard or the system

memory might be seriously damaged.
